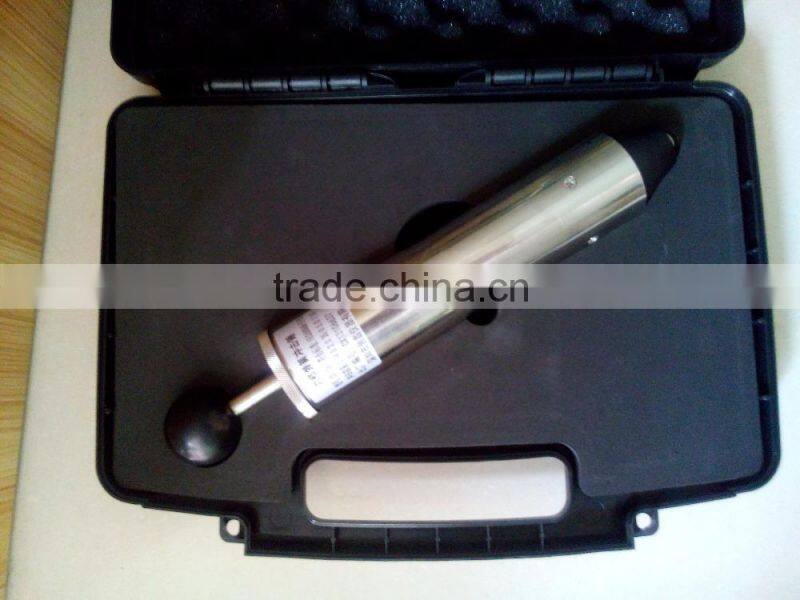

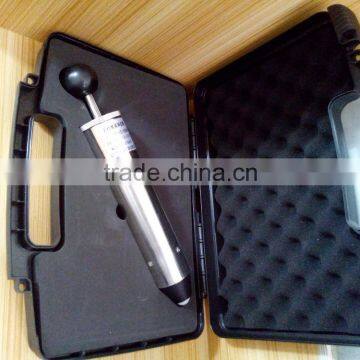

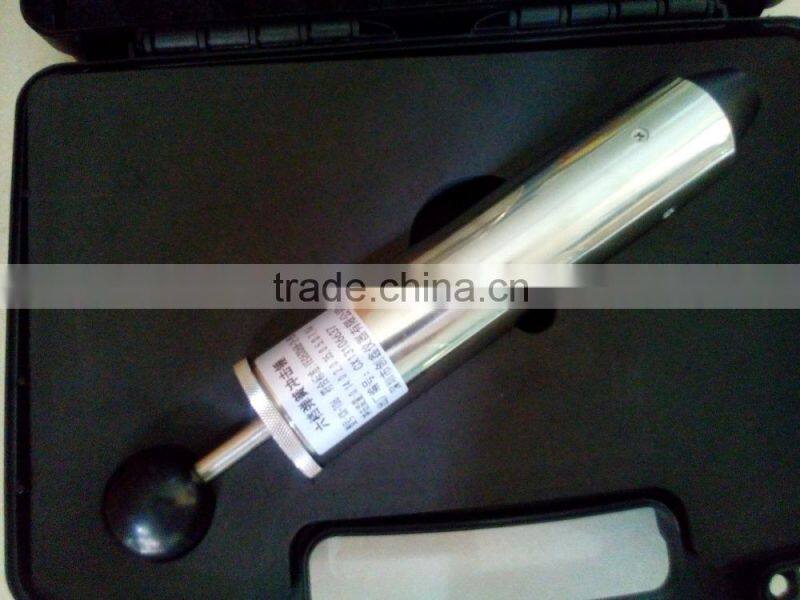

Iec60068-2-75 Spring Impact Test Hammer For Durability Testing

Iec60068-2-75 Spring Impact Test Hammer For Durability Testing thumbnail-3

Iec60068-2-75 Spring Impact Test Hammer For Durability Testing photo-1

Iec60068-2-75 Spring Impact Test Hammer For Durability Testing photo-2

Iec60068-2-75 Spring Impact Test Hammer For Durability Testing photo-3

US$ 200 - 550 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

CX-T08

Contact Supplier Request Quote Chat Now

Shenzhen Chuangxin Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CX

Model Number CX-T08

Power Electronic

Usage Impact Testing Machine

IEC60068-2-75 Single Impact Spring Hammer IK01 to IK07

Key words: impact Spring Hammer,Spring hammer, Impact Hammer

Introduction:

This Impact Spring Hammer required by many Standards to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance to IEC, EN, UL, CSA and other international Standards.

Adjust the impact severity by rotating the knurled cap until the desired energy-value is displayed. Pull the knob slowly out of the device until it locks in place. If moved too fast, the clamp may skip its arrester and will lock at its way back when the pulling-force declines. Hold the device horizontally at it’s housing tube and press the (black) release cone to the specimens plane of impact. The strike is automatically released when the release force threshold is reached.

Application:

Impact hammers are used to check the durability of enclosures for electrical appliances of other electronic products.If damage occurs from the Impact Hammer test .Accessibility probes can be used to measure the extent or severity of the damage.The Impact Hammer simulates the mechanical impact to which electrical equipment may be subjected.

This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks.The impact tester made of stainless steel.

Types:

IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10
0.14J	0.2J	0.35J	0.5J	0.7J	1J	2J	5J	10J	20J

Technical Parameters:

Length	211mm
Weight	1250g
OD	50mm
Hammer Weight	60g
Hammer radius	10mm
The release force of impact	<10N

Single spring hammer

0.14J,0.20J,0.35J,0.50J,0.70J,1.0J 2.0J Selection

Universal spring

impact hammer(adjustable imapct hammer)

0.14, 0.20,0.35,0.50,0.70 and 1J

Product Details

Body: Includes release mechanism and striking element guide, mass 1250 g.
Striking element: With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g
Release Cone: mass 60 g, 10N release force
Impact Force: Single force and adjustable models available in impact energies of 0.14,0.20, 0.35, 0.50, 0.70 and 1.0 J,2.0J
Custom padded carrying case included.
Model:CX-T1:Single impact force models(0.2J,0.35J,0.5J,0.7J,1J,select)
Model:CX-T2:Impact force:2J±0.1J
Model:CX-T6:Adjustable models available in impact energies of 0.14J,0.20,0.35,0.50,0.70 and 1.0J
