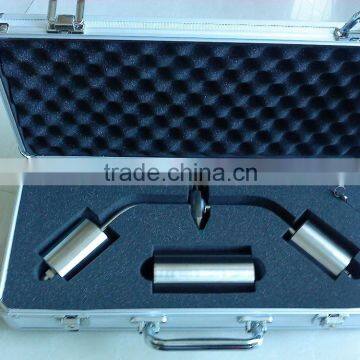

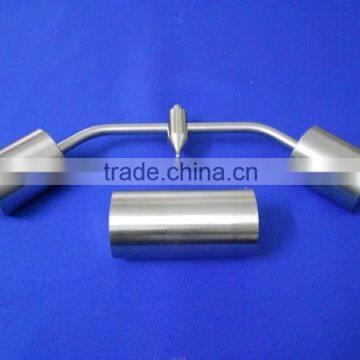

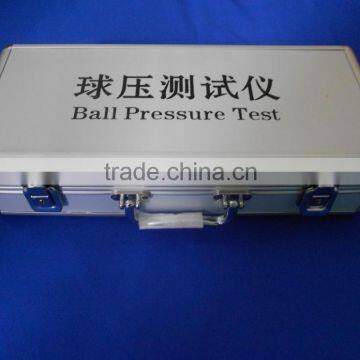

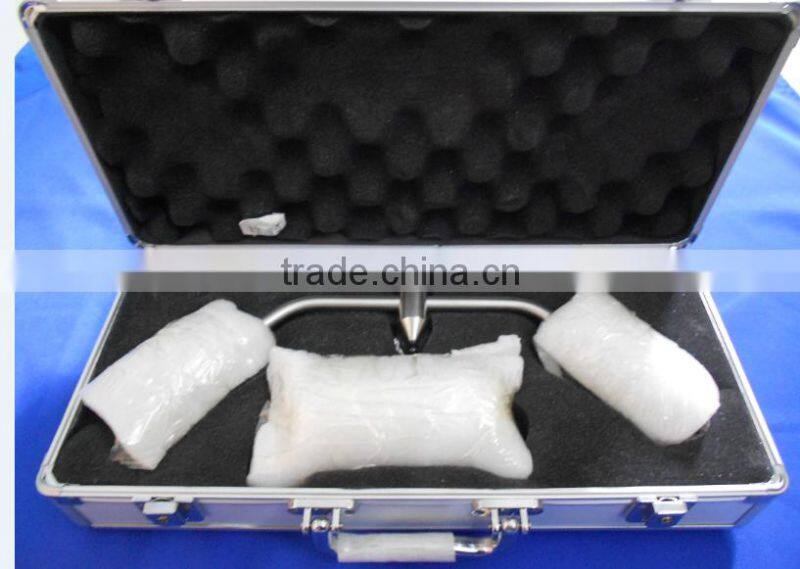

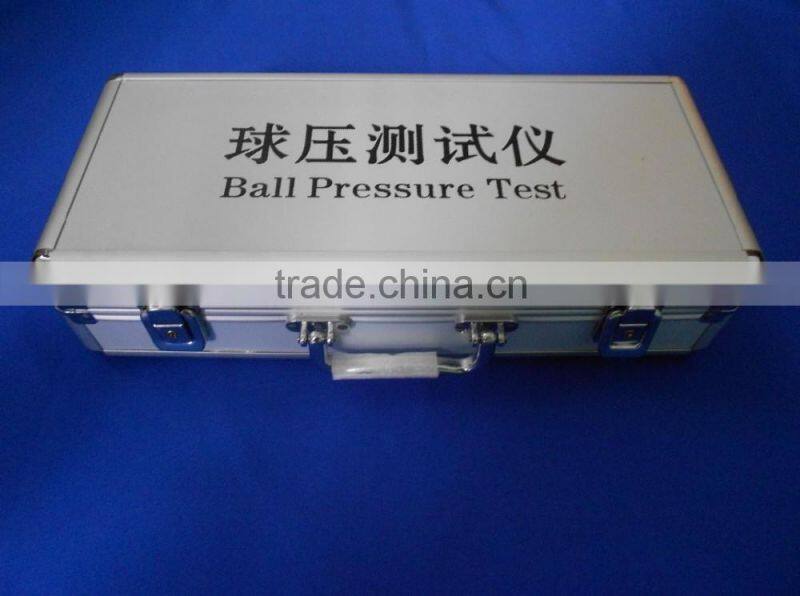

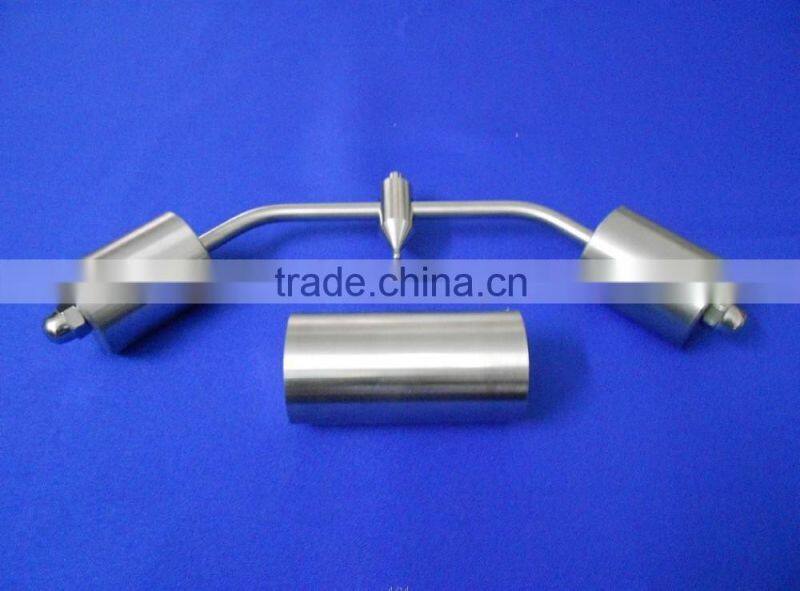

Laboratory equipment Test manufacturer IEC60695 Ball Pressure Apparatus
Basic information:
Ball Pressure Tester is used for testing parts of non-metallic materials for resistance to heat. It is applicable to electrotechnical equipment, its subassemblies and components, and to solid electrical insulating materials except ceramics.
Usage:

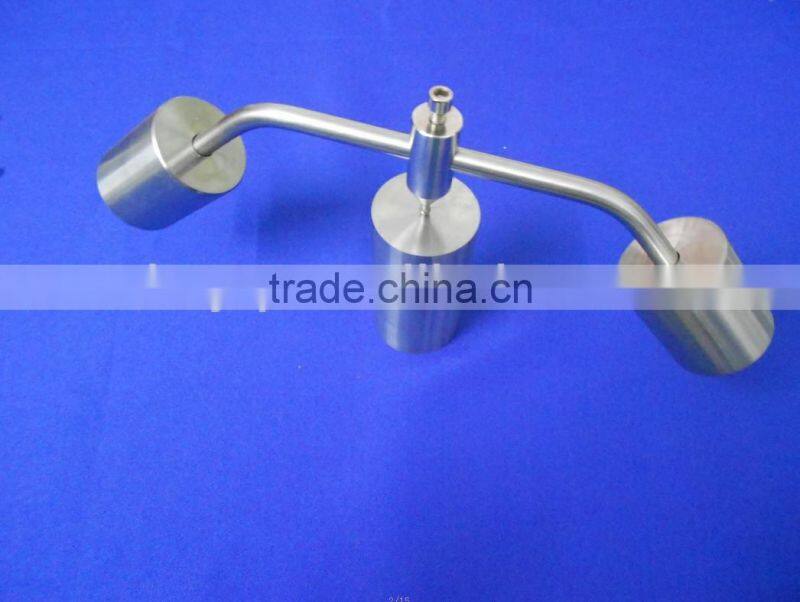

In this test, a conditioned specimen is placed on a preheated support and subjected to a force of 20N applied through a 5mm steel ball. The test stand, specimen and loading device are then kept in an oven at an elevated temperature for an hour. After the hour, the loading device is removed from the sample, the sample is cooled and any indentation is measured. It is important to assure that the test stand has reached a stable elevated temperature as required by the test.
Ball Pressure Apparatus/Tester is the requirement ball (R2.5mm) and total test force 20N ± 0.2N ball pressure testing device, pressure level of the state and was placed in the heating chamber on the surface of the test.
In the test temperature specified by the after 60min +2 min/0min, the test quickly (<10s) immersed in 20 ° C ± 5 ° C water cooling 6min ± 2min, 3min removed from the water surface within the indentation diameter measurement test, as the indentation is more than 2mm in diameter to evaluate the test specified in the heat deformation temperature.
Technical Parameters:
| Ball diameter | 5mm (R2.5mm) |
| Total test pressure | 20N±0.2N |
| Samples bearing | diameter 50mm, length 100mm, solid stanless steel cylinder |
| Production of materials | all used stainless steel materials |
| Remark | Ball pressure instrument takes another a hot box (oven) supporting the use. |
Conforms to:
IEC60238, IEC60309, IEC60320, IEC60335, IEC60598, IEC60601, IEC60669, IEC60670, IEC60745, IEC60884, IEC60950, IEC60998, IEC61058, IEC61558 etc.
Our product range: IEC & UL Test Probe,Mechanical Impact Tester, IEC Test Instruments,
Lamp Cap & Holder Gauge & Test Instrument,Temperature Rise Test Instrument,Electric Safety Tester,Environmental Test Instrument,Plug & Socket Gauge,EMC & LED Test Instrument,ETC
Welcome to your kindly enquiries!
Skype:Bellazcxyq
