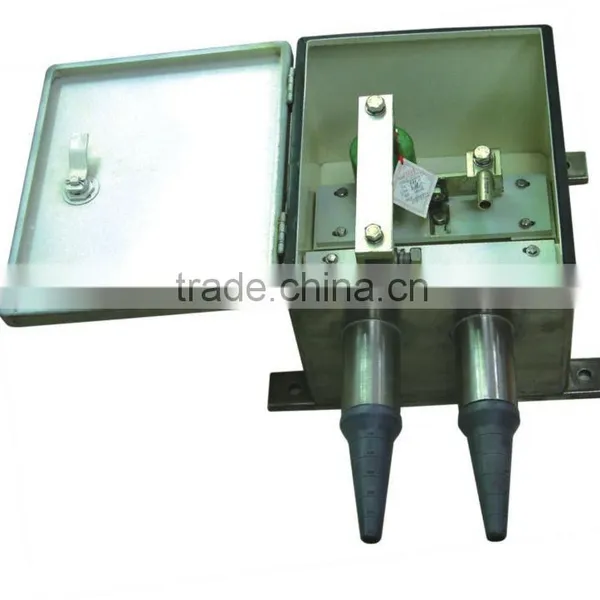

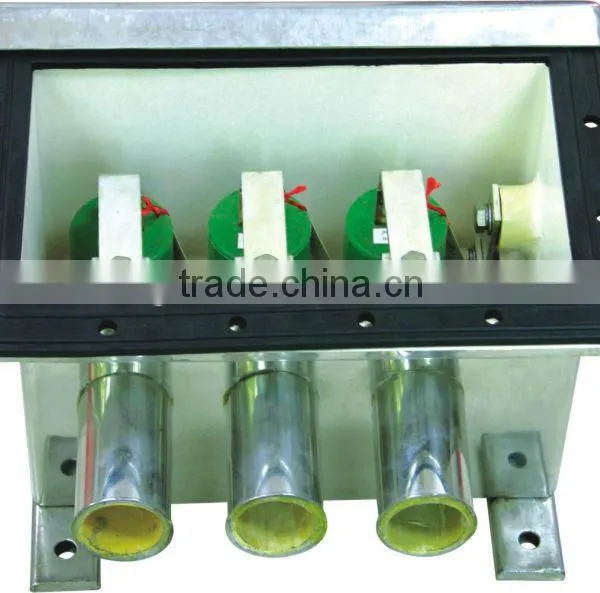

Earthing Link Box With SVL/link Box Without SVL
Specifications
earthing link box with SVL/link box without SVL:1. stainless steel outer protection shell
2. dry type, without leakage
earthing link box with SVL/link box without SVL :
Application: used for the earthing of metal sheath of HV single core power cable earthing link box with SVL/link box without SVL
Technical data:
Name |
Type |
Out dimension (L*W*H) mm |
Dimension and size of Mounting hole |
Cable cross section (mm2) |
Remark |
Link box without SVL |
ZJD |
605*420*305 |
450*330-¢15 |
50-240 |
Big case |
ZJD-B |
485*380*245 |
330*290 -¢15 |
50-150 |
Small case |
|
ZJD-E |
576*417*290 |
418*320 -¢15 |
50-240 |
Stainless steel |
|
ZJD-J |
570*300*490 |
520*210 -¢15 |
50-240 |
Stainless steel, vertical |
|
DJD-2 |
460*390*345 |
300*336 -¢15 |
50-240 |
Single phase |
|
ZJD-I |
300*200*106 |
270*108 - ¢ 14 |
50-240 |
Resin type |
|
Link box with SVL |
ZJDB |
605*420*305 |
450*330- ¢ 15 |
50-240 |
Big case |
ZJDB-B |
485*380*245 |
330*290- ¢ 15 |
50-150 |
Small case |
|
ZJDB-E |
576*417*290 |
418*320- ¢ 15 |
50-240 |
Stainless steel |
|
ZJDB-J |
570*300*490 |
520*210- ¢ 15 |
50-240 |
Stainless steel, vertical |
|
ZJDB-H |
610*540*345 |
450*445- ¢ 15 |
50-240 |
With counter |
|
DJDB-1 |
542*354*320 |
300*300- ¢ 15 |
50-240 |
Single phase with counter |
|
DJDB-2 |
460*390*345 |
300*336- ¢ 15 |
50-240 |
Single phase |
|
ZJDB-I |
300*234*106 |
270*140- ¢ 15 |
50-240 |
Resin type |

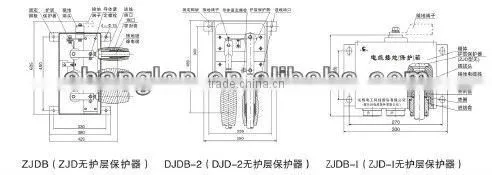

Drawing:
