Help CenterCross Bonding Link Box
Related Products
Specifications

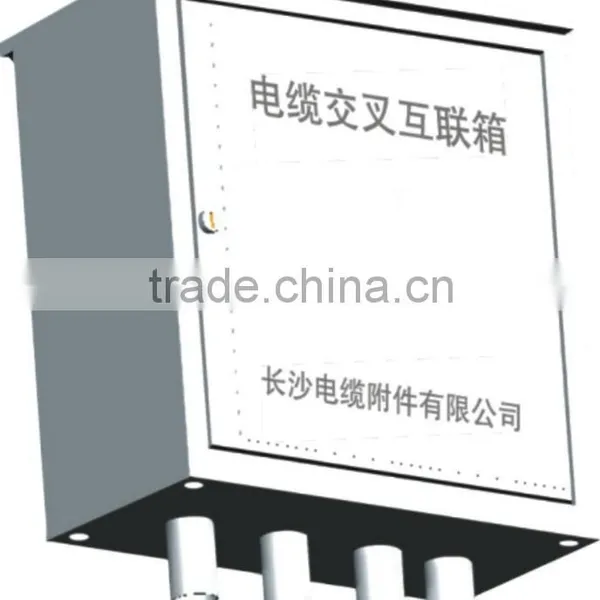

Cross bonding link box:1. stainless steel outer protection shell
2. dry type, without leakage
Cross bonding link box :
Application: used for the cross bonding earthing of metal sheath of HV single core power cable and to prohibit the impulse over voltage to rise on the cable sheath and insulation area of cable joint, control the induced voltage, reduce or eliminate the circulation, so as to improve the trasmission capacitor.
Technical data:
Name |
Type |
Out dimension (L*W*H) mm |
Dimension and size of Mounting hole |
Cable cross section (mm2) |
Remark |
Cross bonding link box |
FCD |
610*540*345 |
450*445-Φ15 |
50-240 |
Big case, horizontal and coaxial cable |
FCD-B |
545*485*253 |
385*390-Φ15 |
50-150 |
small case, horizontal and coaxial cable |
|
FCD-C |
595*540*332 |
450*445-Φ15 |
50-240 |
Stainless steel, horizontal and coaxial cable |
|
FCD-E |
695*598*345 |
600*450-Φ15 |
50-240 |
With counter, horizontal and coaxial cable |
|
FCD-F |
570*300*690 |
520*210-Φ15 |
50-240 |
Stainless steel, vertical and coaxial cable |
|
FCD-K |
495*245*290 |
210*180-Φ14 |
50-240 |
Plastic, horizontal and coaxial cable |
|
FCD-H |
420*248*168 |
392*150-Φ14 |
50-240 |
Resin type with normal cable |
|
FCD-H-II |
420*272*168 |
392*175-Φ14 |
50-240 |
Resin type with normal cable |
Drawing:
