Single Satellite DVB-S/DVB-S2/DVB-C/DVB-T SDTV IRD and Processor With CI Interface

Name: Single Satellite DVB-S/DVB-S2/DVB-C/DVB-T SDTV IRD and Processor With CI Interface
Brand: DIBSYS
SKU: 110658491
Availability: InStock

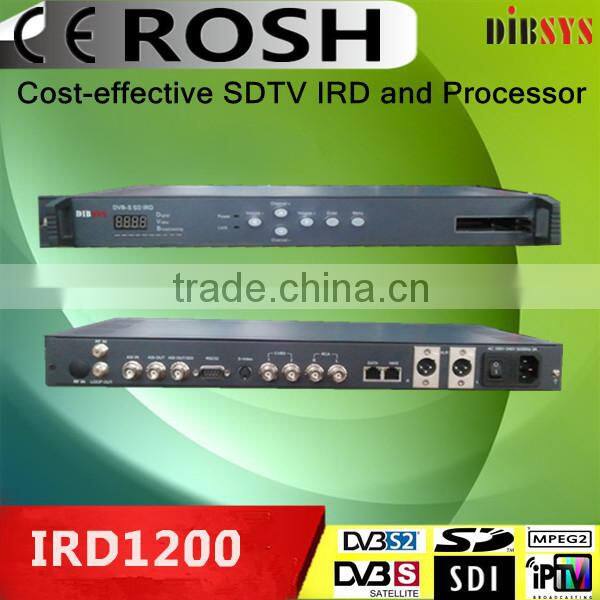

Single Satellite DVB-S/DVB-S2/DVB-C/DVB-T SDTV IRD and Processor With CI Interface thumbnail-1

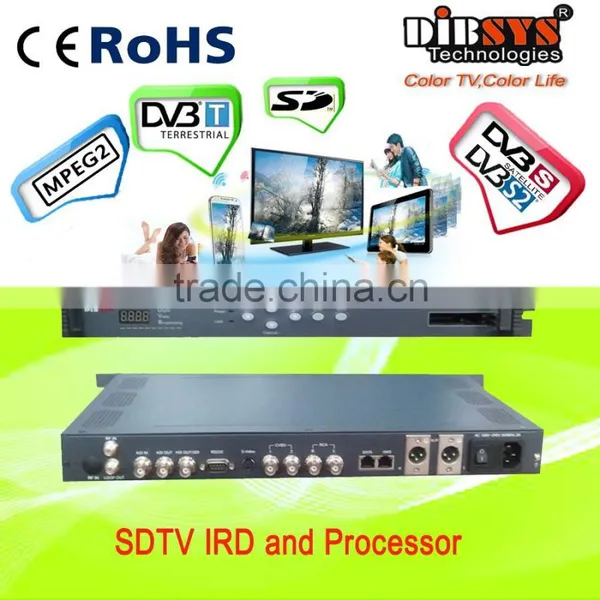

Single Satellite DVB-S/DVB-S2/DVB-C/DVB-T SDTV IRD and Processor With CI Interface photo-1

US$ 200 - 1,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

DIBSYS

Model Number:

IRD1200

Contact Supplier Request Quote Chat Now

Hangzhou DIBSYS Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name DIBSYS

Model Number IRD1200

FTA(Free To Air) Yes

Type Digital

High Definition No

SD MPEG-2 Processor and Integrated Receiver-Decoder

DIBSYS’s IRD1200 is the professional high scalable, integrated receiver decoder(IRD),Multiple inputs to IP Gate-way and MPEG-2 stream processor.Featuring

broadcast-quality SD MPEG-2 video decoders, It is ideal for full transport-stream distribution and contribution applications, including DVB scrambling and digital turnaround processing.

It supports a rich set of input options, ranging from multiple DVB-S/S2(QPSK,8PSK),DVB-C(QAM),DVB- T(COFDM) to IP and DVB-ASI, Advanced features and flexibility for IPTV and HDTV Digital Headend Systems

IP TV streams can also be received and sent over IP. The platform’s native IP interface seamlessly integrates into scalable,low-cost IP networks

TS Descrambler with two integrated DVB-CI slot per chassis,up to decrypt 8 channel per CI module
Standard definition MPEG-2 MPML video decoding
Selectable multiple inputs DVB-S/S2/C/T,IP,ASI
streaming descrambled content over IP and ASI out
SDI,Composite and R/L analog audio,S-Video,XLR digital audio outputs
Embedded BISS-1 and BISS-E Mode (DSNG-CA)
With full remultiplexing,capabilities, including PID filtering, remapping and table regeneration
Resolution: 720x576,720x480
More scalable and lower-cost transition to IP- based services.
High accuracy PCR correction
Management via SNMP and front panel with TV sets
Input Single Strength and Quality self-detection
Easy-to-Use System Management

RF input interfaces	DVB-S/S2	frequency range: 950~2150MHz
		level: -25~-65dBm
		Connector: F type, 75ohm
		Symbol rate: 1~45MBauds
		LNB Power:13 VDC,18VDC
		Demodulation Mode: QPSK,8PSK
		Frequency Stepping: 500 KHz
	DVB-C RF	Input Frequency Range: 47-862MHz
		Symbol rate: 4-7.0MBauds
		Input Level: -15-20dBmV
		Demodulation Mode: 16/32/64/128/256 QAM/J.83 A/B/C(Optional)
	DVB-T RF	Frequency Range: 146-862MHz
		Bandwidth: 8MHz (6,7MHz Optional)
		Level: -87- -20dBm
		Constellations: QPSK, 16QAM, 64QAM
		FEC Demodulation: 1/2,2/3,3/4,5/6,7/8
TS in/output interfaces	ASI	1xASI in/output
		Input impedance:75 ohm
		Max transport rate: ≤85Mbps
	MPEG over IP	Max transport rate: ≤85Mbps
		De-multiplex and re-multiplex transport stream
		Encapsulation Protocols MPEG-2 TS over UDP
		Addressing Multicast/unicast
		Connectors 100M Base-T,RJ45
decode output interfaces	Video decode output interfaces	2x Composite ,BNC
		1x SDI,BNC
		1x S-Video
	Audio decode output interfaces	1x Pair R/L analog audio,BNC
		1x pair R/L digital audio,XLR
		Audio mode: stereo,left and right
		Volume: 0-25
Re-multiplexing	Full or any program through multiplexing
	PID Filter,Remapping,Passthrough
	Resolution: PAL,NTSC
Conditional Access	Two PCMCIA Interface
	Scrambling algorithm:DVB-CSA
	Up to 8 program descrambling simultaneously
	SCS interface:ISO7816
	Max bitrate: ≤80Mbps
Management	100M Base-T Ethernet,RJ45,SNMP
	6 keys: UP,DOWN LEFT,RIGHT,ENTER,ESC
	Front-Panel KEY Borard,LED indicate light
Environment	Comply to GB13837-92 & GB8898-88 standard
	Rated voltage: AC 90-260V 50/60Hz
	Rated power: 20W
	Working Temperature: -10~50°C
	Storage Temperature: -10~75°C
	Size: L: 280mm, W: 483mm, H: 44mm(1RU)
	Weight: 3.2kg
