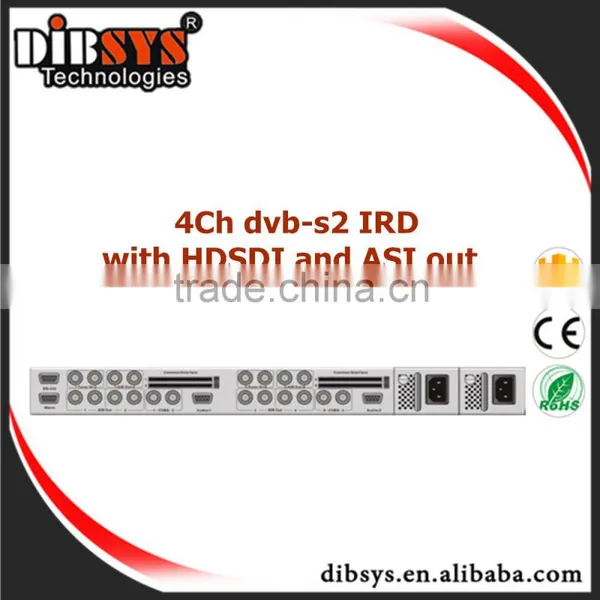

Digital Mpeg2 and H.264 HD Receiver/Decoder Directly Conncted to Broadcast SD/HD-SDI Encoder

Digital Mpeg2 and H.264 HD Receiver/Decoder Directly Conncted to Broadcast SD/HD-SDI Encoder photo-1
US$ 500 - 2,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DIBSYS
Model Number:
IRD1345
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name DIBSYS
Model Number IRD1345
FTA(Free To Air) Yes
Type Digital
High Definition Yes



4Ch HD/SD MPEG2 and H.264 IRD









Digital Mpeg2 and H.264 HD receiver/Decoder directly conncted to Broadcast SD/HD-SDI Encoder

The IRD1345 provides operators an ideal solution for multi receiving, descrambling, remultiplexing and decoding  operations. By the quad DVB common interfaces, IRD1345 could decrypt multiple services in 4 transport stream.

IRD1345 is also a professional IRD that features a broadcast quality decoder for MPEG-2 and MPEG-4 AVC/H. 264 in both Standard Definition and High Definition formats, and provides a variety of industry standard digital  and analog outputs, including 4 separated CVBS video, analog Audio, SD-SDI and HD-SDI. The unit also performs

HD down-conversion and aspect ratio adaptation of HD programs to generate professional quality baseband  analog video and audio outputs for easy integration with existing cable network infrastructure. This all-in-one

architecture makes the IRD1345 an ideal product for distribution and contribution networks.



Digital Mpeg2 and H.264 HD receiver/Decoder directly conncted to Broadcast SD/HD-SDI Encoder

  • Quad Tuner Input, Supports variety of input options DVB-T2/S2/C/DTMB/ATSC/ISDB-T
  • Supports DVB-S2 Input Stream Identifier (ISI, optional) and DVB-T SFN MIP pass through
  • SD/HD MPEG-2 and MPEG-4 AVC/H.264 digital video decoding
  • 4 HD/SD-SDI,4 Composite,4 ASI outputs
  • Two Audio PIDs decode or pass through (compressed) for each SDI output
  • Built-in 2xTS re-multiplexer, one receives from Tuner1, Tuner2, CI1 and CI2 Inputs, the other receives from  Tuner3, Tuner4, CI3 and CI4 Inputs
  • 4×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption
  • Compatible with:Conax,Cryptoworks, Irdeto,NDS,Mediaguard,SECA,Viaccess,more
  • Supports VBI TELETEXT, EBU/DVB Subtitle,Closed Caption
  • Remote Control and Supervision by SNMP, HTTP WEB
  • Digital audio can be passed through by SDI
  • VBI TELETEXT, WSS and Closed Caption embedded in SDI
  • RSSI, received Eb/No & BER monitoring
  • Redundant power supply





Digital Mpeg2 and H.264 HD receiver/Decoder directly conncted to Broadcast SD/HD-SDI Encoder





























Digital Mpeg2 and H.264 HD receiver/Decoder directly conncted to Broadcast SD/HD-SDI Encoder



1)      High quality and low price

2)      3-year warranty

3)      Perfect after-sale service and technical support
