Product Description

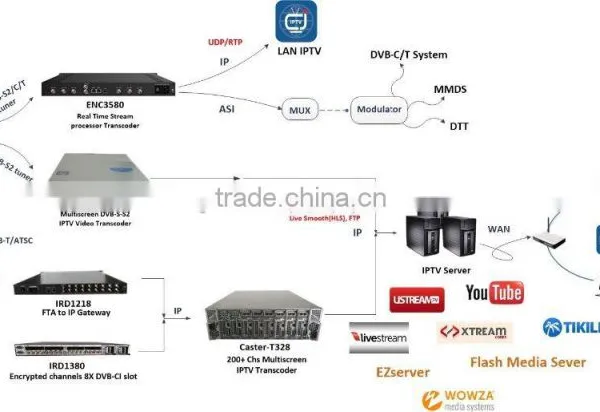

Dibsys Solution for DVB-S2 to IP Transcoder


Features

Solution 1


◆ENC3580


 6* DVB-S2/C/T tuners input

8*SPTS & 1*MPTS (UDP and RTP/RTSP) output; 2 ASI output


Solution 2


◆Caster-T323

8 FTA DVB-S2 Tuners input

Transcode up to 20 SD or 10x720P or 5-6 Full HD Channels

UDP, RTSP, RTMP, HTTP, HTTP Live Smooth(HLS), FTP Protocol IP Output


Solution 3


Compared with a device integrated DVB-S2 receiver and transcoder Using DVB-S2/IP gateway (IRD1218) and IP / IP Transcoder (Caster-T328) two separate devices connected to IP networks, will make the two devices play a more independent advantages. Therefore, it will enhance the performance of the entire transcoder and reduce the costs.


◆IRD1218

8 FTA DVB-S/S2/C/ISDB-T/ATSC RF inputs

Up to 244 SPTS/14 MPTS over IP out

MPEG-TS over RTP/UDP out


◆IRD1380

8xTuners Input, options DVB-T2/T/S2/S/C/DTMB/ATSC/ISDB-T

8×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption

◆Caster-T328

Transcode up to 200+ SD Channels

UDP, RTSP, RTMP, HTTP, HTTP Live Smooth(HLS), FTP Protocol IP Output

Technical Benefits

1.8 FTA DVB-S/S2 RF In

2.up to 200+ SD Streams out

3.Ultra-Low bitrate

4.MPEG2 to MPEG4/H.264 or h.264 to mpeg2/h.264 Trascoder, Scaler, Stream

5.Multi-Sceen out per the same video source in

6.Supports RTMP, HTTP, Smooth and Live Streaming and Works with Wowza, Adobe Flash Server

7.Audio Support AAC, MPEG-1 Layer II, Dolby Digital AC-3.Optional MP3, Supports Adaptive Bitrate Streaming, HLS, RTMP, and HTTP.

8.Any to Any resolution

9.LOGO Insertion

Business Benefits

1.More stable and reliable, and scalable

2.Make transcode itself achieve the highest efficiency,and optimize latency transcoding.

3.More cost savings. Take IRD1218 for an example, it has 8 tuners, if every tuner has 38Mbps data streams and 10 programs, which makes it 300mbps Bitrate and 80 programs in total. That means you can share one IRD1218 for 4 transcoders to use.

4.Arrange programs to any named transcoder, so that HD programs works in one transcoder, and SD programs works in another transcoder, which makes the efficiency of the transcoder perform the best.

5.Except for transmitting DVB-S2/IP streams to trascoder, it can also be used for other purposes. (detecting, DVB broadcast headend)

6.Easy to Maintenance and Management System, Even one IRD fails, it will not lead to another transcodes stop working.


Technical Data


Description
MultiStreamer DVB-S2/IPTV Transcoder
ENC3580 Receiver Transcoder
Inputs
8 FTA DVB-S2 RF
Up to 200+ MPEG-TS IP (Two GbE IP ports)
6 FTA DVB-S2 RF
Up to 8 MPEG-TS IP (One GbE IP ports)
Outputs
Two GbE IP ports
One GbE IP ports and ASI ports
Codec formats
MPEG-2 to H.264/MPEG4

H.264/MPEG4 to MPEG-2,

H.264/MPEG4 to H.264/MPEG4

H.263
MPEG-2 to H.264

H.264 to MPEG-2
Channels
Up to 200+ SD streams
Up to 8SD,4 720P, 4 1080i/p streams
Audio format
MPEG-1 Layer II,AAC,AC3
MPEG-1 Layer II,AAC,AC3 passthrough
Resolutions
HD,D1, SQVGA, QCIF, QVGA,SIF, VGA,

or any custom size up to 1080P
1920x1080I,1440x1080I,1280x720P,960x540p, 854x480p,720x576i,

720x480i, 480x576,

544x576, 640x576,704x576,640x360
Video Bitrate for

Good quality
Ultra-Low bitrate

500-800kbps@SD,800-1500Kbps@720p

2000-4000kbps@1080p
Low bitrate

1000-1500kbps@SD,1800-3500kbps@720p

3000-5000kbps@1080i
Protocols
RTMP/RTSP/RTP/HTTP/HLS/UDP
UDP/RTP
Chipsets
Embeded Linux (Intel CPU)
VIXS
Cost per channel
Low cost
Ultra-Low cost
Video quality
Superior quality
Good quality
Subtitle and closed

Caption support
                                     ---
Teletext, VBI subtitling, CEA608, and CEA 708
Steams out
multiple profiles and protocol and bitrate can be created per input
only One stream out per input
Customers
Mobile operators,Content/Service providers, digital Broadcasters (Need lowest video bitrate in limited BW)

Deploying Wowza, Adobe, Microsoft, Apple

Media room etc
Cable,DTH Broadcasters

IPTV(not need lowest video bandwidth,the server can supported UDP/RTP protocol)

Deploying Wowza server and which server supported mpeg2 ts
