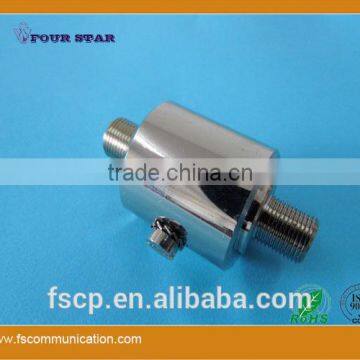

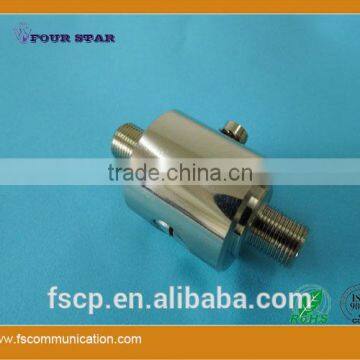

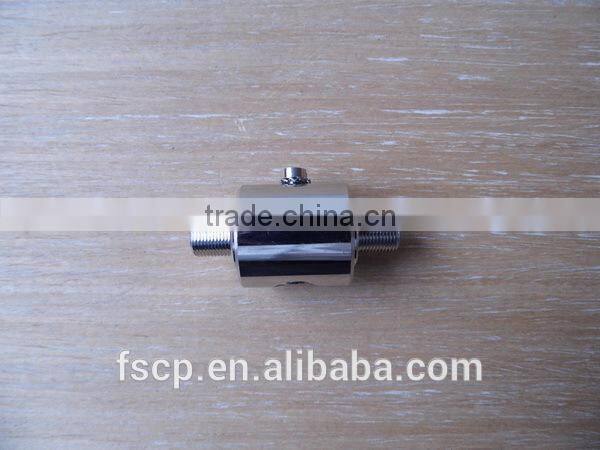

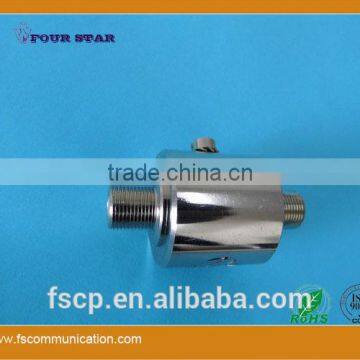

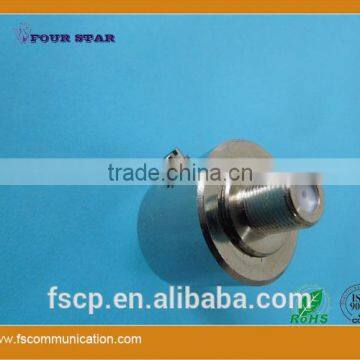

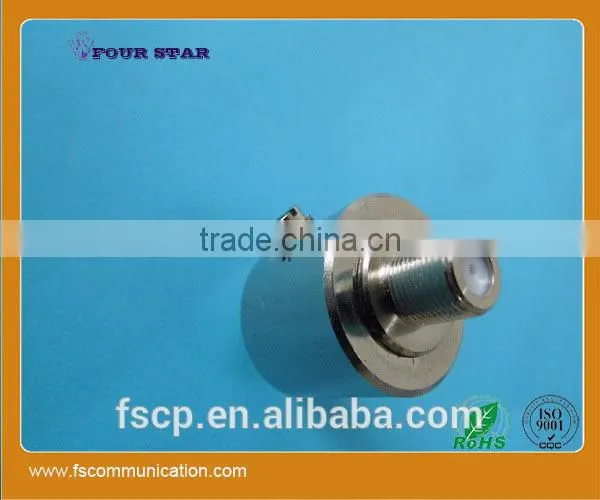

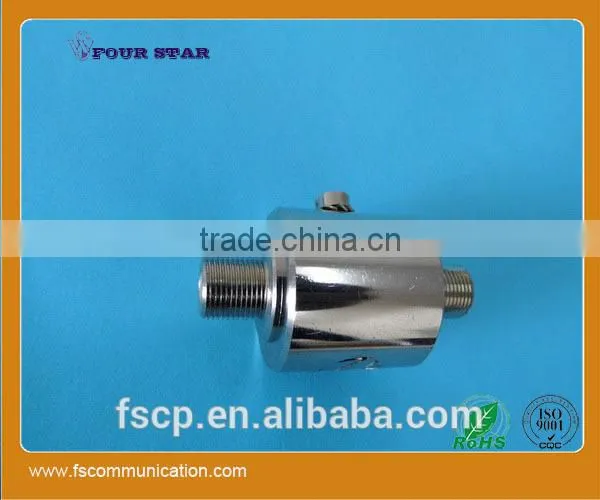

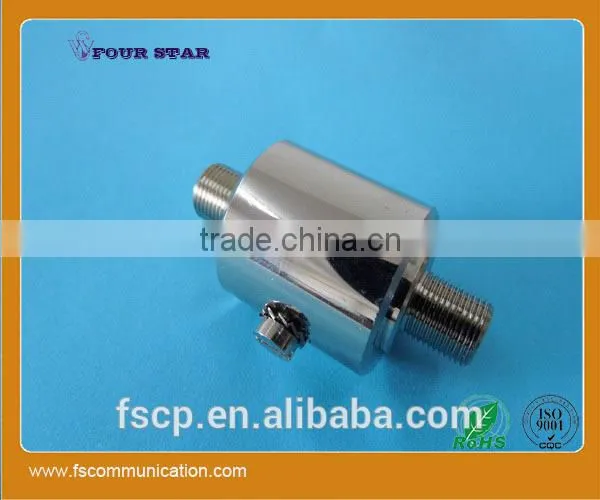

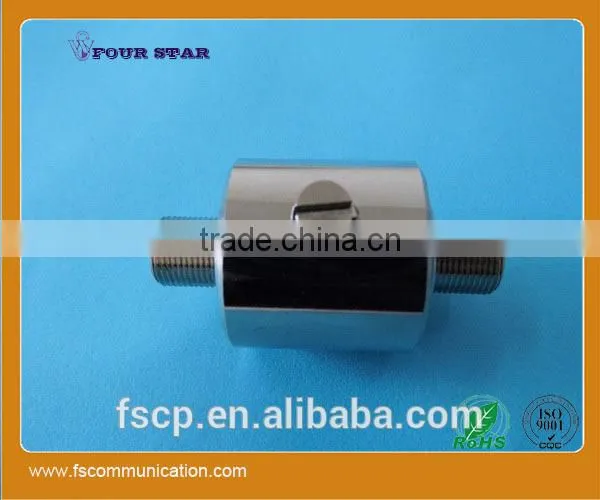

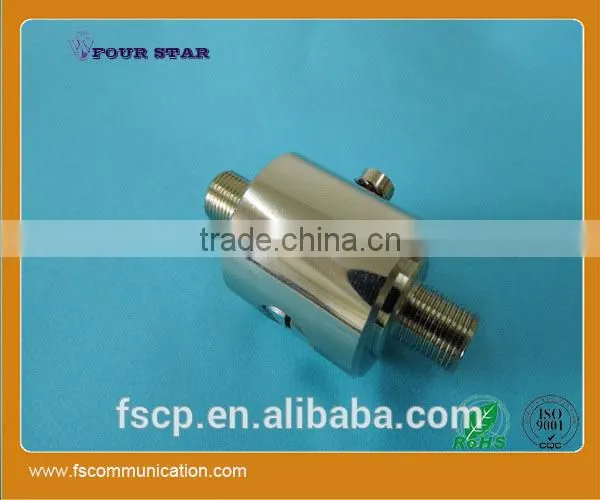

Gas Discharge Tube Lightning Arrestor With F Coaxial Connector

Name: Gas Discharge Tube Lightning Arrestor With F Coaxial Connector
Brand: Four Star
SKU: 110649573
Availability: InStock

US$ 3.8 - 5.8 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Four Star

Model Number:

LPGD-FKK-2.5

Four Star Communication Parts Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Four Star

Model Number LPGD-FKK-2.5

Product Description

Gas Discharge Tube Lightning Arrestor

Gas Discharge Tube Type Lightning Protector With F Female to F Female Connector
Model No.	LPGD-FKK-2.5
Interface	IEC 60169-24/MIL-STD-348/313
Electrical
Characteristic Impedance	75ohm
Coaxial Connector	F Female to F Female Connector
Frequency Range	DC-2.5GHz
VSWR	≤1.30at DC-2.5GHz
Insertion Losss	≤0.20dB(2.5GHz)
Impulse Breakdown Voltage	≤500V (@1kv/μs)
Dielectric Resistance	≥1000MΩ
Contact Resistance	Center Contact ≤10mΩ	Outer Contact ≤5 mΩ
Peak Power	100 Watts
DC Breakdown Voltage	90/150/230/±20%(@100v/s)
AC Discharge Current	5A(50Hz)
Surge Discharge Current	5KA(8/20μs)
Maximum Withstand Current	20KA(8/20μs)
Mating	—
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating (Finish)
Body(Housing)	Brass	Ni or Tri-Metal(CuZnSn)
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Au(or Ag)
Coupling Nut	Brass	Ni
Grouding Component	Stainless Steel	—
Environmental
Operating Temperature	_45 °C-85 °C
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
EU Directive 2006/95/EC	Compliant
