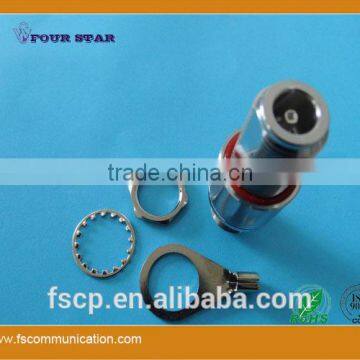

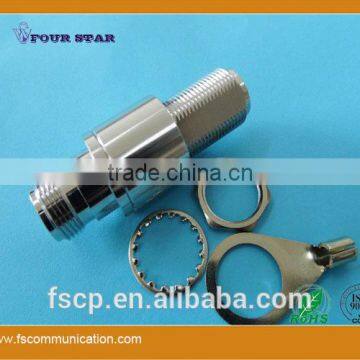

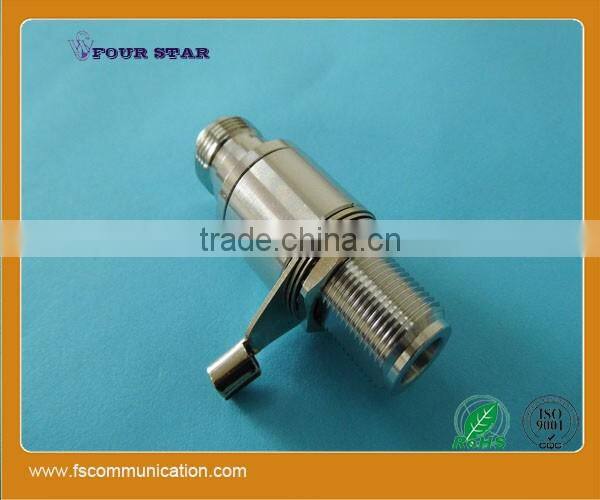

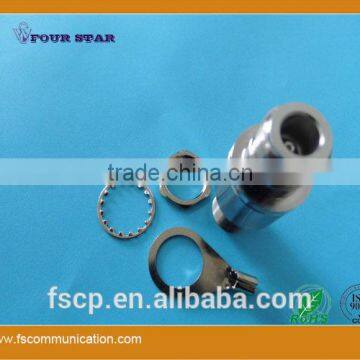

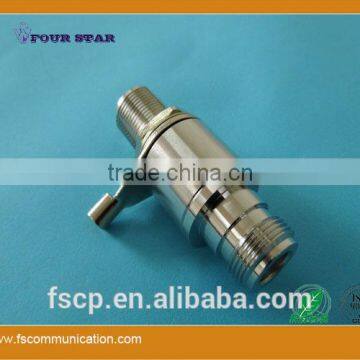

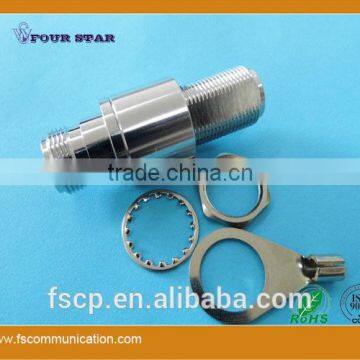

Lightning Protector With N Female to N Female Bulkhead Connector

Name: Lightning Protector With N Female to N Female Bulkhead Connector
Brand: Four Star
SKU: 110649599
Availability: InStock

US$ 4.9 - 8.9 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Four Star

Model Number:

LPGD-N-KKY-6

Four Star Communication Parts Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Four Star

Model Number LPGD-N-KKY-6

Product Description

Gas Discharge Tube type Lightning Protector

Gas Discharge Tube Type Lightning Protector With N Female to N Female Bulkhead Connector
Model No.	LPGD-NKKY-6
Interface	IEC 60169-16/MIL-STD-348/304
Electrical
Characteristic Impedance	50ohm
Coaxial Connector	N Female to N Female Bulkhead Mount Connector
Frequency Range	DC-6GHz
VSWR	≤1.20@DC-6GHz
Insertion Losss	≤0.18dB(6GHz)
AC Working Vlotage	≤2500V (@1kv/μs)
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1mΩ	Outer Contact ≤1 mΩ
Peak Power	200 Watts
DC Breakdown Voltage	90/150/230/470(V)±20%(@100v/s)
AC Discharge Current	5A(50Hz)
Surge Discharge Current	5KA(8/20μs)
Maximum Withstand Current	20KA(8/20μs)
Mating	—
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating (Finish)
Body(Housing)	Brass	Ni or Tri-Metal(CuZnSn)
Insulator	PTFE	—
Inner Conductor	Phosphor Bronze	Au(or Ag)
Coupling Nut	Brass	Ni
Washer	Brass	Ni
Gasket	Silicone Rubber	—
Mount Kits	Stainless Steel	—
Environmental
Operating Temperature	_45 °C-85 °C
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
EU Directive 2006/95/EC	Compliant
