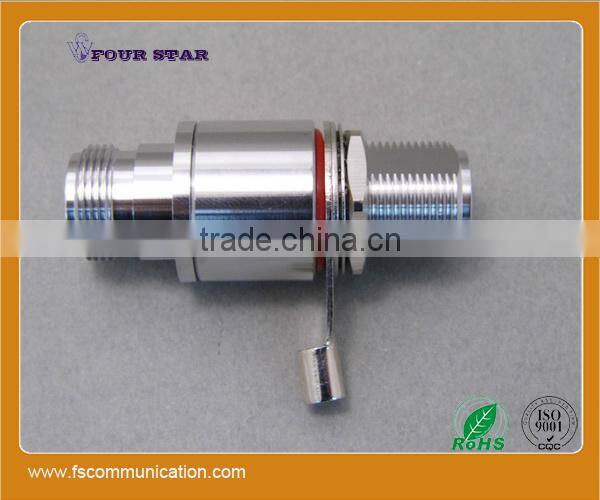

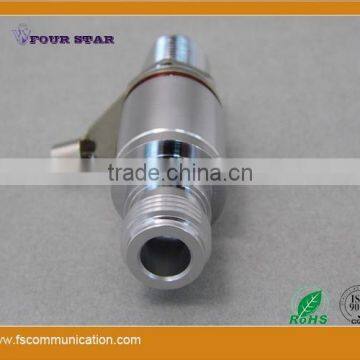

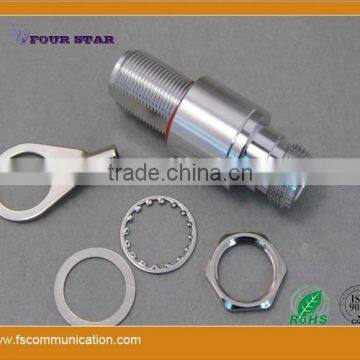

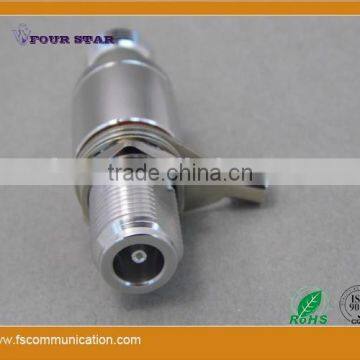

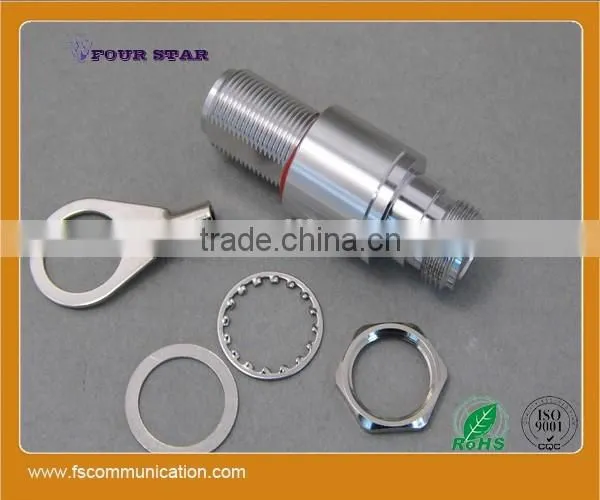

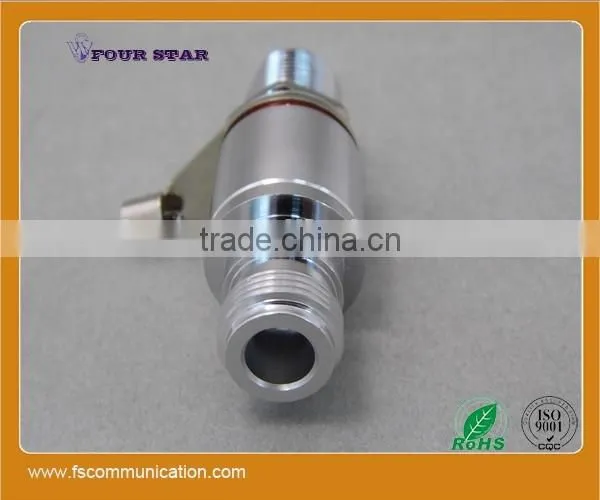

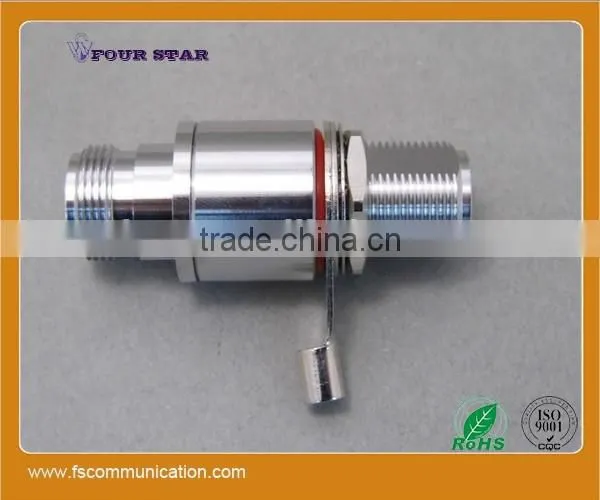

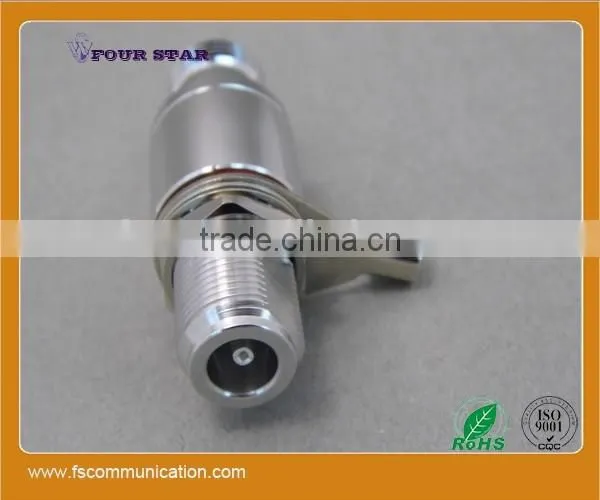

Gas Discharge Tube Lightning Protector With n Female to n Female Connector
Gas Discharge Tube Lightning Protector
| Gas Discharge Tube Type Lightning Protector With N Female to N Female Bulkhead Connector | ||
| Model No. | N-GD-KKY-3 | |
| Interface | IEC 60169-16/MIL-STD-348/304 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Coaxial Connector | N Female to N Female Bulkhead Connector | |
| Frequency Range | DC-3GHz | |
| VSWR | ≤1.20@DC-3GHz | |
| Insertion Losss | ≤0.18dB(3GHz) | |
| Impulse Breakdown Voltage | ≤2500V (@1kv/μs) | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤1 mΩ |
| Peak Power | 200 Watts | |
| DC Breakdown Voltage | 90/150/230/470(V)±20%(@100v/s) | |
| AC Discharge Current | 5A(50Hz) | |
| Surge Discharge Current | 5KA(8/20μs) | |
| Maximum Withstand Current | 20KA(8/20μs) | |
| Mating | — | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating (Finish) |
| Body(Housing) | Brass | Ni or Tri-Metal(CuZnSn) |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au(or Ag) |
| Washer | Brass | Ni |
| Coupling Nut | Brass | Ni |
| Grouding Component | Stainless Steel | — |
| Environmental | ||
| Operating Temperature | _45 °C-85 °C | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| EU Directive 2006/95/EC | Compliant | |

We provide comprehensive aftersales service,including quality service, guidance services, We focus on customer needs in every detail. If you have any question please contact us.
