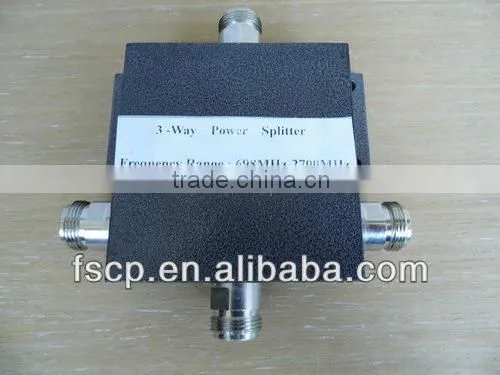

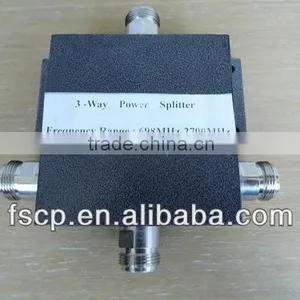

Micro-strip 700-2700MHz Power Splitter
US$ 9.5 - 14.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
FS-MPS-0727-03NF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Micro-strip Type Power Splitter 700-2700MHzUS$ 9.5 - 14.5MOQ: 100 Pieces -
200 Watt N Type Coaxial Dummy Load (Terminator )US$ 48.8 - 68.8MOQ: 20 Pieces
-
30 Watt N Type Dummy LoadUS$ 8.85 - 10.85MOQ: 10 Pieces
-
200 Watt N Type Coaxial Dummy Load (Terminator )US$ 48.8 - 68.8MOQ: 20 Pieces
-
50 Watt N Type Coaxial Dummy Load (Terminator )US$ 10.85 - 14.85MOQ: 30 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
FS-MPS-0727-03NF
Specifications
1. Wide Frequency Range2. Low VSWR
3. Low Insertion Loss
4. Low PIM 3.
5. Applicaton :indoor coverage systerm and BTS
| Model No. | FS-MPS-0727-02NF | FS-MPS-0727-03NF | FS-MPS-0727-04NF |
| Frequency(MHz) | 700-2700MHz | ||
| Product Name | 698-2700MHz, 2/3/4 Way, 50 Watt,Low PIM3 Micro-strip Power Splitter/Divider | ||
| Split Loss(dB) | ≤3.4 | ≤5.5 | ≤6.5 |
| VSWR | ≤1.25 | ||
| PIM3(3rd Order) | ≤-110dBc@2×43dBm | ||
| Power Capacity(W) | 50 | ||
| Impedance(ohm) | 50 | ||
| RF Connector | N Female Connector (Tri-metal Plating) | ||
| Operating Temp.(deg) | -35~+80 | ||
| Color | Black-plated | ||
| Material(Housing) | Aluminum | ||
| Relative Humidity | 5%-95% | ||
| Application | Indoor | ||
| Weight(kg) | 0.29 | 0.33 | 0.36 |
