Home > Electrical & Electronics > Antenna > Communication Antenna > 20 dB 800-2500MHz Directional Coupler

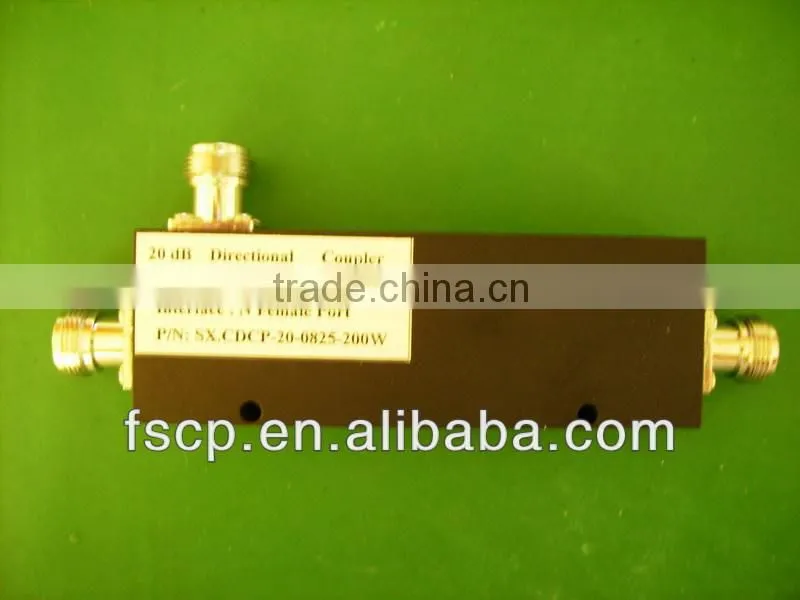

20 dB 800-2500MHz Directional Coupler
US$ 3.5 - 6.5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
FSDC-0825-20NF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15dB 800-2500MHz Directional CouplerUS$ 3.5 - 6.5MOQ: 50 Pieces -
10dB 800-2500MHz Directional CouplerUS$ 3.5 - 6.5MOQ: 50 Pieces
-
rf Coaxial Fixed Attenuator n Male to n Female Connector 2 WattUS$ 5.5 - 9.9MOQ: 30 Pieces
-
rf Coaxial Fixed Attenuator N Male to N Female Connector 5 WattUS$ 3.8 - 9.9MOQ: 30 Pieces
-
30 Watt N Type Coaxial Dummy Load (Terminator )US$ 7.85 - 9.8MOQ: 30 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
FSDC-0825-20NF
Specifications
1. Wide Frequency Range2. Low VSWR
3.Low IM 3rd.
4. Fast Delivery
| Product Name | 800-2500MHz, 200 watts, N-female, 10/15/20/30 dB Directional Coupler | |||
| Model No. | FSDC-0825-10NF | FSDC-0825-15NF | FSDC-0825-20NF | FSDC-0825-30NF |
| Frequency(MHz) | 800-2500 | |||
| Insertion Loss(dB) | ≤0.8 | ≤0.5 | ≤0.40 | ≤0.30 |
| Coupling (dB) | 10 ± 1.0 | 15 ± 1.2 | 20 ± 1.30 | 30± 1.5 |
| Isolation(dB) | >23 | |||
| VSWR | ≤1.25:1 | |||
| Power Capacity(W) | 200 | |||
| Peak Power | 1KW | |||
| Impedance(ohm) | 50 | |||
| RF Connector | N-female Connector(Tri-metal Plating) | |||
| Intermodulation 3rd | ≤ -120 dBc@2×20W | |||
| Surface Colour | Black-plated | |||
| Operating Temp(deg) | -35~+70 | |||
| Housing Material | Aluminum | |||
| Relative Humidity | 5%-95% | |||
| Application | Indoor | |||
| Weight(kg) | 0.23 | |||
