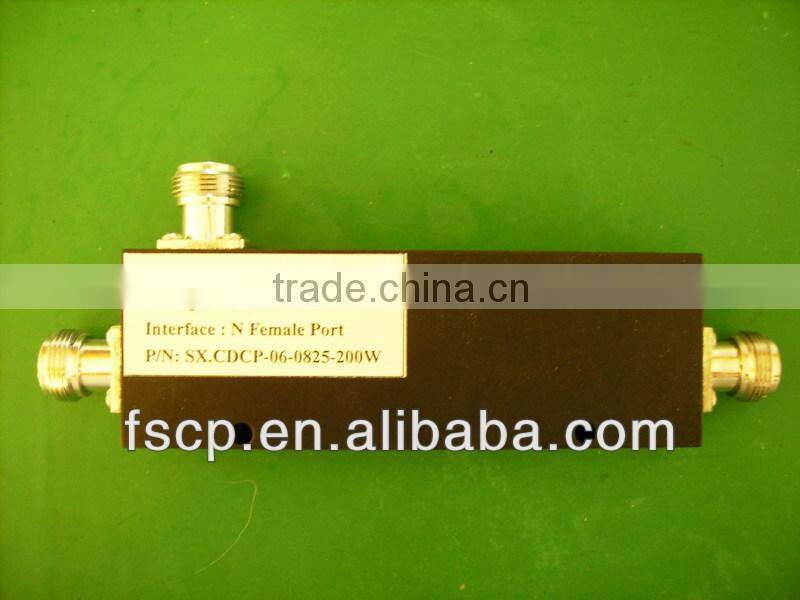

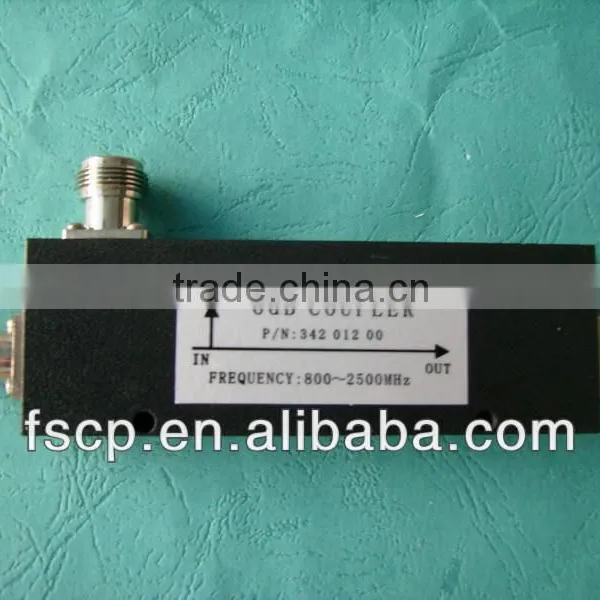

6dB 800-2500MHz Directional Coupler
US$ 3.5 - 6.5
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
FSDC-0825-06NF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30 dB 800-2500MHz Directional CouplerUS$ 3.5 - 6.5MOQ: 50 Pieces -
5dB 800-2500MHz Directional CouplerUS$ 3.5 - 6.5MOQ: 50 Pieces
-
20 dB 800-2500MHz Directional CouplerUS$ 3.5 - 6.5MOQ: 50 Pieces
-
15dB 800-2500MHz Directional CouplerUS$ 3.5 - 6.5MOQ: 50 Pieces
-
10dB 800-2500MHz Directional CouplerUS$ 3.5 - 6.5MOQ: 50 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
FSDC-0825-06NF
Specifications
1. Wide Frequency Range2. Low VSWR
3.Low IM 3rd.
4. Fast Delivery
| Product Name | 800-2500MHz, 200 watts, N-female, 5/6/7/8 dB Directional Coupler | |||
| Model No. | FSDC-0825-05NF | FSDC-0825-06NF | FSDC-0825-07NF | FSDC-0825-08NF |
| Frequency(MHz) | 800-2500 | |||
| Insertion Loss(dB) | ≤1.95 | ≤1.75 | ≤1.45 | ≤1.05 |
| Coupling (dB) | 5 ± 0.6 | 6 ± 0.7 | 7± 0.8 | 8±0.9 |
| Isolation(dB) | ≥23 | |||
| VSWR | ≤1.25:1 | |||
| Power Capacity(W) | 200 | |||
| Peak Power | 1KW | |||
| Impedance(ohm) | 50 | |||
| RF Connector | N-female Connector(Tri-metal Plating) | |||
| Intermodulation 3rd | ≤-120 dBc@2×20W | |||
| Surface Colour | Black-plated | |||
| Operating Temp(deg) | -35~+70 | |||
| Housing Material | Aluminum | |||
| Relative Humidity | 5%-95% | |||
| Application | Indoor | |||
| Weight(kg) | 0.23 | |||
