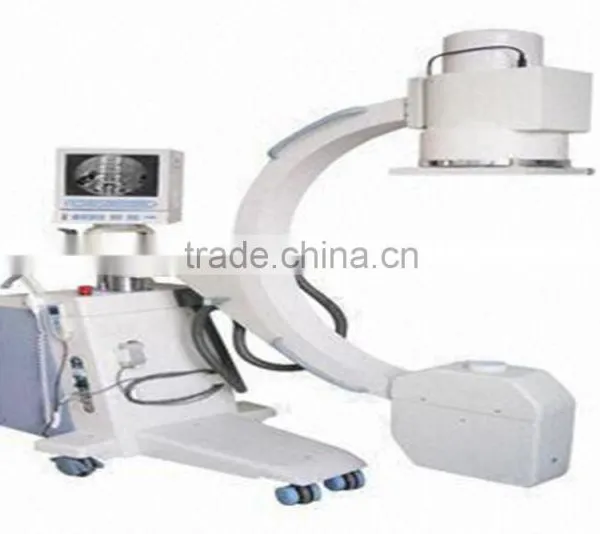

High Frequency Mobile X-Ray Equipment

High Frequency Mobile X-Ray Equipment thumbnail-1
High Frequency Mobile X-Ray Equipment thumbnail-2
High Frequency Mobile X-Ray Equipment thumbnail-3
High Frequency Mobile X-Ray Equipment photo-1
High Frequency Mobile X-Ray Equipment photo-2
High Frequency Mobile X-Ray Equipment photo-3
US$ 1,000 - 20,000 MOQ: 10 Sets
Key Specifications
Get Latest Price
Properties:
Other, Medical Materials & Accessories
Type:
Other
Brand Name:
SM
Contact Supplier Request Quote Chat Now
Shanghai Sun-Shore Medical Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Properties Other, Medical Materials & Accessories
Type Other
Brand Name SM
Model Number 4SM4002
Place of Origin Shanghai, China



Specifications

 Power Output: 5.0KW
 Frequency : 40KHz

 X-ray Tube: Fixed anode
 Focus :1.5
Tube Voltage: 40~120KV   (interval 1KV)
Tube Current :40~49KV         100mA    1~180 mAs
                      50~59KV         77mA      1~140 mAs
                      60~69KV         64mA      1~125 mAs
                      70~79KV         55mA      1~110 mAs
                      80~89KV         49mA      1~100 mAs
                      90~99KV         44mA      1~80 mAs
                      100~109KV     32mA       1~63 mAs

                      110~120KV     25mA       1~50 mAs
mAs :  1.0~180 mAs (46 steps)
Power Supply:    220V±10%  50Hz   inner-resistance≤1.0Ω
Operation Method:   Wire/Wireless control , 20 meters microwave remote control exposure. .( Advantage) .It is different from infrared remote control exposure, does not suffer any obstacles in the way.

Parameters

General-purpose, mobile X-ray system, dedicated for radiography of standing, seated or recumbent patients as well asfor patients in bed or on the operating table and as a standby emergency unit.High-frequency X-ray generator with the following output:

1. Generator output:    5.0 kW

2. kV range: 40 kV - 120 kV in 1kv steps

3. mA range:   25~100 mA

4. Exposure time: 4 films per min, less than 20 ms per film

5. X-ray tube:

Stationary anode tube with a focal spot of 1.5*1.5 mm

6. Collimator:

bright field light beam collimator with 120 W halogen lamp and auto shut-off facility.

7.Power requirements :Single phase 220 V +/- 10% Voltage tolerance; 50 Hz power supply

8.Mobile stand:Light-weight, low height mobile and easily maneuverable stand.

9.The mobile radiographic unit also include a handheld control and a microwave wireless remote control for the 20-meter microwave remote Without the restriction of Barriers and directional ,different from the infrared remote control . Grids reduce the fog line filters and raise the degree of scattering contrast.

10.The unit is provided with a line (power) cord of acceptable durability, quality, length and is secured with adequate strain reliefs

The unit include, power plugs that are sufficient for the maximum voltage and current of the unit.

11.The maximum distance from the ground: ≥ 17500mm, and minimum distance from the ground :≤500mm, rotating around the horizontal axis 180 °, rotation around the vertical: ± 90 °, The collimator can rotate 180 °,
