Metal & Non Metal Co2 Laser Mix Cutting for Aluminum, Paper, Acrylic, S.S, Wood Etc

Product Application

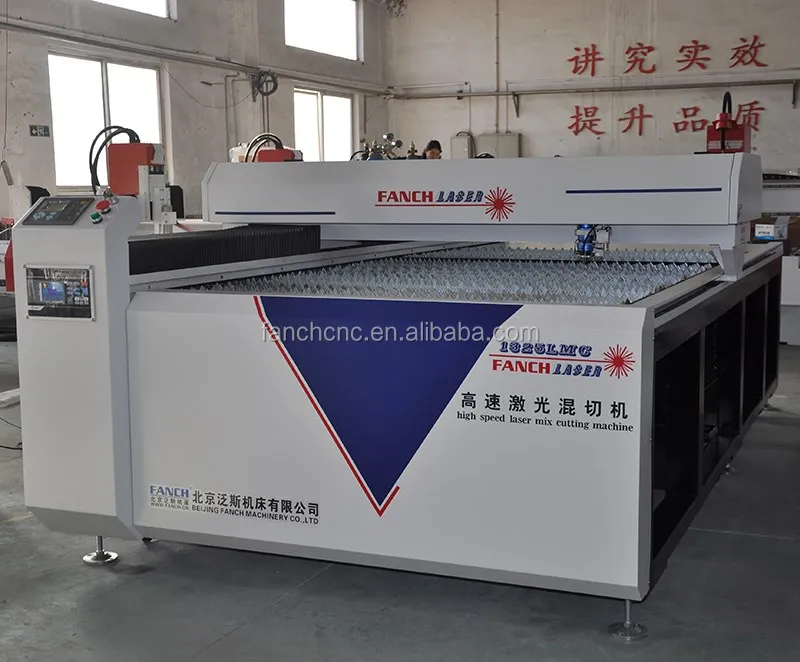

FC-1325LMC is the CO2 mix cutting machine developed by Fanch, it adopt the same stucture design of fiber laser cutting machine, which means as long as you like, it can be upgraded to fiber laser cutting machine.

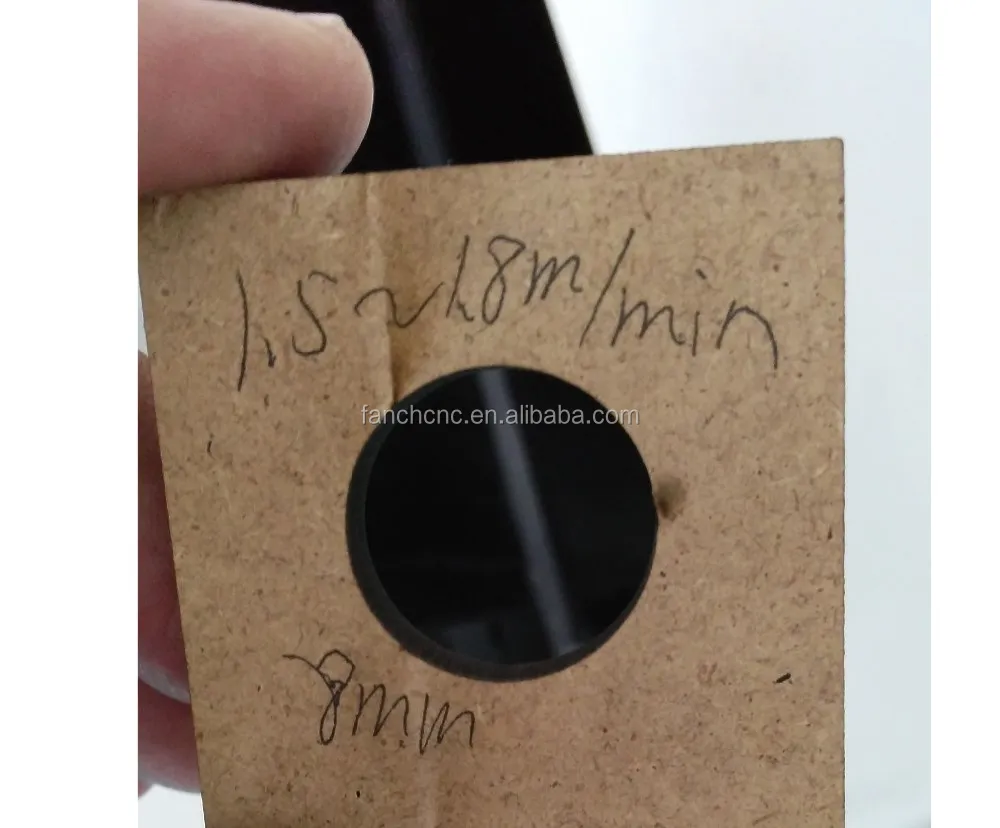

What's more 260W laser power can make it to cutting almost all non metal materials and some metal, such as carbon steel, stainless steel, galvanized sheet. Here is the suggested thickness for some materials:

Main Features

1) Lathe bed is made of high quality steel welded together, the whole machine adopts high temperature quenching and vibration aging treatment of metal, thick sheet metal structure design, machine solid, long service life, no deformation.

2)Using EFR laser tube 260w,high power,more fast speed,Oxygen consumption less, focus lens using American IIV, more stronger focus function, wear-resisting,non-friable, reflective lenses used domestic famous brands, minimize light energy loss caused by road transport.

3) Drive X axis adopt Taiwan TBI and high precision lead screw and the Y axis adopts the design of optical fiber laser machine rack driving, Germany Ann Henry rack, APEX planet reducer, Taiwan high-speed stability, speed, kerf width is small, high precision

4) The whole machine adopts the Japanese panasonic servo drive system of high performance, to ensure that the laser is smooth and stable in operation.

5) The cutting platform using Aluminum coating process , can reduce the laser reflecting, and avoid the lenses damage when light path returning, multi-functional working platform, which can realize the diversification of metallic and nonmetallic cutting.

6)Using domestic famous large flow cooling system , use distilled water or deionized water, can prolong the service life of laser tube, thereby lowering the production cost of enterprises.

7)External devices configured on powerful blow and convulsions system, ensure that does not fire when cutting board, density board, indoor, and flue gas sent to reduce indoor air pollution.

8)Adopt offline control system, USB cable transmission, simple and convenient operation, can depend on his computer controlled machine, more cost savings

9)Lasercut5.3 cutting control system software, compatible with CAD、PHOTOSHOP or other drawing software, more good function such as typesetting, data output.

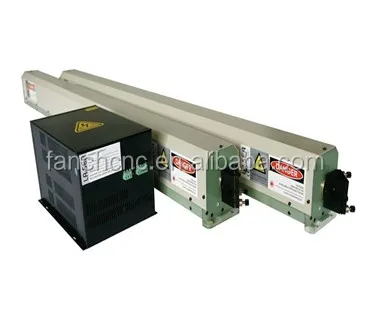

Co2 Laser tube

Name: Co2 laser tube
Brand: EFR
Original: China
Chinese top brand laser tubes

Servo

Name: motor servo
Brand: Yaskawa
Original: Japanese
AV servo, under the power angle closed-loop control, the resistance capacity against load disturbance is improved and the problem of out-of-step is efficiently solved.

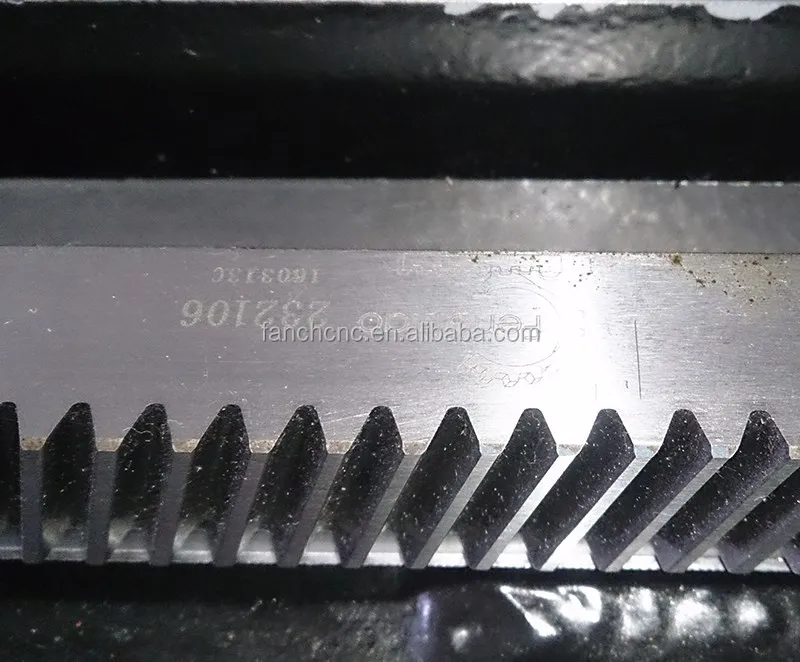

Rack

Name: Helical rack
Brand: Fengmao
Original: Taiwan

 Helical rack can perfectly meet the gear wheels, less deviation, to make higher precision of the position.

Linear rail

Name: Linear rail
Brand: PMI/HIWIN
Original: Taiwan
High specision linear rail 30mm, can make the max moving speed to 80m/min, precison level is P level.

Chiller

Name: Laser cutting chiller

Brand: S&A

Original: China

Top brand chinese laser chiller, it can help to fast cool down the laser cutting machine make sure 24H continuous work.

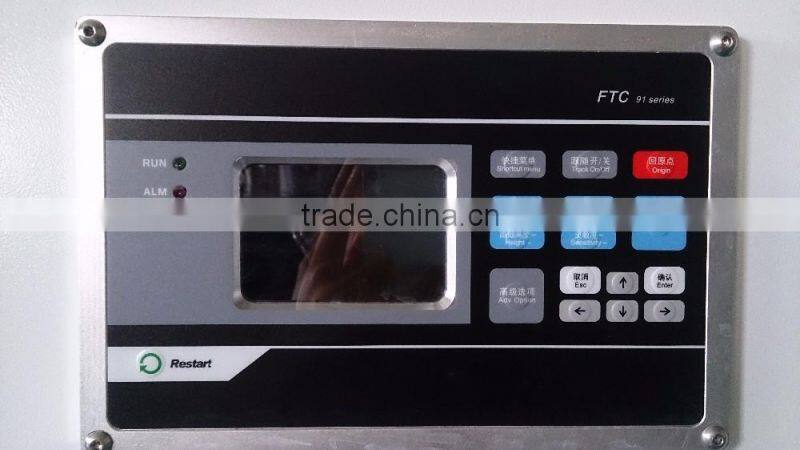

Control system

Name:  Laser cutting Control system
Brand: Leetro
Original: China

Professional CO2 laser cutting system

How to make a FANCH?

● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.

● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutua repulsion between different steel structure parts.

● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.

● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.

● Top brand spare parts further make sure the accuracy, stability and long life span of a Fanch machine.

Woodworking machine factory

Located in Tongzhou district, Beijing, Fanch woodworking factory was stablished in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.

Laser cutting machine factory

Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and domestic sales office can be found here.
