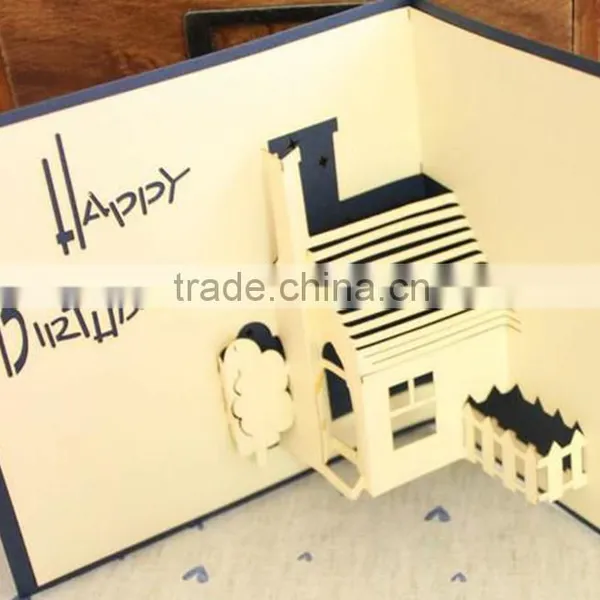

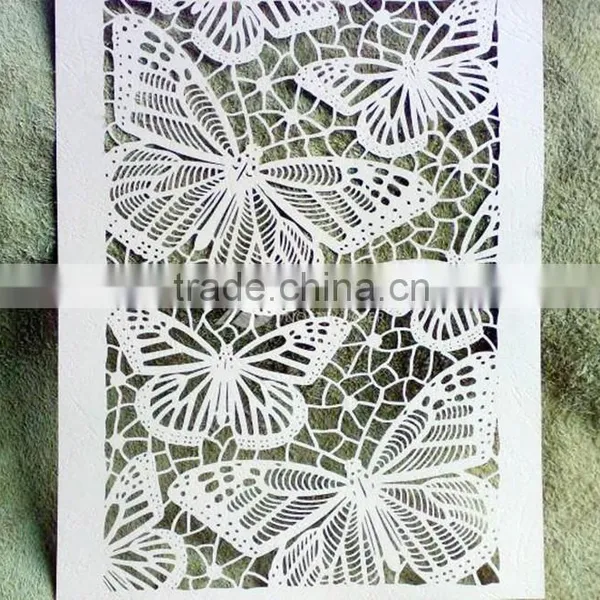

Paper card cutting/carving machine Co2 laser machine for birthday car, wedding card, greet card

Product Application

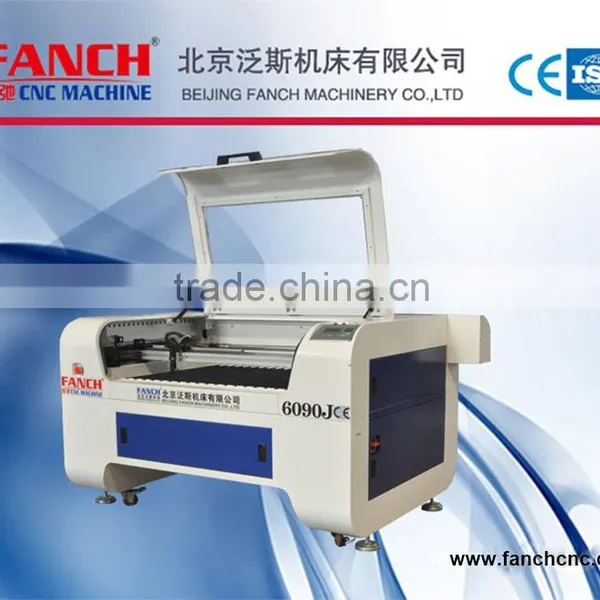

FC-6090J is the Co2 laser cutting/engraving machine, equipped with CCD camera and system, it can be widely used in cutting label, embroidery patch, suit crisps and other cutomized fabric, paper etc.

Main Features

Co2 Laser tube

Name: Co2 laser tube
Brand: EFR
Original: China
Chinese top brand laser tubes

Servo

Name: motor servo
Brand: Yaskawa
Original: Japanese
AV servo, under the power angle closed-loop control, the resistance capacity against load disturbance is improved and the problem of out-of-step is efficiently solved.

Rack

Name: Helical rack
Brand: Fengmao
Original: Taiwan

 Helical rack can perfectly meet the gear wheels, less deviation, to make higher precision of the position.

Linear rail

Name: Linear rail
Brand: PMI/HIWIN
Original: Taiwan
High specision linear rail 30mm, can make the max moving speed to 80m/min, precison level is P level.

Chiller

Name: Laser cutting chiller

Brand: S&A

Original: China

Top brand chinese laser chiller, it can help to fast cool down the laser cutting machine make sure 24H continuous work.

Control system

Name:  SYNTEC Control system
Brand: SYNTEC
Original: Taiwan

NC studio system is optional.

How to make a FANCH?

● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.

● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutua repulsion between different steel structure parts.

● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.

● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.

● Top brand spare parts further make sure the accuracy, stability and long life span of a Fanch machine.

Woodworking machine factory

Located in Tongzhou district, Beijing, Fanch woodworking factory was stablished in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.

Laser cutting machine factory

Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and domestic sales office can be found here.
