300W Fiber Laser Metal Cutting Machine for 5mm Carbon Steel, 2mm Stainless Steel

Product Application

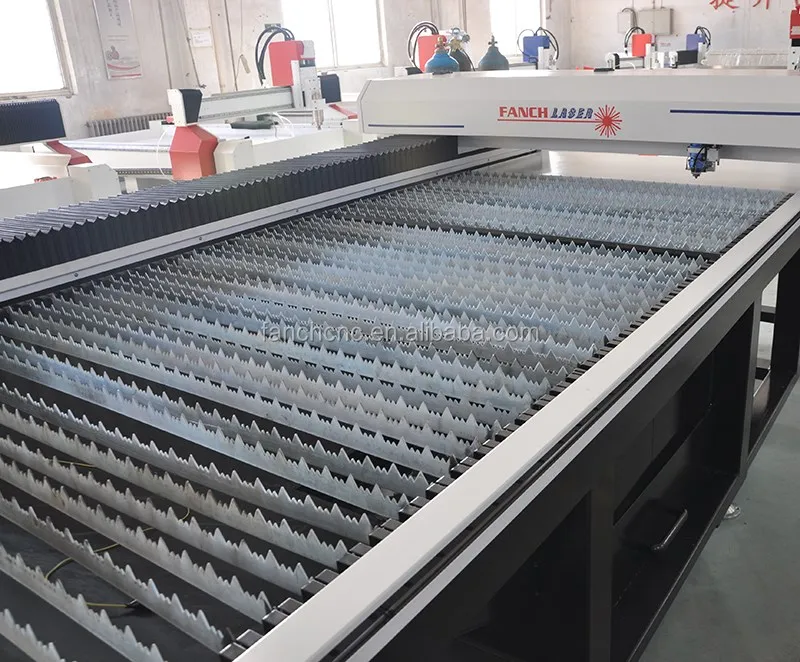

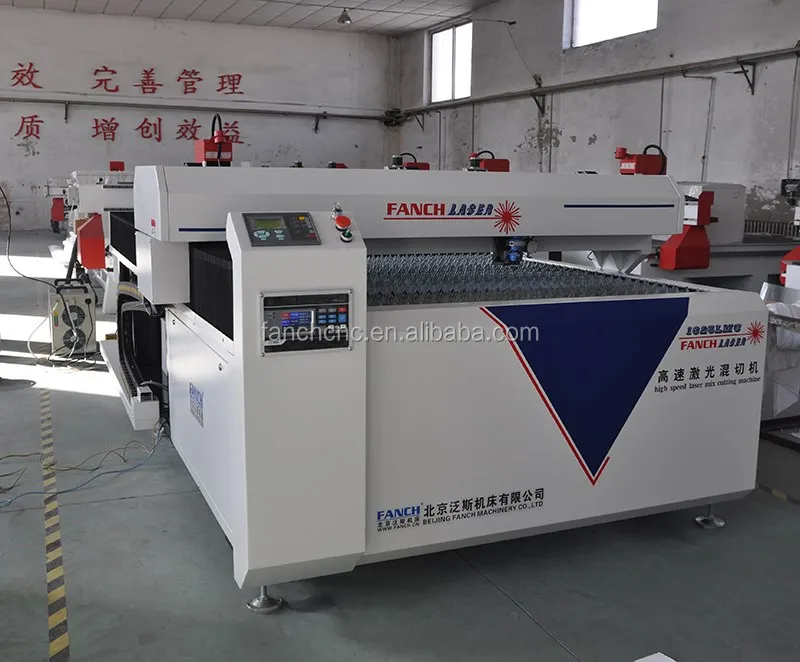

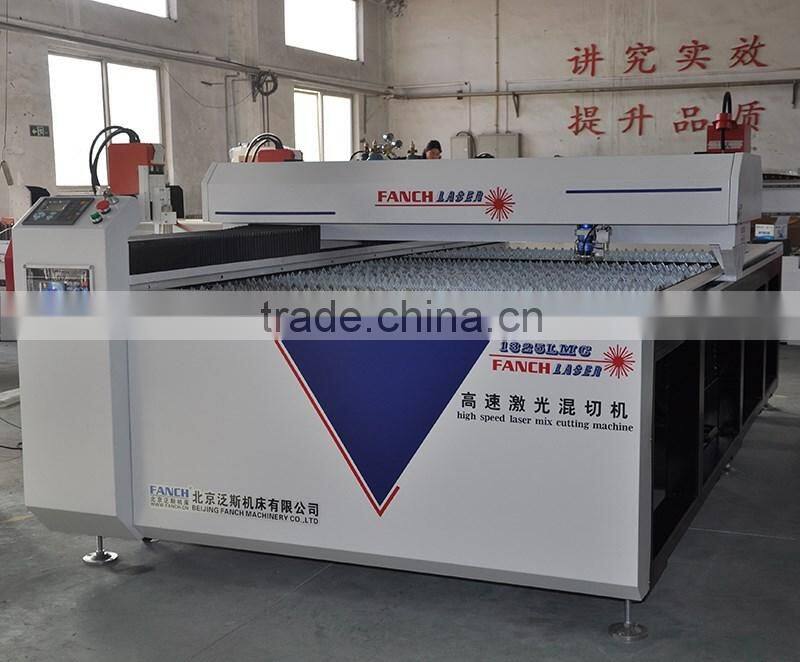

FC1325-300W fiber laser cutting machine adopts domestic 300W CW fiber laser, au3tech laser cutting head and Chengdu Leetro control system, combined with the company's own R & D gantry type CNC machine structure, whole machine bed high strength welding, machine frame quenching by 600 degrees temperature to ensure that no deformation, racks and aluminum dual-platform table, the whole machine weight is 1.5 tons, gantry with overall casting, precision machining, good rigidity and stability. Rack and guide rails adopts high precision level, also equipped with dust system, lubrication system and tow feeding device system. This type machine is with high precision, high speed. It can cut max. 3mm carbon steel and max. 2mm stainless steel, with high quality, high brightness, high conversion rate, maintenance-free, reliable, low running costs and so many other advantages.

Application:

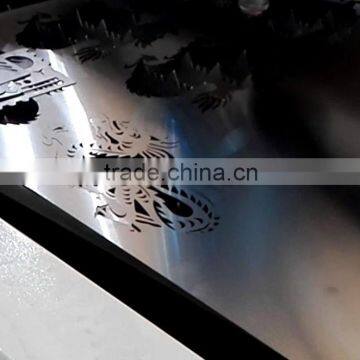

Metal sheet processing, metal products, hardware products, precision machinery, auto parts, glasses, jewelry, nameplates, electronics, toys, advertising and other industries.

Main Features

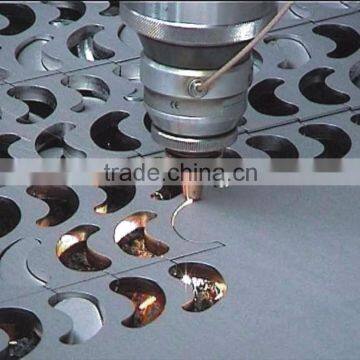

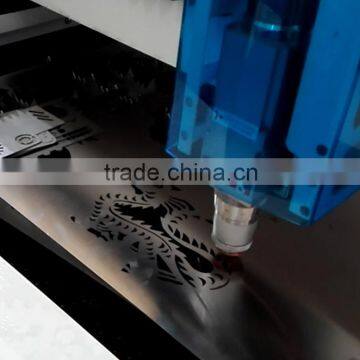

Laser cutting head

Name: fiber laser power
Brand:  au3tech
Original: China
Chinese top brand fiber laser power

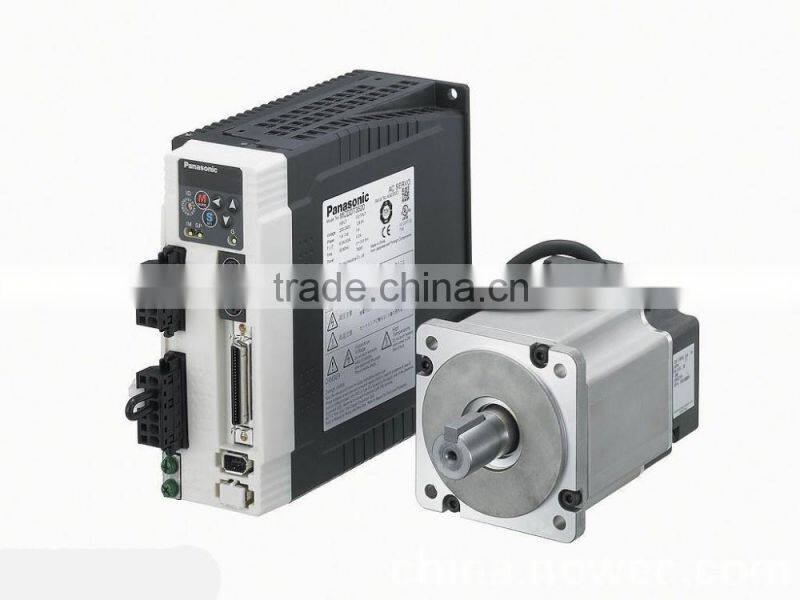

Servo

Name: motor servo
Brand： Panasonic
Original: Japanese
AV servo, under the power angle closed-loop control, the resistance capacity against load disturbance is improved and the problem of out-of-step is efficiently solved.

Rack

Name: Helical rack
Brand: Fengmao
Original: Taiwan

 Helical rack can perfectly meet the gear wheels, less deviation, to make higher precision of the position.

Linear rail

Name: Linear rail
Brand: PMI/HIWIN
Original: Taiwan
High specision linear rail 30mm, can make the max moving speed to 80m/min, precison level is P level.

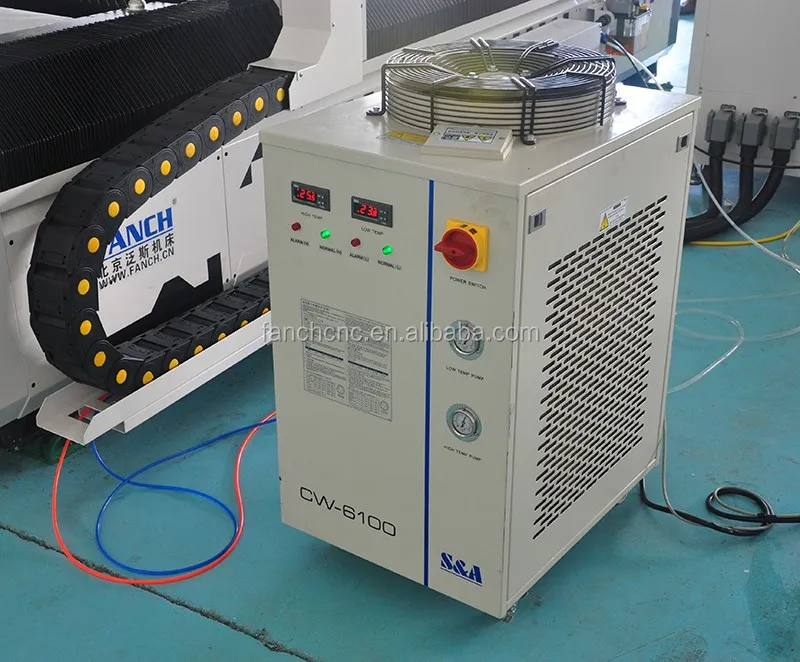

Chiller

Name: Laser cutting chiller

Brand: S&A

Original: China

Top brand chinese laser chiller, it can help to fast cool down the laser cutting machine make sure 24H continuous work.

How to make a FANCH?

● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.

● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutua repulsion between different steel structure parts.

● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.

● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.

● Top brand spare parts further make sure the accuracy, stability and long life span of a Fanch machine.

Woodworking machine factory

Located in Tongzhou district, Beijing, Fanch woodworking factory was stablished in 2006. There are about 100 worker and technicians working in welding, milling and assembly departments.

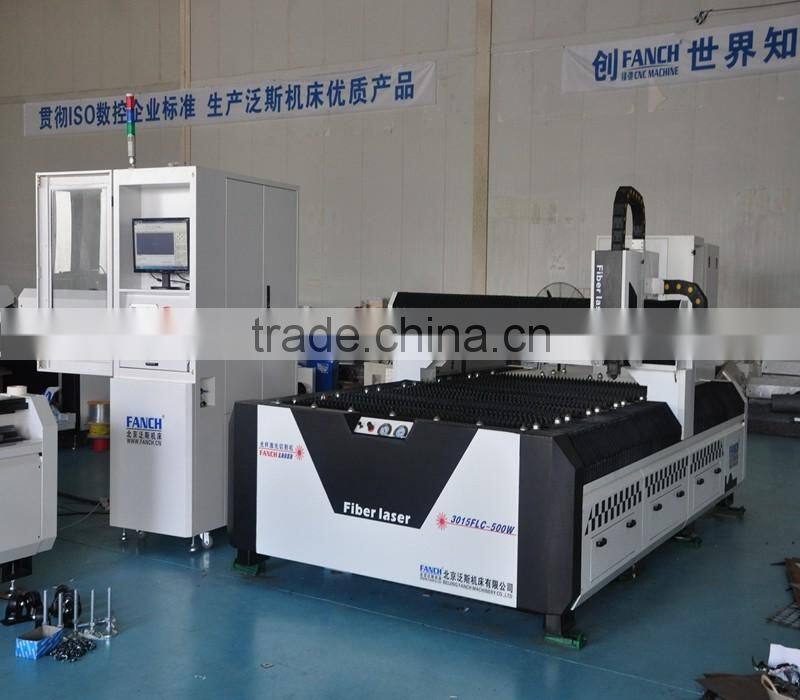

Laser cutting machine factory

Located in National Innovation Industry Park in Tongzhou, Fanch laser machine assembly department, R&D office and domestic sales office can be found here.
