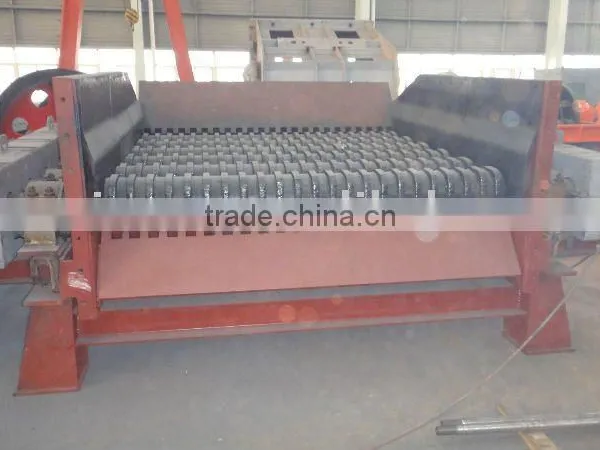

Wobbler Feeder/Roller Feeder NWG2424

Wobbler Feeder/Roller Feeder NWG2424 thumbnail-1
Wobbler Feeder/Roller Feeder NWG2424 photo-1
US$ 62,500 - 156,250 MOQ: 1 Set
Key Specifications
Get Latest Price
Capacity(t/h):
~1800t/h
Place of Origin:
Jiangsu, China
Brand Name:
Sinoma
Contact Supplier Request Quote Chat Now
Sinoma-Liyang Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Seaport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Capacity(t/h) ~1800t/h
Place of Origin Jiangsu, China
Brand Name Sinoma
Model Number NWG
Certification ISO9001:2008
Application Cement industry or mining industry
Warranty One year

Roller Feeder

Features:

       This machine, specially designed for continuous feeding of the crusher, is the equipment complex with both feeding and screening function. The mud-removal by screening reduces the burden of the crusher, avoids the plugging of the crusher, increases the production efficiency, and reduces the energy consumption.

Structural features:

  1. 1.       The screening of the required fine materials and clays in the raw materials increases the production capacity of the crushing system, reduces the wear of the crusher, and the work becomes more reliable.
  2. 2.       For full realizing the working efficiency, the feeding volume can be automatically adjusted according to the load of the crusher.
  3. 3.       This machine is particularly applicable to screening large lump materials. The mud scraper is under the roller, so this machine is also fit for screening viscous materials.
  4. 4.       This machine, with a dual function, no addistional space and no additional equipment cost, is suitable for being used during crushing silicon or aluminum ore.



Main Technical Data

Model

Max. Feed Size

(mm)

Discharge Size(90%)

(mm)



Width

(mm)

Length

(mm)



Capacity

(t/h)

NWG1238

≤600

≤50-75

1236

3650

120-200

NWG1252

≤600

≤50-75

1236

5160

120-200

NWG1538

≤800

≤50-75

1526

3650

200-350

NWG1552

≤800

≤50-75

1526

5160

200-350

NWG1852

≤1000

≤50-75

1826

5160

400-800

NWG2424

≤1500

≤90

2400

2400

1200
