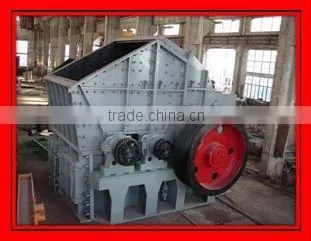

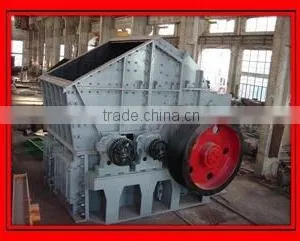

Single-Stage Hammer Crusher PCF2022
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Hammer Crusher | |
| Capacity(t/h) | 50-2100 | Place of Origin | Jiangsu, China | |
| Brand Name | Sinoma | Model Number | PC/PCF/2NPC | |
| Application | Crushing Limestone, Gypsum, Shale etc. |
Product Description
Specifications
Our single-stage hammer crusher has the widest range for capacity, so it is widely used in the cement industry.Single-Stage Hammer Crusher
This series of machines are suitable for crushing limestone, gypsum, coal, marl, sandstone and shale etc. with crushing strength under 200Mpa. They have features of high crushing ratio, uniform discharge size, simple structure, reliable operation, easy maintenance and less running cost etc., so they are widely used in the cement industry.
Main Technical Data
Model | Max. Feed Size (mm) | Discharge Size(90%) (mm)
| Capacity (t/h) | Motor Power (kw) |
PC1609 | 600×600×600 | ≤25 | 50-70 | 110 |
PC1612 | 800×800×800 | ≤25 | 100-140 | 220 |
PCF2012/11 | 500×500×600 | ≤25 | 50-70 | 90-110 |
PCF1412 | 600×600×600 | ≤25 | 80-120 | 130-190 |
PCF1616 | 800×800×800 | ≤25 | 150-240 | 250-350 |
PCF1618 | 800×800×800 | ≤25 | 240-280 | 355-400 |
PCF1817 | 800×800×800 | ≤25 | 280-320 | 400-560 |
PCF1818 | 800×800×1000 | ≤25 | 320-350 | 560-630 |
PCF2018 | 1000×1000×1000 | ≤25 | 350-450 | 630-710 |
PCF2022 | 1000×1000×1500 | ≤25 | 400-600 | 710-800 |
PCF2022 | 1000×1000×1500 | ≤75 | 600-800 | 800-900 |
NPC2025 | 1000×1000×1500 | ≤75 | 900-1000 | 900-1000 |
2NPC1818 | 1000×1000×1500 | ≤75 | 1000-1200 | 2×(560-630) |
2NPC1820 | 1000×1000×1500 | ≤75 | 1200-1300 | 2×(630-710) |
2NPC2020 | 1000×1200×1500 | ≤75 | 1300-1400 | 2×(710-800) |
2NPC2022 | 1000×1200×1500 | ≤75 | 1400-1500 | 2×(800-900) |
2NPC2025 | 1000×1200×1500 | ≤75 | 1500-1700 | 2×(900-1000) |
2NPC2225 | 1000×1200×1500 | ≤75 | 1800-2100 | 2×(1120-1300) |
Note: The discharge size can be adjusted in range of 25~75mm as per the process design.
