CE/ISO Certification 2016 Big Sale Electric Hydraulic Reach Stacker

Name: CE/ISO Certification 2016 Big Sale Electric Hydraulic Reach Stacker
Brand: Jetstar
SKU: 110575265
Availability: InStock

US$ 2,900 - 5,800 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Jetstar

Taizhou Jetstar Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Jetstar

Model Number QYD-1045

Type Powered Pallet Truck

Power Souce DC Motor

Rated Loading Capacity 1/1.2/1.5 T

Max. Lifting Height 2500mm

Min. Lifting Height 90mm

Fork Length 1150mm

Fork Width 180mm

Overall Dimensions 1988*850*1975mm

Certification CE

After-sales Service Provided Overseas third-party support available

CE/ISO certification 2016 Big Sale Electric Hydraulic Reach stacker

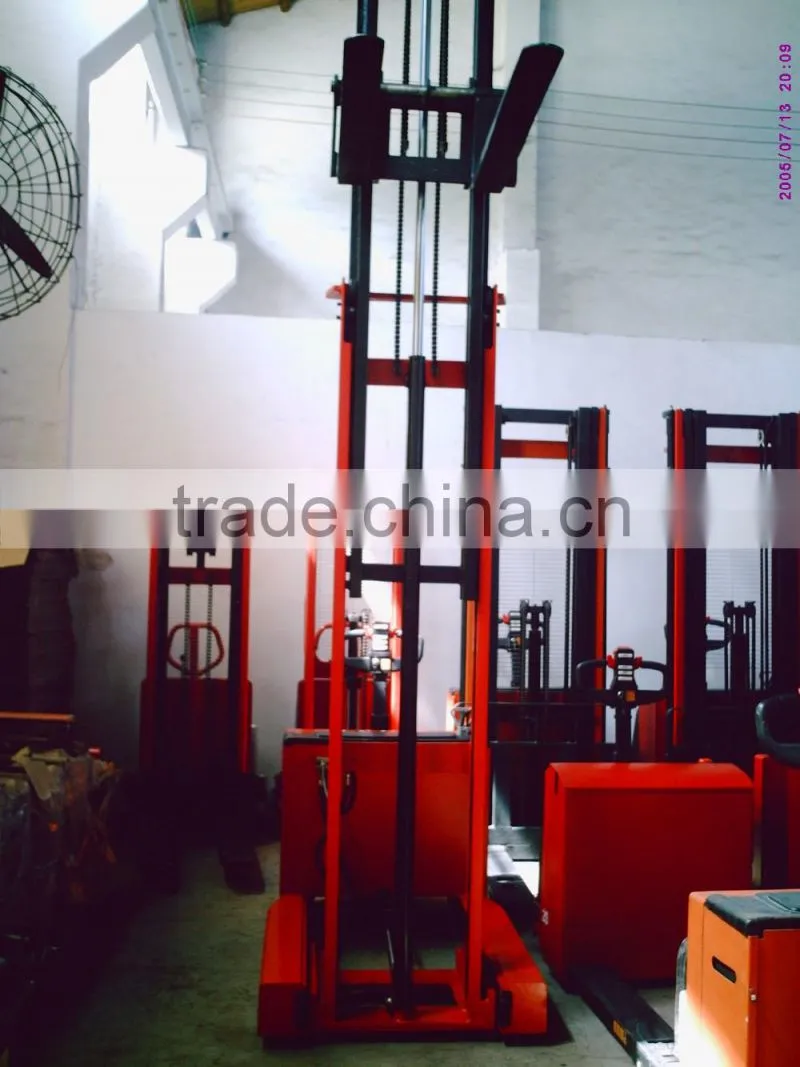

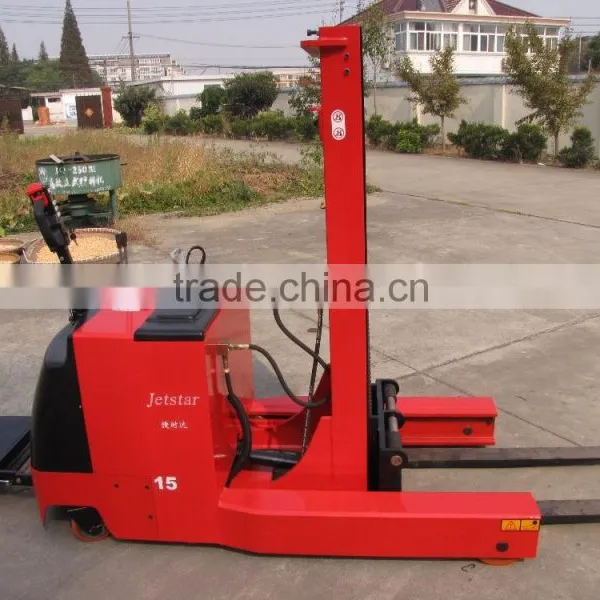

Pictures

Technical Data

Model		Unit	QYD-1045
Rated capacity		kg	1000
Max. Lifting height		mm	4500
Rated load center		mm	400
Min. Terrain clearance		mm	75
Max. Lifting speed	Unloaded	mm/s	132
Max. Lifting speed	Loaded	mm/s	98
Max. Lowering speed	Unloaded	mm/s	157
Max. Lowering speed	Loaded	mm/s	191
Max. Traveling speed	Unloaded	mm/s	7.9
Max. Traveling speed	Loaded	mm/s	7.1
Climbing slope with loaded		%	5
Rated pressure of oil pump		Mpa	12
Drive motor power		kw	2
Oil pump motor power		kw	2
Min. turning radius		mm	1375
Braking Form			Electromagnetic braking
Min. right angle passage width		mm	2895
Adjusting distance of fork	Min	mm	220
Adjusting distance of fork	Max	mm	540
Storage battery	Voltage	V	24
	Capacity	Ah	210
	Weight	kg	185
Net weight		kg	1920
Drive wheel		mm	Φ250×80
Front wheel		mm	Φ200×80
Traveling motor			1.2kw/24V
Lifting motor			2.0kw/24V
