Help CenterFactory Outlet CE/ISO Certification Small Electric Hydraulic Stacker
Related Products
-
5.5 M Height Factory Outlet Electric Hydraulic Stacker ForkliftUS$ 3,200 - 6,500MOQ: 1 Set -
4.5m Height Efficent Battery Hydraulic Stacker ForkliftUS$ 3,000 - 6,000MOQ: 1 Set
-
Hot Sale Hydraulic Lift Reach Electric Stacker for Sale Quality ChoiceUS$ 2,000 - 8,000MOQ: 1 Unit
-
Top Product Full Electric Stacker Pallet Stacker for StorehouseUS$ 2,000 - 8,000MOQ: 1 Unit
-
2015 New Material Triple Mast Battery Charger Walking Electric StackerUS$ 2,000 - 8,000MOQ: 1 Unit

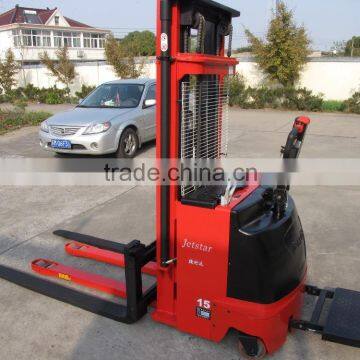

Factory Outlet CE/ISO Certification Small electric hydraulic stackers are designed to operate in narrow passage and limited space, and are ideal facilities to load/unload and stack goods in stacking warehouse, supermarket and workshop etc. these trucks have following features and benefits, human system engineering design, continusous y variable drive, wide view mast assembly made of germang steel, maximum lifting height 6 meters, with optional standing plat.
General | Model | Unit | HL10 | HL12 | HL15 | |
Rated load capacity | kg | 1000 | 1200 | 1500 | ||
Power |
| Tractive-type battery | ||||
Operator type |
| Pedestrian / rider (pedal) | ||||
Characteristics | Maximum lifting height | mm | 1600 | 1600 | 1600 | |
Lowered height of fork | mm | ≤90 | ≤90 | ≤90 | ||
Minimum turning radius | mm | 1425 | 1425 | 1650 | ||
Minimum aisle width | mm | 2300 | 2300 | 2500 | ||
Minimum ground clearance | mm | 30 | 30 | 30 | ||
Standard fork length | mm | 1150 | 1150 | 1150 | ||
Standard fork width | mm | 160 | 175 | 175 | ||
Fork overall width | mm | 560 | 570 | 570 | ||
Fork individual width | mm | 240 | 220 | 220 | ||
Chassis | Overall length | mm | 1800 | 1800 | 1988 | |
Overall width | mm | 850 | 850 | 1000 | ||
Mast extended height | mm | 1975 | 1975 | 1975 | ||
Mast lowered height | mm | 1975 | 1975 | 1975 | ||
Performance | Maximum traveling speed | Laden | km/h | 4 | 4 | 4 |
Unladen | km/h | 6 | 6 | 6 | ||
Maximum lifting speed | Laden | mm/h | 80 | 80 | 80 | |
Unladen | mm/h | 130 | 130 | 130 | ||
Maximum lowering speed | Laden | mm/h | 110 | 110 | 110 | |
Unladen | mm/h | 90 | 90 | 90 | ||
Gradeability | Laden | % | 5 | 5 | 5 | |
Unladen | % | 8 | 8 | 8 | ||
Brake | Braking type |
| Electromagnetic | |||
Wheel | Wheel type front/rear |
| Poly/Poly | |||
Wheels |
| 1×Driven wheel,2×Balance wheel,4×Front wheel | ||||
Balance wheel dimension | mm | Φ156×50 | Φ156×50 | Φ156×75 | ||
Axis space | mm | 1228 | 1228 | 1450 | ||
Motor | Driving motor | kw | 1.2 | |||
Lifting motor | kw | 2.2 | ||||
Battery | Battery(Voltage/Capacity) | V/Ah | 12/120×2 | 12/165 | 24/210 | |
Control | Control system |
| Curtis I207a | |||
Weight | Weight | kg | 650 | 690 | 690 | |
Hong Kong Investment Taizhou Jetstar Machinery Equipment Co. Ltd.
Packaging&shipment
More Products maybe you interested, please contact us
TaiZhou Jetstar Machinery Equipment Co.,Ltd.
address: No.48 Renjing Road, TaiZhou City,JiangSu Province, China
Tel: +86 15896005039
Fax: +86 523 86573337Email: 15896005039(at) & mandy_huo(at)whatsapp:+86 158 9600 5039
