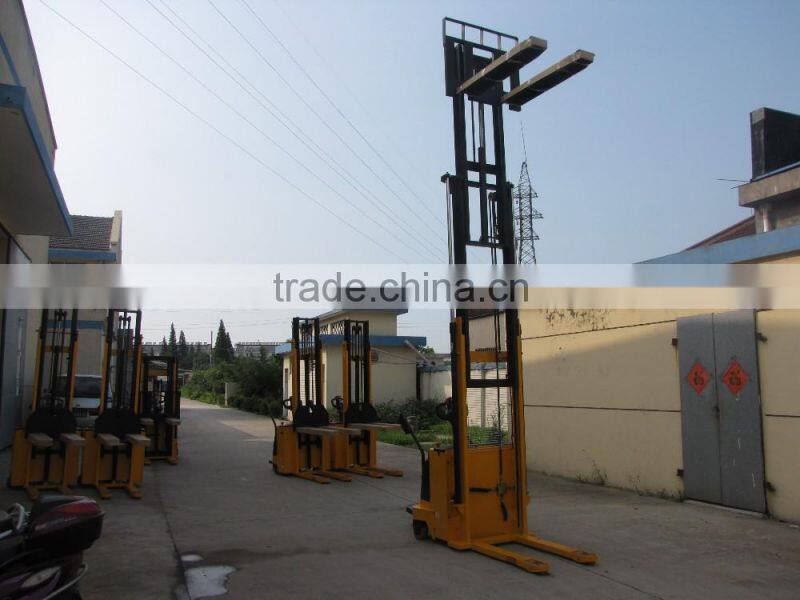

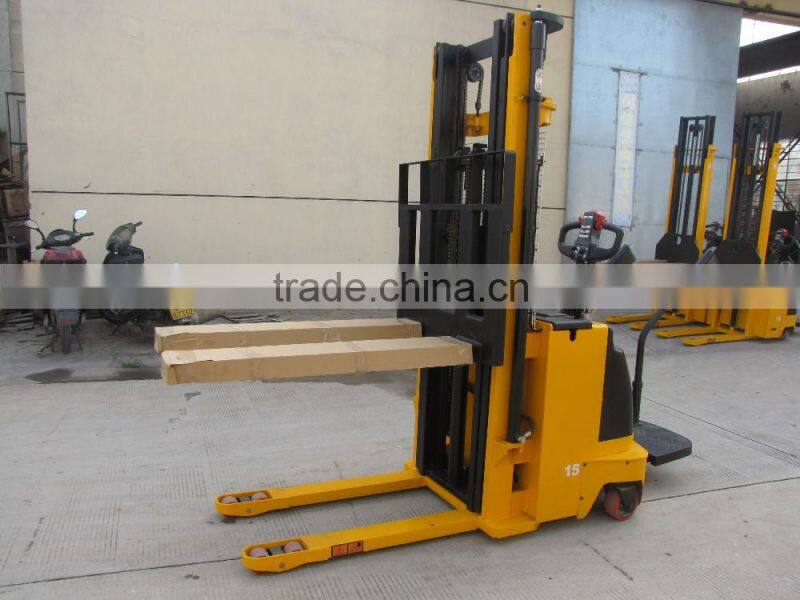

Jetstar Factory Outlet electric hydraulic stacker
Jetstar Factory Outlet electric hydraulic stacker s are designed to operate in narrow passage and limited space and are ideal facilities to load/unload and stack goods in stacking warehouses, suoermarket and workshop etc. these trucks can be moved and operated easily and swiftly, with similar function to the electric stackers.
General |
Model |
Unit |
HL15 |
|
Rated load capacity |
kg |
1500 |
||
Power |
|
Tractive-type battery |
||
Operator type |
|
Pedestrian / rider (pedal) |
||
Characteristics |
Maximum lifting height |
mm |
5500 |
|
Lowered height of fork |
mm |
≤90 |
||
Minimum turning radius |
mm |
1650 |
||
Minimum aisle width |
mm |
2800 |
||
Minimum ground clearance |
mm |
30 |
||
Standard fork length |
mm |
1150 |
||
Standard fork width |
mm |
175 |
||
Fork overall width |
mm |
570 |
||
Fork individual width |
mm |
220 |
||
Chassis |
Overall length |
mm |
1988 |
|
Overall width |
mm |
1000 |
||
Mast extended height |
mm |
5940 |
||
Mast lowered height |
mm |
2485 |
||
Performance |
Maximum traveling speed |
Laden |
km/h |
4 |
Unladen |
km/h |
6 |
||
Maximum lifting speed |
Laden |
mm/h |
80 |
|
Unladen |
mm/h |
130 |
||
Maximum lowering speed |
Laden |
mm/h |
110 |
|
Unladen |
mm/h |
90 |
||
Gradeability |
Laden |
% |
5 |
|
Unladen |
% |
8 |
||
Brake |
Braking type |
|
Electromagnetic |
|
Wheel |
Wheel type front/rear |
|
Poly/Poly |
|
Wheels |
|
1×Driven wheel,2×Balance wheel,4×Front wheel |
||
Balance wheel dimension |
mm |
Φ156×75 |
||
Axis space |
mm |
1450 |
||
Motor |
Driving motor |
kw |
1.2 |
|
Lifting motor |
kw |
2.2 |
||
Battery |
Battery(Voltage/Capacity) |
V/Ah |
24/210 |
|
Control |
Control system |
|
Curtis I207a |
|
Weight |
Weight |
kg |
1380 |
|
