HV transformer for ozone generator
************************************************************

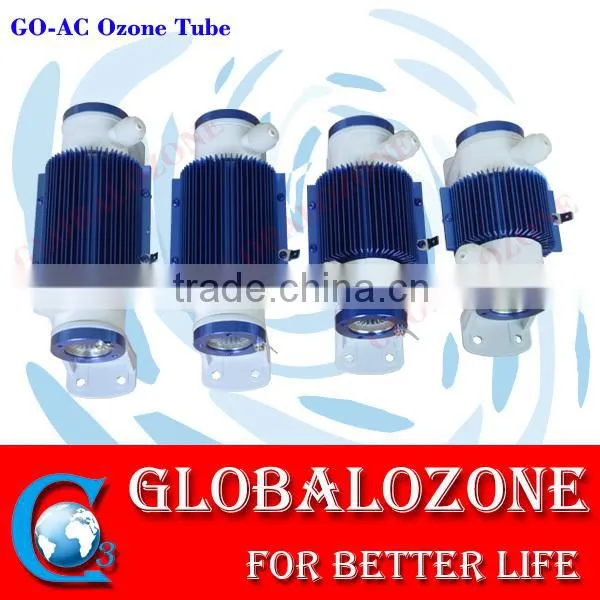

GO-AC ceramic ozone tube
Features:
1. It is the patent product of our company.
2. Ozone output: 2G/Hr 3G/Hr, 5G/Hr, 6G/Hr adjustable
3. Using with adjustable electric card, that’s Ozone output could be regulated from 20% to 100% based customer’s demand.Or using with enclosed electric card, which is best for water proof.
4. We are using imported ceramic powder for ceramic ozone tube; SS316L internal electrode; PVDF material connectors for ensuring several years running without ozone leakage.
5. Internal & external electrodes are both using with aluminum radiator which is good at heating dissipation.
6. Extremely high ozone concentration, about 28-68Mg/L for different pure oxygen flow, different working condition.
7. Low power consumption, power consumption rate of 8~10KW.h/kgO3.
************************************************************
Specifications
Item |
Unit |
GO-AC |
||||
2GE |
2GA |
3GE |
3GA |
|||
Oxygen feed flow rate |
LPM |
0.5-2 |
1-3 |
|||
Ozone concentration |
Mg/L |
50.3-28 |
65-28 |
|||
Ozone output |
G/Hr |
1.5-3.36 |
3.9-5.04 |
|||
Power |
Kw |
0.040 |
0.050 |
|||
Output frequency |
KHz |
7-15 |
||||
High voltage output |
V |
3600V Peak to Peak |
||||
Power supply dimensions |
mm |
138*56*41 |
157*71*65 |
138*56*41 |
157*71*65 |
|
Location of mounting holes of power supply |
mm |
127(4) |
141.5*63(3) |
127(4) |
141.5*63(3) |
|
Cooling method |
/ |
Air cooling for internal and external electrode |
||||
Fitting size for air & ozone |
mm |
5*7 |
||||
Ozone output adjustable range |
% |
/ |
20-100 |
/ |
20-100 |
|
Dew point |
℃ |
-45 |
||||
Line power supply |
V/Hz |
220V/110V 50Hz/60Hz |
||||
Ozone tube dimensions |
mm |
162×60 |
182×60 |
|||
Ozone tube weight |
Kg |
0.29 |
0.34 |
|||
Power supply weight |
Kg |
0.17 |
0.33 |
0.17 |
0.33 |
|
Item |
Unit |
GO-AC |
|||
5GE |
5GA |
6GE |
6GA |
||
Oxygen feed flow rate |
LPM |
1-3 |
1-2.5 |
||
Ozone concentration |
Mg/L |
67-44 |
50-39 |
||
Ozone output |
G/Hr |
4.02-7.92 |
3-5.85 |
||
Power |
Kw |
0.066 |
0.085 |
||
Output frequency |
KHz |
7-15 |
|||
High voltage output |
V |
3600V Peak to Peak |
|||
Power supply dimensions |
mm |
159*66*51 |
157*71*65 |
159*66*51 |
157*71*65 |
Cooling method |
/ |
Air cooling for internal and external electrode |
|||
Ozone output adjustable range |
% |
/ |
20-100 |
/ |
20-100 |
Dew point |
℃ |
-45 |
|||
Line power supply |
V/Hz |
220V/110V 50Hz/60Hz |
|||
Ozone tube dimensions |
mm |
200×60 |
227×60 |
||
Ozone tube weight |
Kg |
0.40 |
0.43 |
||
Power supply weight |
Kg |
0.32 |
0.33 |
032 |
0.33 |
************************************************************

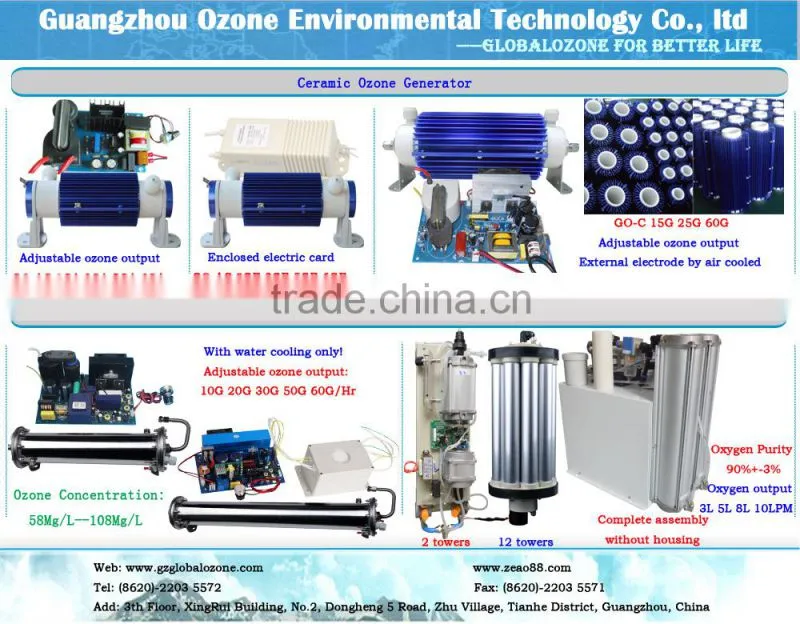

Details of ceramic ozone tube

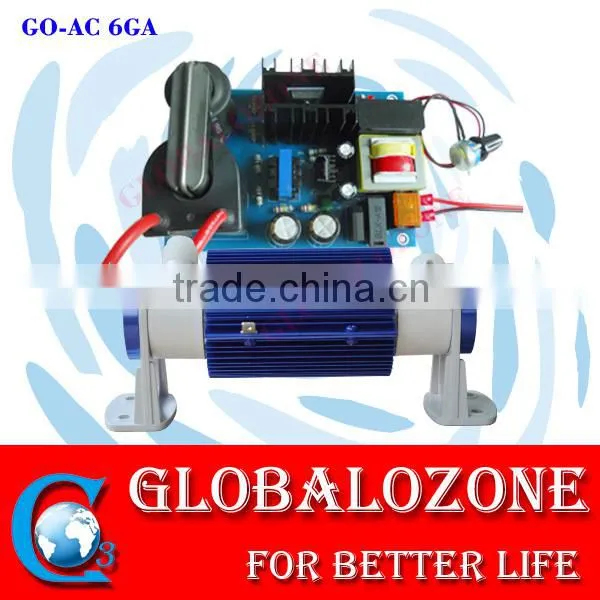

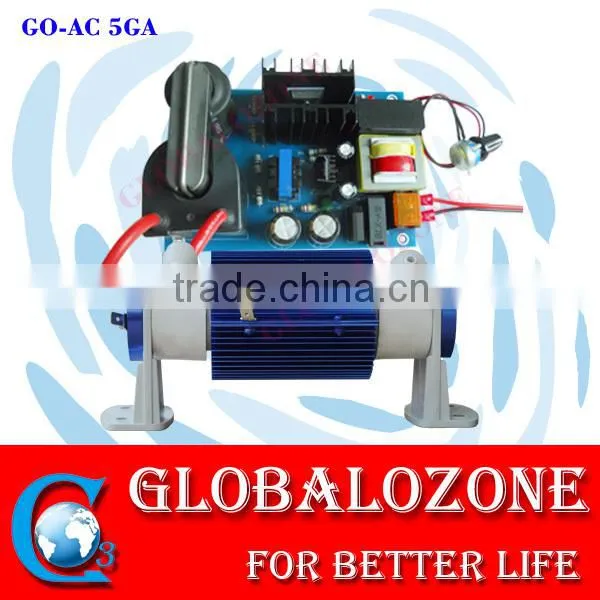

Ceramic ozone tube assembled with adjustable electric transformer
Ceramic ozone tube assembled with water proof enclosed electric transformer
************************************************************

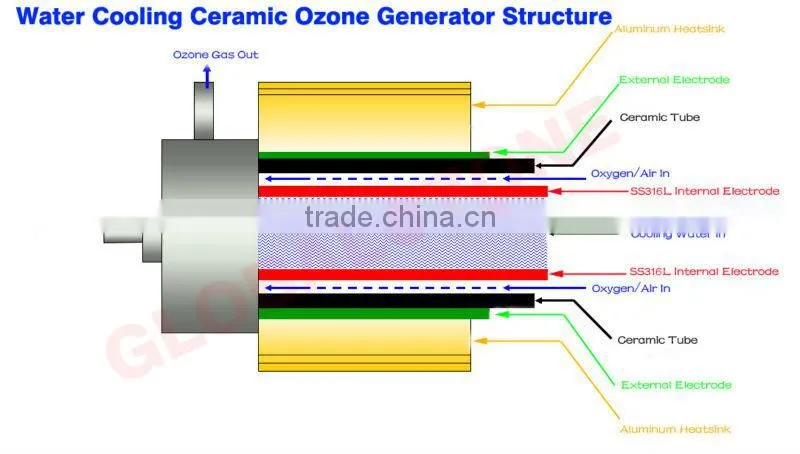

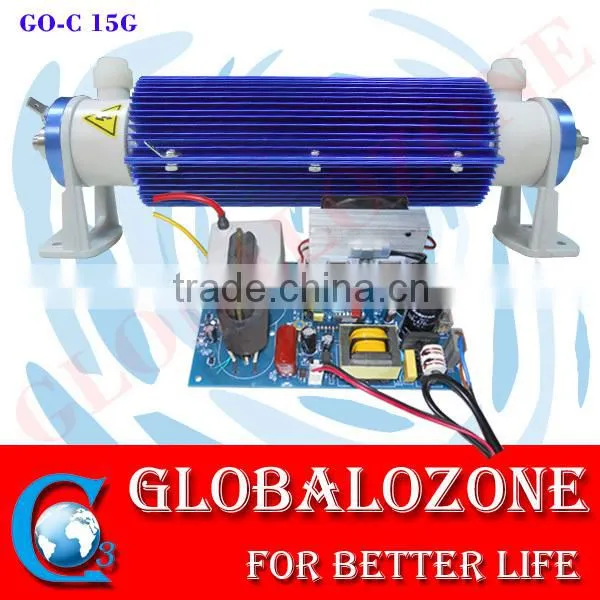

Water cooling ceramic ozone tube 15G/Hr, 25G/Hr

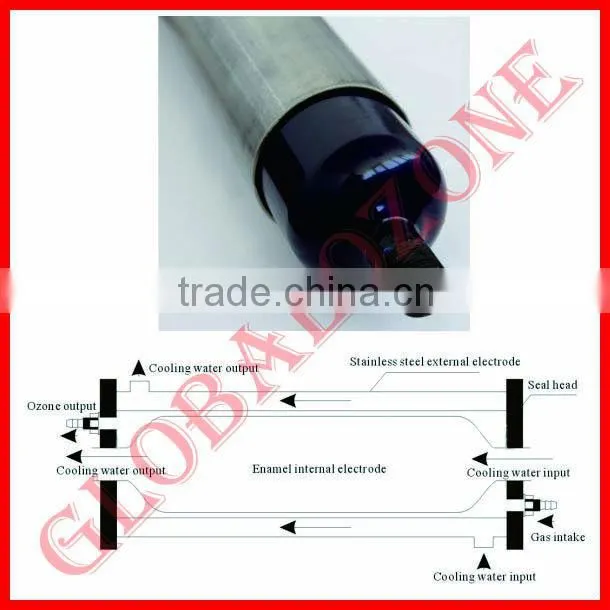

Water cooling enamel ozone tube
************************************************************
Why our ceramic ozone tube?
**************************************************************************

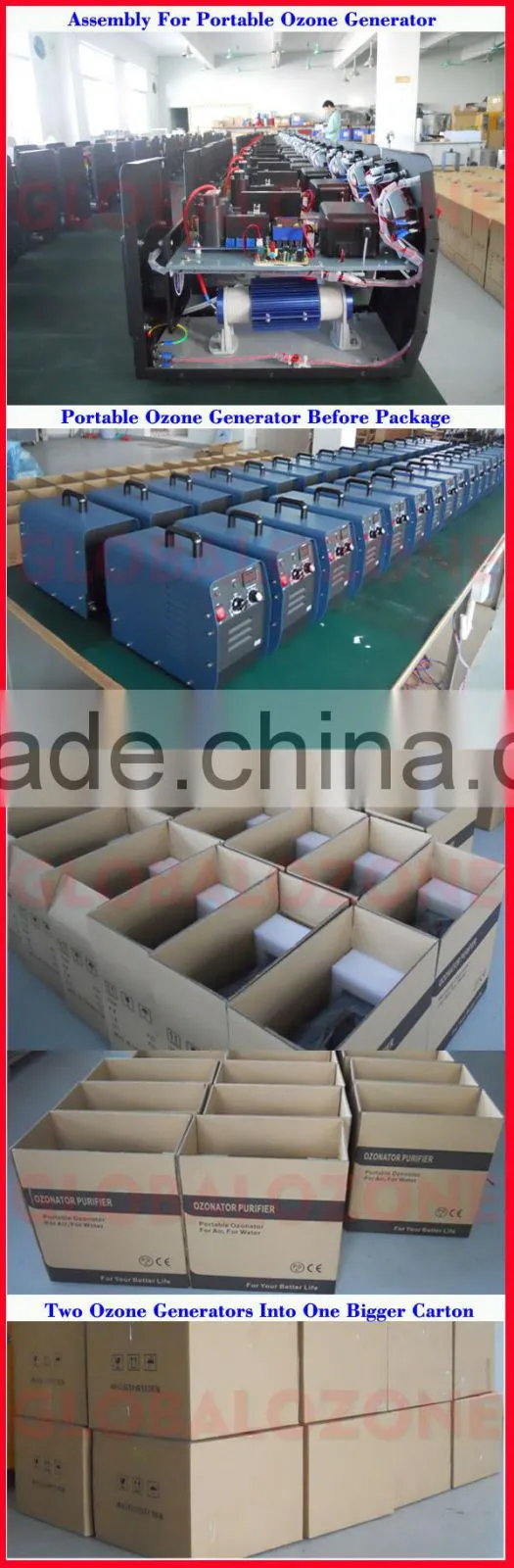

Ozone machine assembled with ceramic ozone generator tube & Package
**************************************************************************
Ozone & Oxygen Spare Parts
**************************************************************************
Prompt delivery
1. 3-7 days for sample order;
2. 10-30 days for mass productions order;
3. Shipping could be courier, airline or sea.
********************************************************************************************
Excellent after-sales service:
- 1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
- 2M silicone tube and 2PCS air stone gift for any ozone machine order.
- Report on the making process.
- Marketing feedbacks tracing.
********************************************************************************************
About US
WHAT WE DO?
We Provide high-quality ozone tubes/ozone machines for:
Ozone tubes/ozone machines wholesalers
Retailers and oneline shops (Ebay, Amazon...)
OEM-The custom-made ozone tubes/ozone machines are available. Upon customer's idea, drawings, photos etc.
ODM-The modification of the ozone tubes/ozone machines after customer's selection is accepted.
All of our products are favored and trusted by customers with contemporary design (simplicity, innovation, practicability, multifunction and fashion), convenient operate, durable and its competitive price.
Please don't hesitate to contact with us, you are strongly expecting and welcoming to be the one of our partners in the coming day!
Factory & Office
Please do not hesitate contact with us if you are interested in our products!
Tips:
110V 220V are both available, when you make order pls kindly note us the voltage, thanks a lot!
