10-60G water cooled ozone water purifier
**********************************************************************
Features
*High voltage electrode
*Symmetrical enamel coating
*SS housing
*Unifority air gap
*Corona discharge
*Insulation connections
*High ozone concentration output range 20%-100%
*For large-scale water & air treatment
**********************************************************************
Electrodes
1.Use a high voltage electrode with enamel coating as internal electrode, stainless steel housing as external electrode.
2.Uniformity air gap between enamel coating internal electrode and stainless steel housing, it produces high concentration ozone output.
3.Using insulation materials for connections, for preventing creepage discharge.
Cooling method
Ozone tube is water cooled type unit, cooling water will take away the heat which released by ozone tubes. Clean cooling water could be recycled and be cooling down by outside process.
Using longer elbow water connection for cooling water output to prevent water leakage into ozone tube.
Adjustable type electric card with adjustable ozone output
Ozone output could be regulated from 20% to 100% based customer’s demand.
**********************************************************************
Specifications For 10G-60G/Hr Enamel Ozone Generator
Item |
Unit |

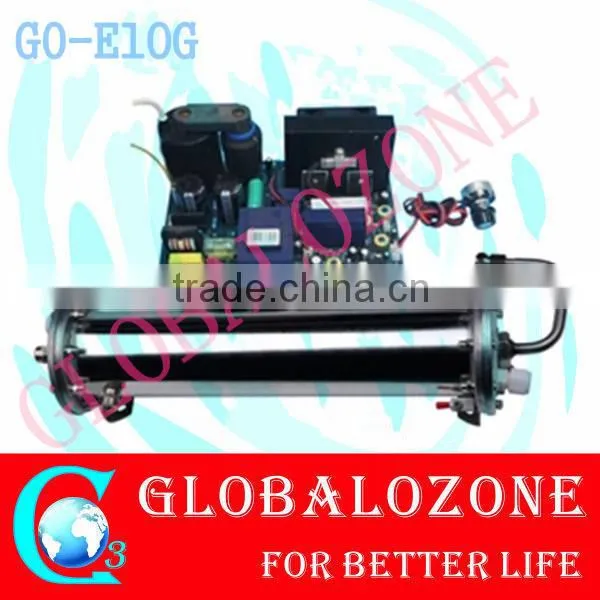

GO-E 10G |
GO-E 20G |

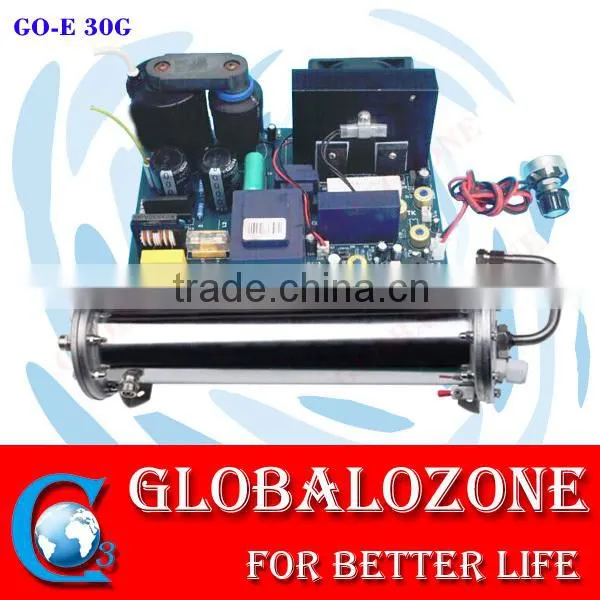

GO-E 30G |
GO-E 50G |

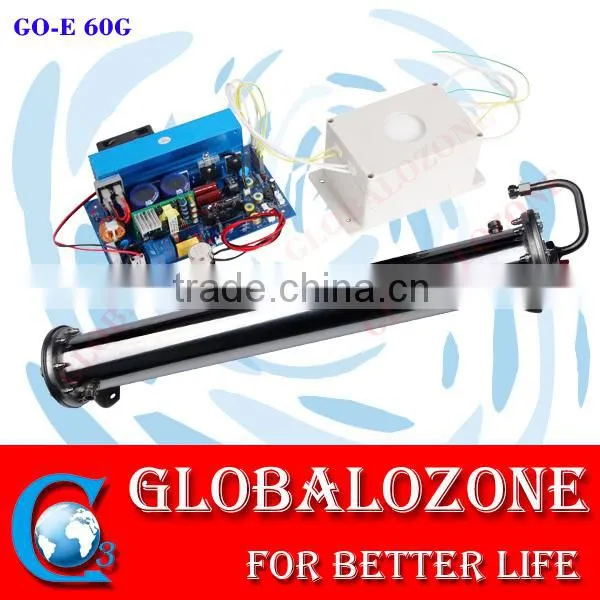

GO-E 60G |
Oxygen flow rate |
LPM |
1-3 |
2-6 |
3-10 |
5-15 |
8-18 |
Ozone concentration |
Mg/L |
88-58 |
88.6-57 |
87.5-56.8 |
90-56 |
90-60 |
Ozone output |
G/Hr |
5.28-10.44 |
10.63-20.52 |
15.75-34.08 |
27-50.40 |
43.2-64.80 |
Power |
Kw |
0.2 |
0.28 |
0.38 |
0.55 |
0.75 |
Output frequency |
KHz |
2400 |
||||
High voltage output |
V |
2800 |
||||
Cooling method |
Water cooling for internal & external electrodes |
|||||
Cooling water flow rate |
LPM |
30 |
48 |
|||
Cooling water temperature |
℃ |
35 |
||||
Fitting size |
mm |
1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm |
||||
Adjustable range |
% |
20-100 |
||||
Power supply |
V/Hz |
110/220V 50/60HZ |
||||
Fuse |
A |
3 |
5 |
|||
Ozone tube dimension |
mm |
250×105×125 |
310×105×125 |
430×105×125 |
575×105×125 |
778×105×125 |
Mounting hole foot print of ozone tube |
mm |
127×44(φ5) |
195×44(φ5) |
320×44(φ5) |
450×44(φ5) |
555×44(φ5) |
Power supply dimension |
mm |
200×100×85 |
190×150×85 |
210×150×80 |
||
Mounting hole foot print of power supply |
mm |
155×127 |
155×127 |
192×177 |
192×177 |
243×208 |
Ozone tube weight |
Kg |
2.50 |
3.00 |
3.60 |
4.90 |
5.45 |
Power supply weight |
Kg |
1 |
2.40 |
|||
**********************************************************************
Details of Enamel Ozone Generator
Ozone PK UV
**********************************************************************
Packaging
A) Inner layer: plastic bag
B) Middle layer: EPE(Expand aple poly ephylene)
C) Outer Layer: carton/composite wooden cases
Payment terms
Prompt delivery
1. 3-7 days for sample order;
2. 10-30 days for mass production order;
3. Shipping could be courier, airline or sea.
**********************************************************************
About US
WHAT WE DO?
We Provide high-quality ozone generator & ozone generator parts for:
Ozone generator & Ozone generator parts wholesalers
Retailers and oneline shops (Ebay, Amazon...)
OEM-The custom-made ozone generator & ozone generator parts are available. Upon customer's idea, drawings, photos etc.
ODM-The modification of the ozone generator & ozone generator parts after customer's selection is accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
2M silicone tube and 2PCS air stone gift for any ozone machine order.
Report on the making process.
Marketing feedbacks tracing.
All of our products are favored and trusted by customers with contemporary design (simplicity, innovation, practicability, multifunction and fashion), convenient operate, durable and its competitive price.
Please don't hesitate to contact with us, you are strongly expecting and welcoming to be the one of our partners in the coming day!
Factory & Office
If you are intersted in our products, please do not hesitate contact us!
Tips:
1. If use it for water treatment, please use check valve (we can provide) together for preventing water into machine.
2. Please use dry air/oxygen as gas source.
3. Please use clean water for cooling.
