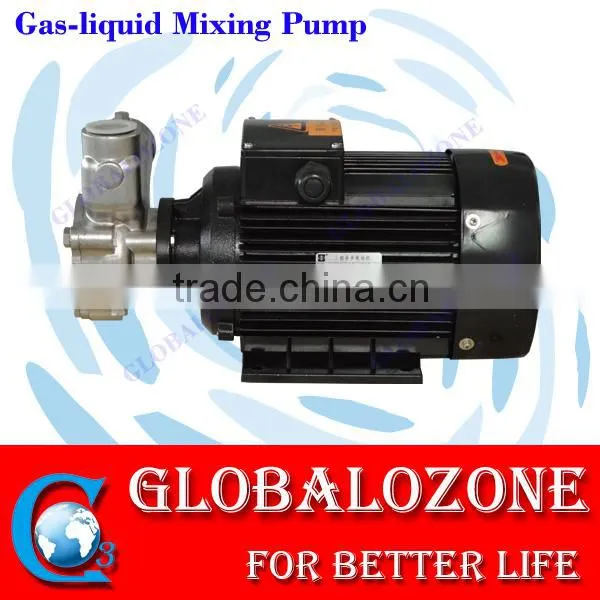

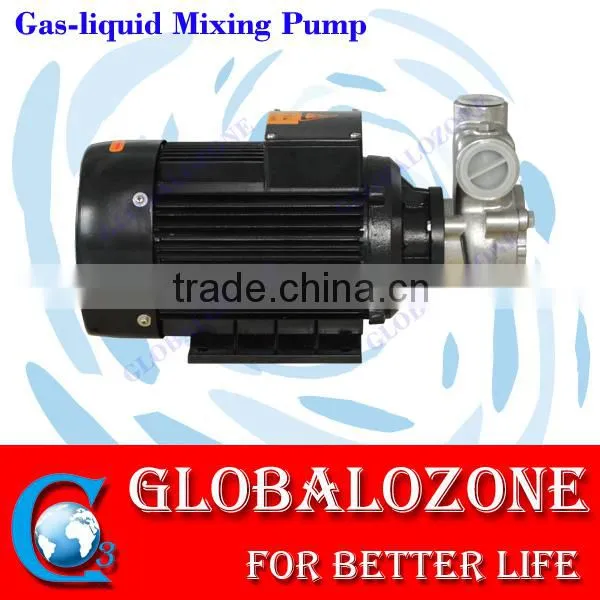

micro bubble generator /mixing pump
*********************************************************************

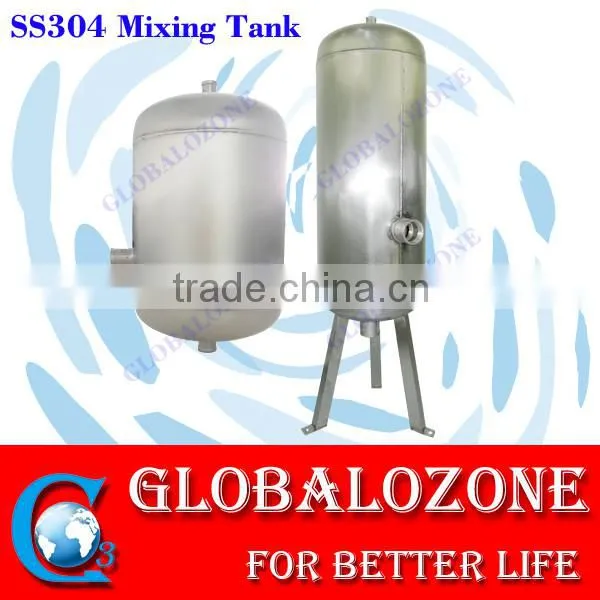

* SS304 material mixing tank
* Water flow: 1T/Hr,2T/Hr, 6T/Hr and 12T/Hr
* Micro bubbles or Nano bubbles mixing pump for waste water treatment
*********************************************************************
*It can suck water while sucking gas and pressurize and mix them inside it. Ultra fine air bubble 20~30µ. It renders a good gas liquid solving effect.
*It has stable performances, high efficiency and low noise level, and its gas liquid solving efficiency is as high as twice that of the traditional mode.
* When it is used in air suspension unit, air compressors, various mixers, high pressure air solving tanks and releasers may be saved and thus the weakness of instable air supply and boiling of large air bubble which likely occur in traditional working model will be eliminated.
*When it is used in ozone water preparing equipment, many mixers and large oxidation towers may be saved and thus the cost for equipment will be greatly reduced. In addition, its gas liquid solving ratio may exceed 95%.
*It is simple in structure and operation, easy in maintenance and durable and needs less components. It has a good self suction capacity and a wide application range.
*********************************************************************
Application
* Air suspension treating equipment, ozone water preparing equipment, and biological treatment equipment.
* Feeding of heating or cooling medium for various temperature adjusting devices.
* Various filters: sucking or high pressure transferring low viscosity liquid from underground tank, such as gasoline and various solvent.
* Misting treatment of clear water, pure water, foods, chemical solution and waste solution.
* Strict applications (continuous running, abruot variation in hydraulic pressure): such as small scale stream boiler, high building water supply, high pressure water injection to high pressure tank, and suction from vacuum tank.
* Sampling from river or tank, transfer foamable liquid, transfer liquid through long and horizontal pipeline, where air pockets likely occur.
*********************************************************************
Working condition:
*GO and GOL designed for clear and low viscosity liquid, or liquid containing extra-fine foreign matters.
*GOB and GOLB design for clear and low viscosity liquid, or explosive flammable liquid which containing very little solids.
* Liquid temperature: -150C ~ 1200C
*Maximum ambient temperature: +400C
* Gas-liquid ratio 1:9 (Gas suction volume 8~10%)

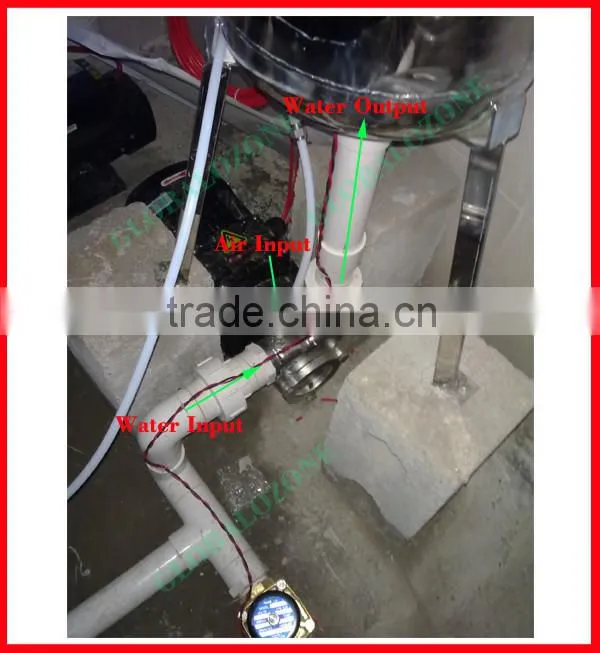

*Inlet: horizontal, Outlet: Vertical
********************************************************************
Specifications
Item |
20GO-1SS |
20GO-1DS |
25GO-2SS |
25GO-2DS |
40GO-6SS |
50GO-12 |
Head of delivery |
40M |
50M |
||||
Flow rate |
1T/Hr |
2T/Hr |
6T/Hr |
12T/Hr |
||
Water input size |
0.75’’ |
1’’ |
1.5’’ |
2’’ |
||
Water output size |
0.5’’ |
0.75’’ |
1.2’’ |
1.5’’ |
||
Power |
0.55Kw |
1.1Kw |
3Kw |
5.5Kw |
||
Voltage |
380V |
220V |
380V |
220V |
380V |
380V |
Speed |
2900r/min |
|||||
Size of Tank |
φ200×320mm (3mm thickness) |
φ273×720mm (3mm thickness) |
||||
*********************************************************************
********************************************************************

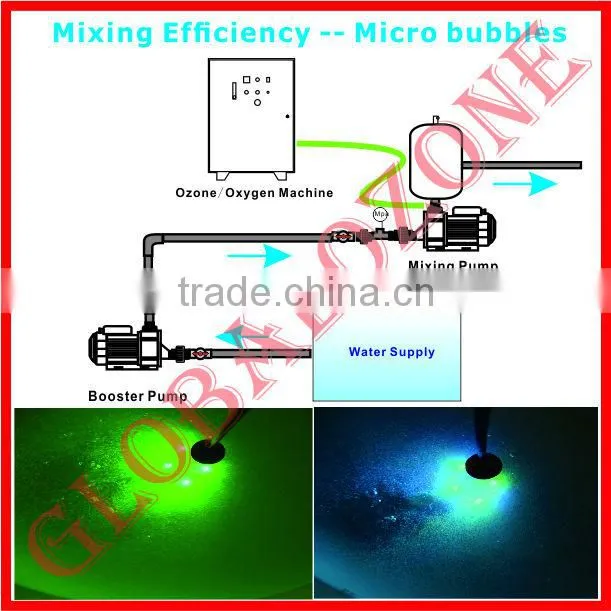

Mixing Efficiency
*********************************************************************
Other Mixing Equipments We Provide

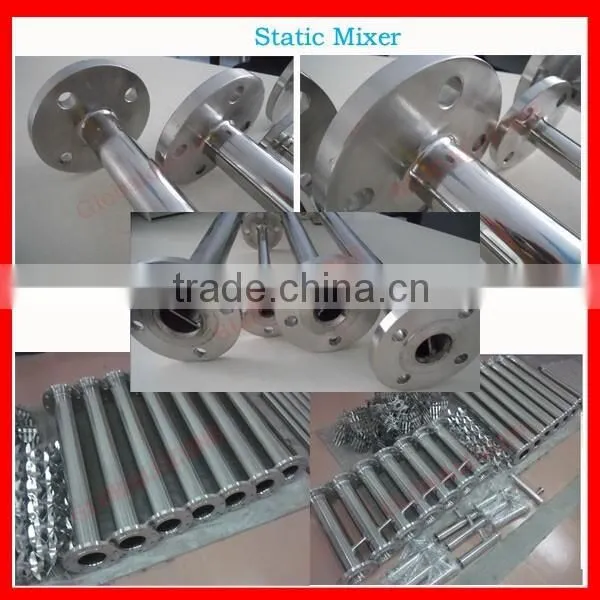

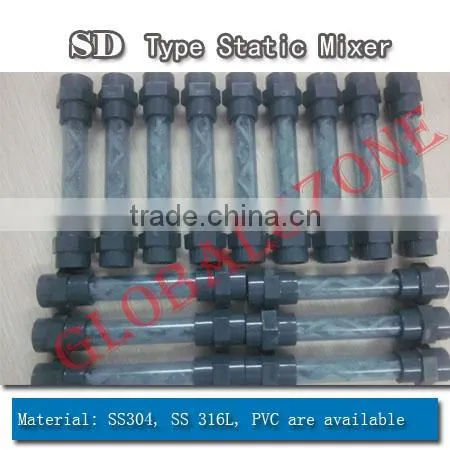

PVC Material Static Mixer

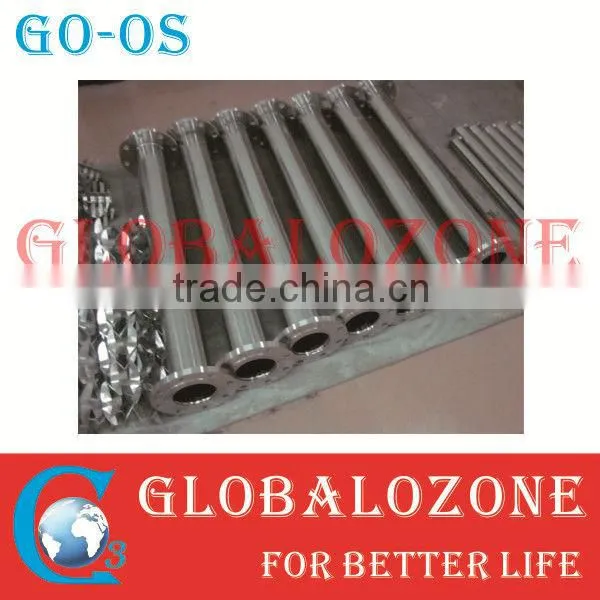

SS304/SS316L Material Static Mixer

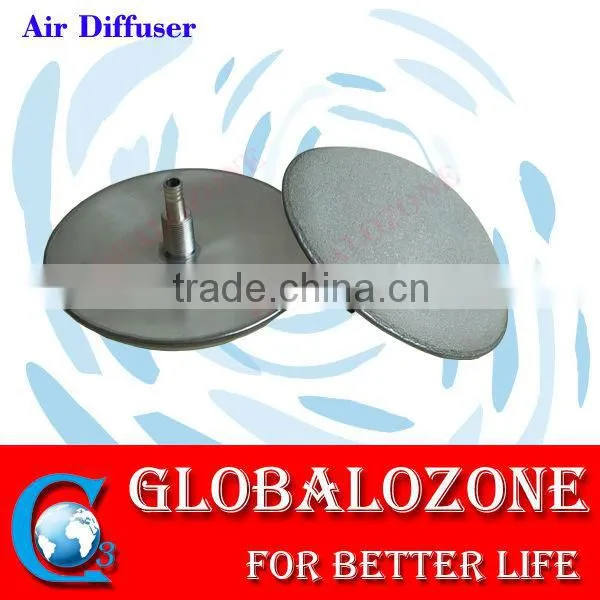

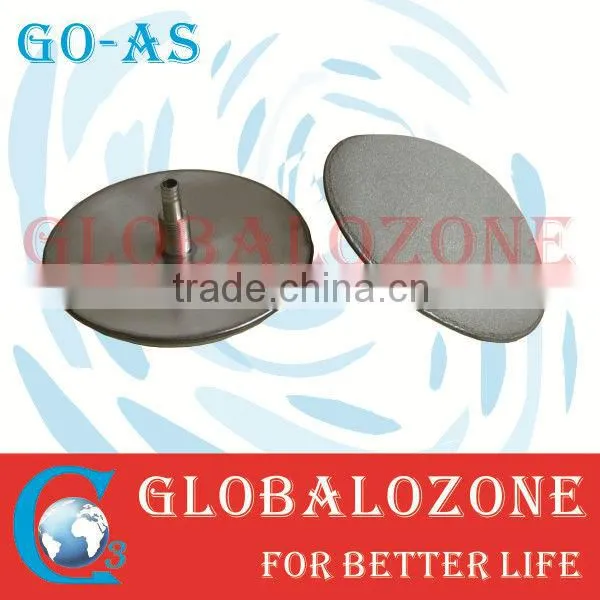

Air Diffuser
*********************************************************************
Packaging
A) Inner layer: plastic bag
B) Middle layer: EPE(Expand aple poly ephylene)
C) Outer Layer: carton/composite wooden cases
Prompt delivery
1. 3-7 working days for sample order;
2. 10-30 days for quantity order;
3. Shipping could be courier, airline or sea.
Payment terms
*********************************************************************
About US
We Provide high-quality Nano bubbles mixing pump for:
Mixing pump wholesalers
Retailers and oneline shops (Ebay, Amazon...)
OEM-The custom-made mixing pump are available. Upon customer's idea, drawings, photos etc.
ODM-The modification of the mixing pump after customer's selection is accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
Report on the making process.
Marketing feedbacks tracing.
*********************************************************************

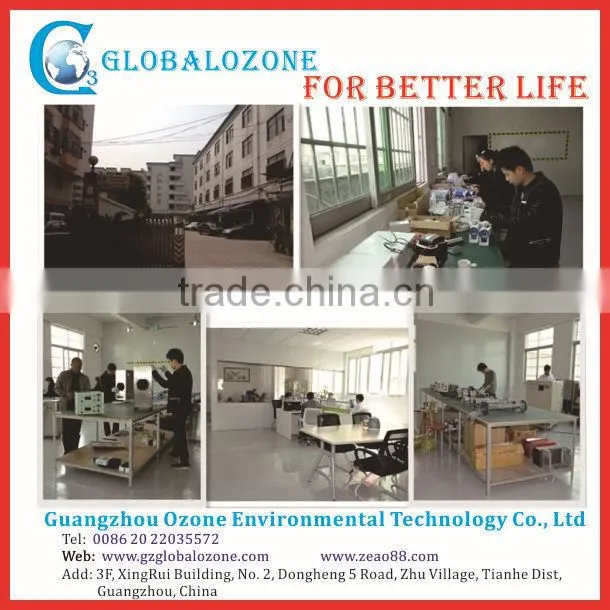

Office & Factory
Tips:
Some models available with 220V/380V are available, when you make order pls kindly note us the voltage you need, thanks a lot!
