Home > Products > Aquaculture water treatment equipment > China Supplier Commercial Fish Farm Protein Skimmer for Aquaculture
China Supplier Commercial Fish Farm Protein Skimmer for Aquaculture
- Guangzhou
- T/T Credit Card PayPal
You May Like
-

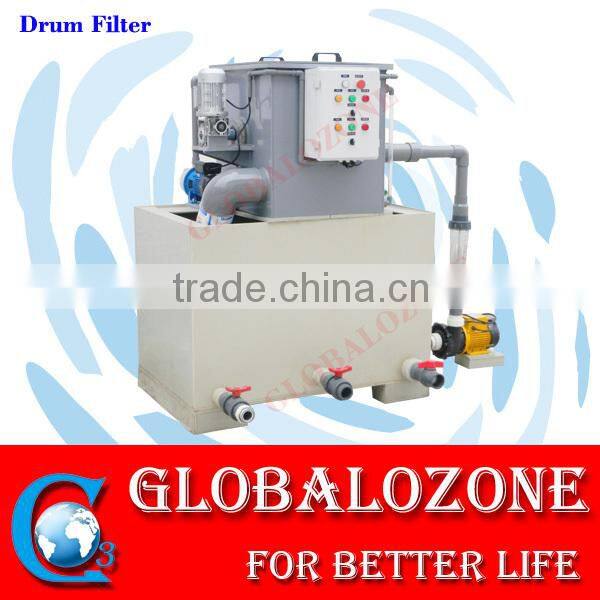

Factory Price 20T-200T/hr Rotary Aquaculture Drum Filter
-
New Design Fish Tank Aquarium Biological Filter
-
High Quality Water Rotary Drum Rotary Vacuum Filter
-
Wastewater Treatment Equipment Biology Filter
-
Aquaculture Ammonia Nitrogen Removal Biological Filter Quality Choice
-
Fish Farm Drum Filter, Drum Filter for the Recirculating Aquaculture System,fish Farm System
Product Details
| Place of Origin | Guangdong, China | Brand Name | Globalozone | |
| Model Number | GO-PS |
Product Description

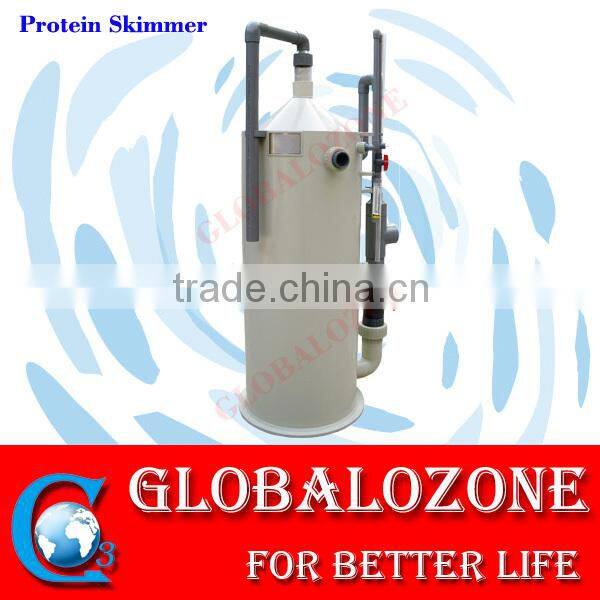

China Supplier Commercial Fish Farm Protein Skimmer for Aquaculture
Working system
First,water enter from the bottom of Protein Skimmer,“S” shape water stream,water moving up and then roll down to the water outlet;
Second,using the PDO device for producing bubble,and it enters into the mixing chamber with water together,liquid and air fully mixing in waterwhen the water is rolling then reaches to the water outlet,water goes out from the bottom,but the not dissolved & suspended particles are gather in the surface of micro-bubble, then enter into the collecting pipe,coming out from the sewage disposal;
Third,treated water coming out from the main water outlet,water outlet valve can adjust the liquid level of Protein skimmer.
Features
1.Instead the using of Venturi,Booster pump,low power for saving energy.
2.Using the collecting pipe,no need to clean,for saving water.
3.PDO air intake device produces abundance air bubble,for high separate efficiency.
4.Using two ways water stream design,for high air-liquid mixing result,high separate efficiency.
5.Trouble-free design,long service life but free maintenance.
Functions
1.Removing organism such as night soil,colloid etc,for reducing the load of biological treatment and ensuring the water quality.
2.Increasing the dissolved oxygen in water,for improving the biological treatment efficiency.
3.Removing the harmful air in water, stabilize the PH in water.
4.Mixing ozone in water also has the function of sterilization, disinfect ion and remove algae in water.
Application
1.Seafood cultivating factory
2.Seawater hatcheries
3.Oceanopolis, aquarium etc
4.Swimming pool water treatment
5.Sewage water treatment, and the lines used for ozone mixing in water
Product Technic Data
Model | Water flow rate (M3/Hr) | Size (mm) |
GO-PS-10 | 10 | φ450×1550 |
GO-PS-15 | 15 | φ520×1800 |
GO-PS-20 | 20 | φ620×1800 |
GO-PS-30 | 30 | φ700×2100 |
GO-PS-40 | 40 | φ700×2400 |
GO-PS-60 | 60 | φ850×2400 |
GO-PS-80 | 80 | φ920×3000 |
GO-PS-100 | 100 | φ1050×3000 |
GO-PS-150 | 150 | φ1250×3100 |
GO-PS-160 | 160 | φ1300×3100 |
GO-PS-200 | 200 | φ1350×3500 |

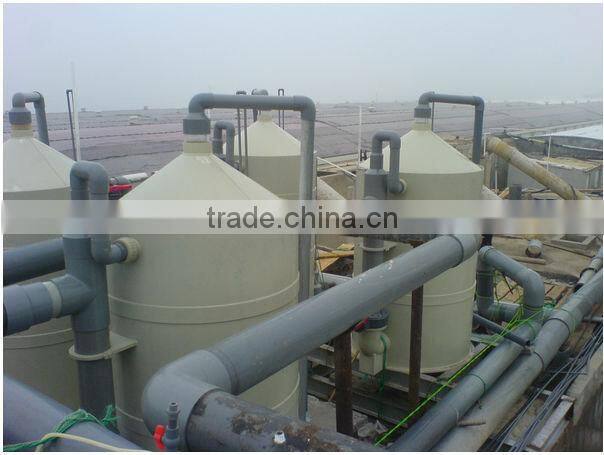

Product Picture
Similar Models


Trade terms
Payment method
Paypal,T/T,WU,etc
Packaging
1.Inner layer: plastic bag
2.Middle layer: EPE(Expand aple poly ephylene)
3.Outer Layer: carton/composite wooden cases
Prompt delivery
1.Shipping way:by sea,by air or by express(DHL,FedEx,UPS,TNT etc)
2.3-7 days for sample order;
3.10-30 days for mass production order.
About us
For Globalozone, we can supply to you not only ozone generator, but also the high purity of Oxygen generator and UV water sterilizer.
For the oxygen, we can supply to you not only the 3LPM, 5LPM, 8LPM, 10LPM PSA oxygen generator spare parts, but also the complete oxygen machine for home and industrial from 3LPM to 70LPM etc.
All of our products are favored and trusted by customers with contemporary design (simplicity, innovation, practicability, multifunction and fashion), convenient operate, durable and its competitive price.
Excellent after-sales service
1.1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
2.Report on the making process.
3.Marketing feedbacks tracing.
