5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold

5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold thumbnail-1
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold thumbnail-2
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold thumbnail-3
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold thumbnail-4
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold thumbnail-5
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold thumbnail-6
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold photo-1
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold photo-2
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold photo-3
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold photo-4
5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold photo-5

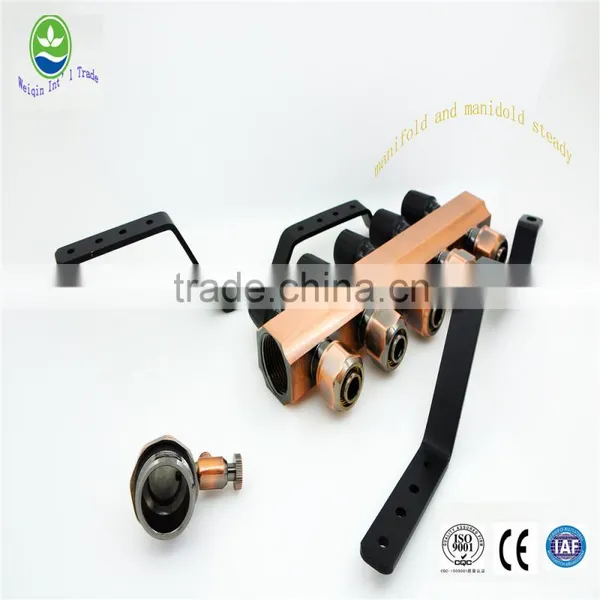

5 Ways Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifold photo-6
US$ 145 - 350 MOQ: 500 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Shanghai Weiqin International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Manual
Material Brass
Temperature of Media Medium Temperature
Media Water
Port Size 1/2'' ,3/4'' ,1'
Place of Origin Zhejiang, China
Model Number FM-3050 FM-3030 FM-3550 FM-3060 FM-3560 FM-3570
Brand Name Krich
Application General
Product Overviews



5 ways brass Water separator compositive underfloor heating manifolds brass manifold

Product Description



Specifications

Brass Union Manifold for heating,with Red-bronze color
Material: brass
size: 1/2'' 3/4 ''  1'    2-12 loops (any another kinds style can be made as your order, OEM can be receipted )
Package:carton
Min order: 1pc

Brass Union Manifold for heating,with Red-bronze color

1. Product Description / Application





Brass Union Manifold for heating,with Red-bronze color always used in  under floor heating system.



For distribution and regulation of the volume of the various heating circuits in low temperature heating and cooling systems (e.g. floor or wall heating).





-      Manifold is made up of the precision matched components with flat-seal connections



-       Volume control carries out using a square venting key on the control valve



-       Adjusted flow can be read off directly by the flow meter with integrated shut-off device







 The New Characters of Brass Union Manifold for heating,with Red-bronze:

5 ways brass Water separator compositive underfloor heating manifolds brass manifold

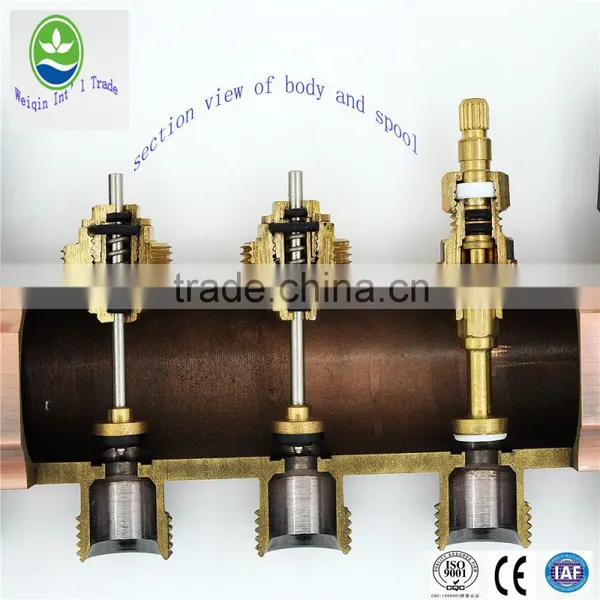

                      Character of the  Brass Union Manifold for heating,with Red-bronze color



<1>main bars.
With strong three-dimensional sense on the main bar ,and remarkable in comparison with ordinary products .

<2> o-rings.
2 0-rings +PTFE Packing. Even if the two O-rings has been damaged all, the leakage will stop immediately after tighten the locking cap, thereby greatly reducing  the inconveniences to the users during the heating time.


<3>Seal seat.

PTFE shut off seat can shut tight.



<4>Branches.
The main bar and branch have been integrated with  excellent  leak-proof  technology and  stability , which can guarantee no connection points, thus completely solve quality problems due to improper production and construction.



<5>Handle wheel
Plug –Hand wheel ---Pull up the hand wheel and remove it when leakage .More convenience for facilitate maintenance.

  <6 > Connections
The connections  of floor heating pipe are  union structure .All types of pipes are interchangeable for style 1216,1620,20*2.3 ,which increase the versatility character of the pipes.

 <7> Exhaust valves

Union structure for vent and body . Less leakage , safe use .  Precise positioning with lock- cap structure.





Technical specifications / Operation conditions







2.1    Heating circuit manifold



Material:



-       Made of Brass pipe Hpb 59-1, Copper and copper alloys - Plate, sheet, strip and circles for general purposes]



-       All valve inserts and connecting fitting completely nickel-plated or brass nature color







Description and dimension:

5 ways brass Water separator compositive underfloor heating manifolds brass manifold

5 ways brass Water separator compositive underfloor heating manifolds brass manifold



-       Supply (above) and return (below) bars 1”.



-       Distance between heating circuits 48mm



-       Distance between supply- and return bars 200mm



-       Quantity of heating circuits: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12







In the manufacturing process of the manifold incl. all components a pressure as well as a function test have to be performed.





Technical data:







-       Max. operating temperature: 100 °C(212℉)















-       Min. operating temperature: -20 °C(-4℉)







-       Max. operating pressure:  6 bar







-       Max. test pressure (24 h, < 30 °C): 10 bar







-       Flow ranges of the flow meter: 0 - 5 l/min



Related Products









Manifolds series contains more kinds of products





5 ways brass Water separator compositive underfloor heating manifolds brass manifold







5 ways brass Water separator compositive underfloor heating manifolds brass manifold

5 ways brass Water separator compositive underfloor heating manifolds brass manifold

5 ways brass Water separator compositive underfloor heating manifolds brass manifold

5 ways brass Water separator compositive underfloor heating manifolds brass manifold

5 ways brass Water separator compositive underfloor heating manifolds brass manifold

5 ways brass Water separator compositive underfloor heating manifolds brass manifold





Packaging





5 ways brass Water separator compositive underfloor heating manifolds brass manifold





Buying Guides



5 ways brass Water separator compositive underfloor heating manifolds brass manifold







Your inquiry is welcome and please do not hesitate to contact  us if your have any question or need.We welcome your  samples or drawings for our manufacturing .OEM /ODM is acceptable.
