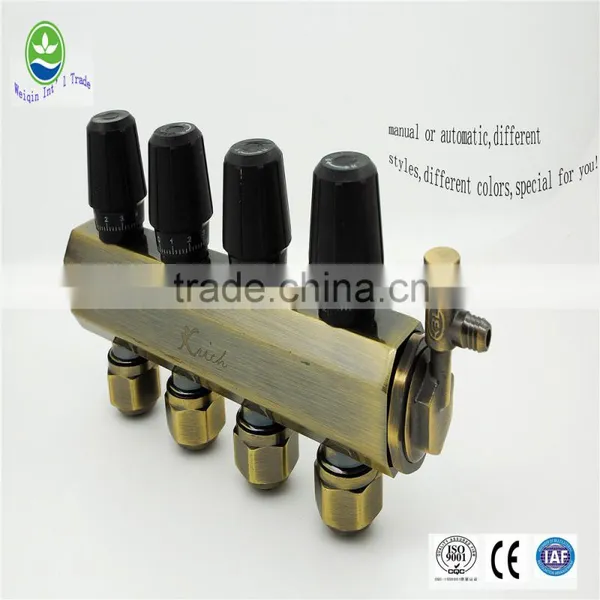

6 Ports Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifolds photo-2
6 Ports Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifolds photo-3
6 Ports Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifolds photo-4

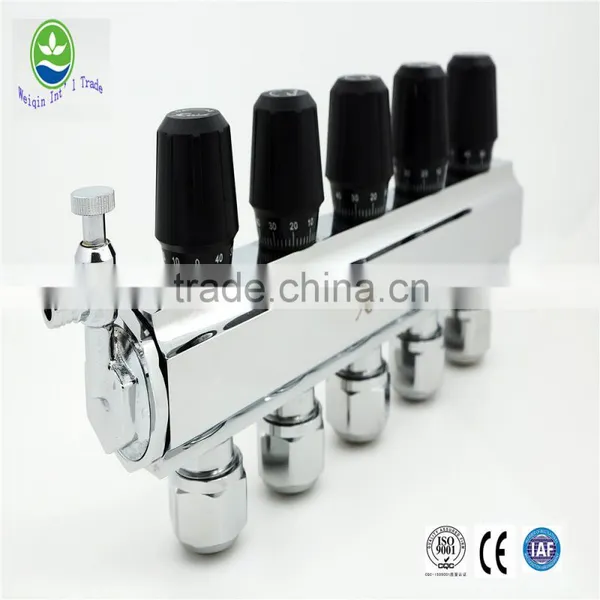

6 Ports Brass Water Separator Compositive Underfloor Heating Manifolds Brass Manifolds photo-5
US$ 117 - 350 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Shanghai Weiqin International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Manual
Material Brass
Temperature of Media Medium Temperature
Media Water
Port Size 1'
Place of Origin Zhejiang, China
Model Number FM-3040-6
Brand Name Krich
Application General
Product Description

 6 ports brass Water separator compositive underfloor heating manifolds brass manifolds

 6 ports brass Water separator compositive underfloor heating manifolds brass manifolds

SPECIFICATION

METERIAL

Bar diameter

DN25 /DN32

Bar



Brass

Loops

2-12 loops

Stem



Brass

Bar diameter

16 mm/ 20mm

Spring



Stainless steel

Branch distance

50mm

 Piston

EPDM

Media



Water ,≤30% ethanol

Handle



PA

Water temperature



-20-100℃(-4-212℉)



Frame



Iron

Max working pressure



PN 16

Seals



EPDM

maximum discharge pressure



2.5 bar.

Exhaust expansion pad



Expanded fiber





6 ports brass Water separator compositive underfloor heating manifolds brass manifolds

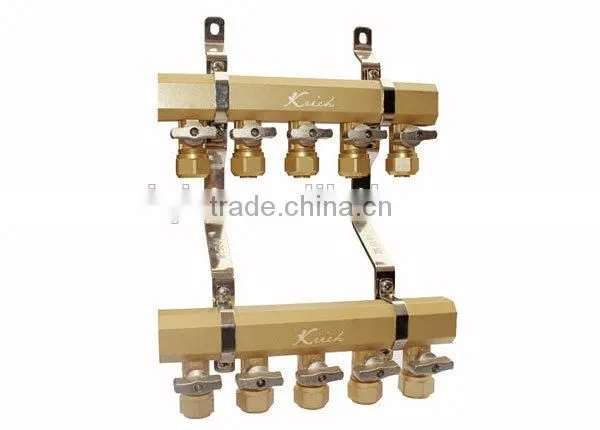

Brass water manifold  Floor Heating Manifold 2 ports 1'  without any leak fm3040

6 ports brass Water separator compositive underfloor heating manifolds brass manifolds

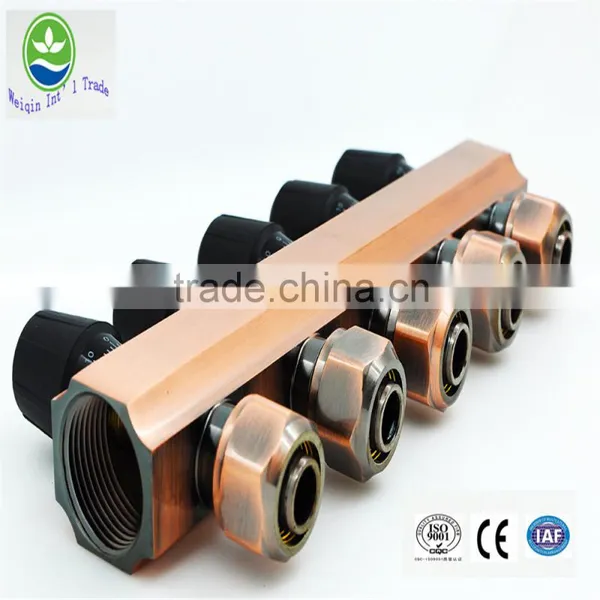

                      Character of the  Brass Union Manifold for heating,with Red-bronze color



<1>main bars.
With strong three-dimensional sense on the main bar ,and remarkable in comparison with ordinary products .

<2> o-rings.
2 0-rings +PTFE Packing. Even if the two O-rings has been damaged all, the leakage will stop immediately after tighten the locking cap, thereby greatly reducing  the inconveniences to the users during the heating time.


<3>Seal seat.

PTFE shut off seat can shut tight.



<4>Branches.
The main bar and branch have been integrated with  excellent  leak-proof  technology and  stability , which can guarantee no connection points, thus completely solve quality problems due to improper production and construction.



<5>Handle wheel
Plug –Hand wheel ---Pull up the hand wheel and remove it when leakage .More convenience for facilitate maintenance.

  <6 > Connections
The connections  of floor heating pipe are  union structure .All types of pipes are interchangeable for style 1216,1620,20*2.3 ,which increase the versatility character of the pipes.

 <7> Exhaust valves

Union structure for vent and body . Less leakage , safe use .  Precise positioning with lock- cap structure.

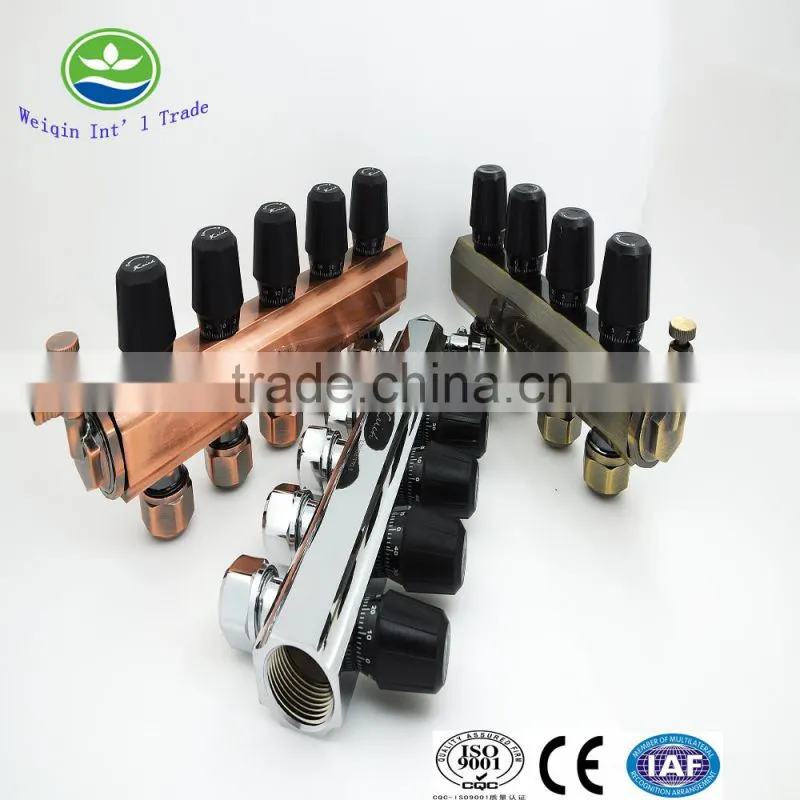

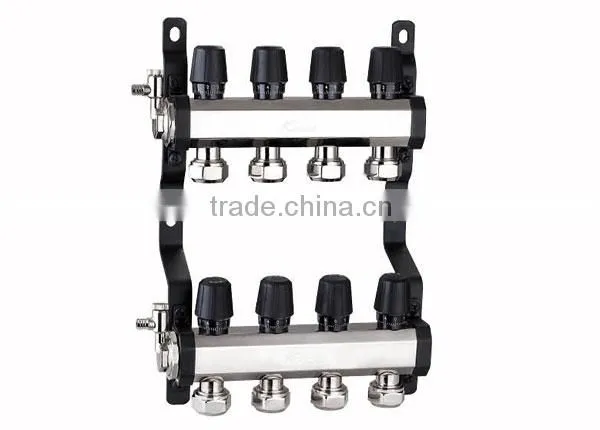

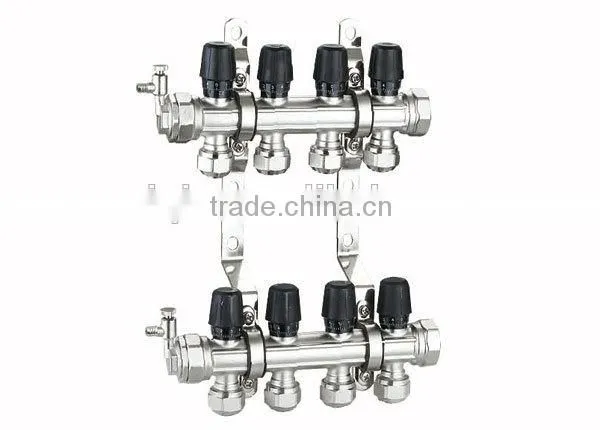

More related picture



  6 ports brass Water separator compositive underfloor heating manifolds brass manifolds6 ports brass Water separator compositive underfloor heating manifolds brass manifolds

6 ports brass Water separator compositive underfloor heating manifolds brass manifolds



Product's Features:



2.1    Heating circuit manifold



Material:



-       Made of Brass pipe Hpb 59-1, Copper and copper alloys - Plate, sheet, strip and circles for general purposes]



-       All valve inserts and connecting fitting completely nickel-plated or brass nature color







Description and dimension:



-       Supply (above) and return (below) bars 1”.



-       Distance between heating circuits 48mm



-       Distance between supply- and return bars 200mm



-       Quantity of connection ports /circles : 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12







In the manufacturing process of the manifold incl. all components a pressure as well as a function test have to be performed.





Technical data:







-       Max. operating temperature: 100 °C(212℉)















-       Min. operating temperature: -20 °C(-4℉)







-       Max. operating pressure:  6 bar







-       Max. test pressure (24 h, < 30 °C): 10 bar







-       Flow ranges of the flow meter: 0 - 5 l/min

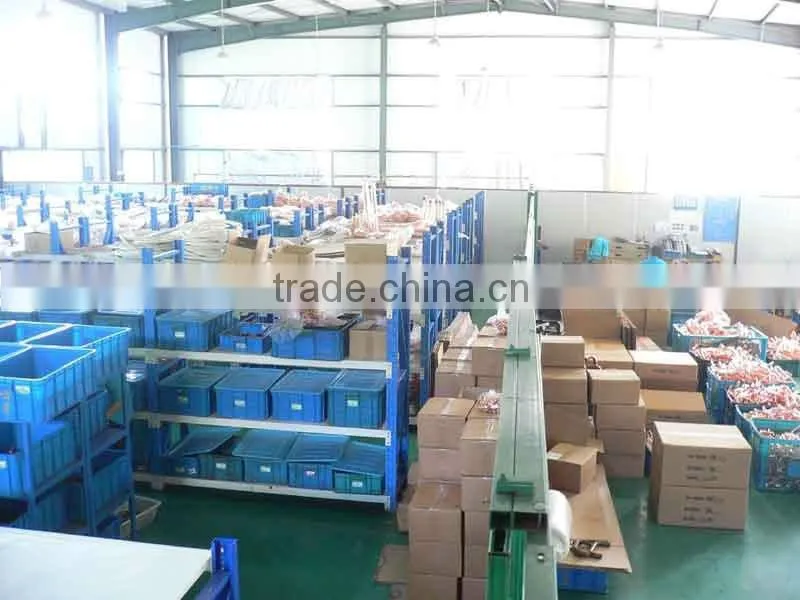

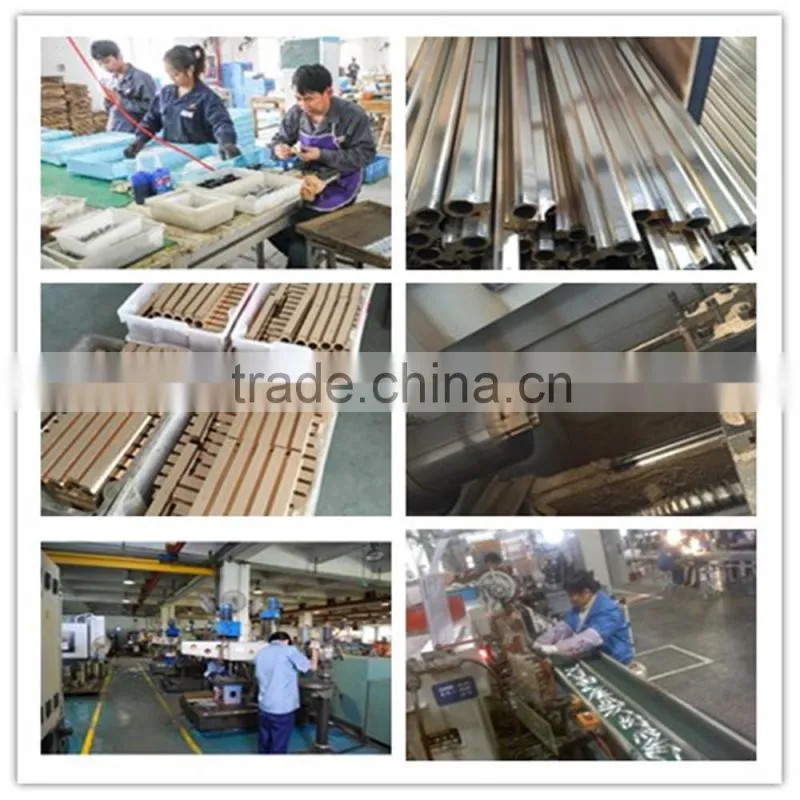

Company Information

 6 ports brass Water separator compositive underfloor heating manifolds brass manifolds

6 ports brass Water separator compositive underfloor heating manifolds brass manifolds

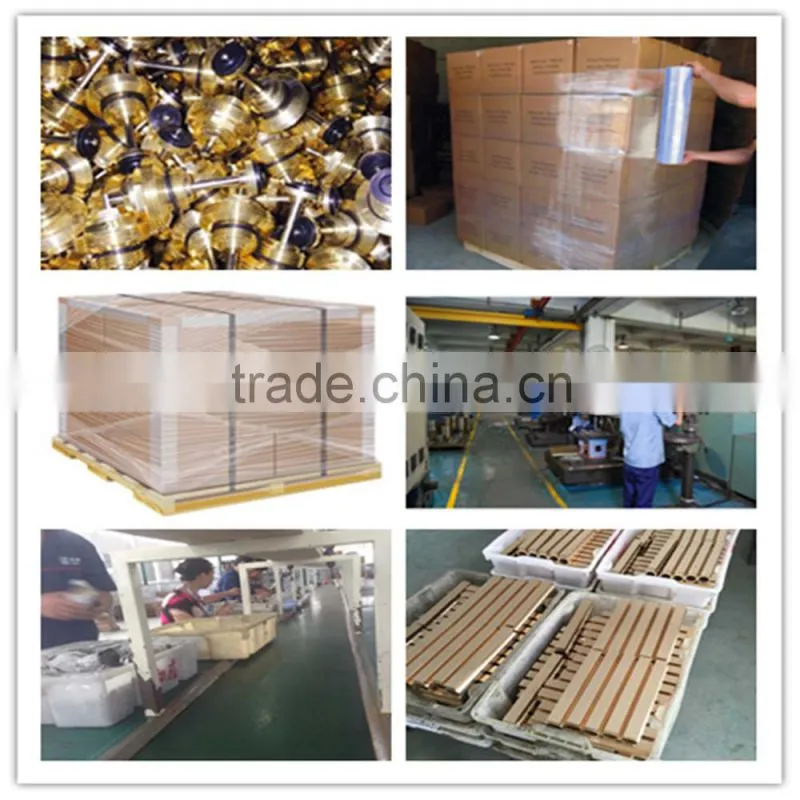

Packaging & Shipping

 6 ports brass Water separator compositive underfloor heating manifolds brass manifolds

6 ports brass Water separator compositive underfloor heating manifolds brass manifolds



OUR STRENGTHS

Our Strengths:

1.Fast Material Supply—our factory has copper bar company.
2.Supplier of national projects—Bird’s Nest, Shanghai World Financial Center
3.Automated and robotized machines –increase efficiency reduce cost

4.OEM & ODM projects are welcome
5.ISO9001 & ISO14001 approved
6.Rich experienced engineers and customized after service.
7.Annual R&D projects reach the number of 100
8.Toyota Production System and ERP Management System
9.Seven Step QC Process
          1) Material Control

          2) Machining Quality Control

          3) In-coming Material Inspection

          4) Assembly line Quality Control

          5) 100% leakage testing

          6) Final Inspection before delivery

          7) American Standard air&water pressure testing



HOW TO CONTACT US

6 ports brass Water separator compositive underfloor heating manifolds brass manifolds





Your inquiry is welcome and please do not hesitate to contact  us if your have any question or need .OEM /ODM is acceptable.
