Specifications
Brass Union Manifold for heating,with Red-bronze color
Material: brass
size: 1/2'' 3/4 '' 1' 2-12 ports (any another kinds style can be made as your order, OEM /ODM can be receipted )
Package:carton
Min order: 1pc
Brass Valve Cartridge underfloor Heating
Manifold 3 ways without any leak fm3040
1. Product pplication

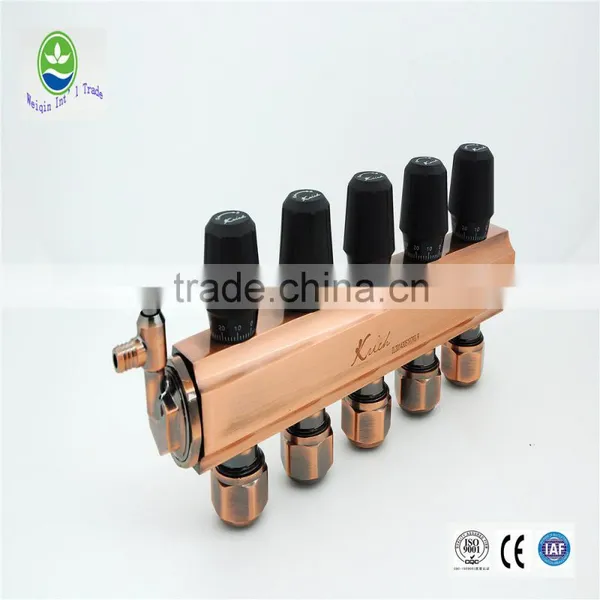

Brass Union Manifold for heating,with Red-bronze color always used in under floor heating system.
For distribution and regulation of the volume of the various heating circuits in low temperature heating and cooling systems (e.g. floor or wall heating).
- Manifold is made up of the precision matched components with flat-seal connections
- Volume control carries out using a square venting key on the control valve
- Adjusted flow can be read off directly by the flow meter with integrated shut-off device
The New Characters of Brass floor heating Manifold for floor heatingwith Red-bronze:

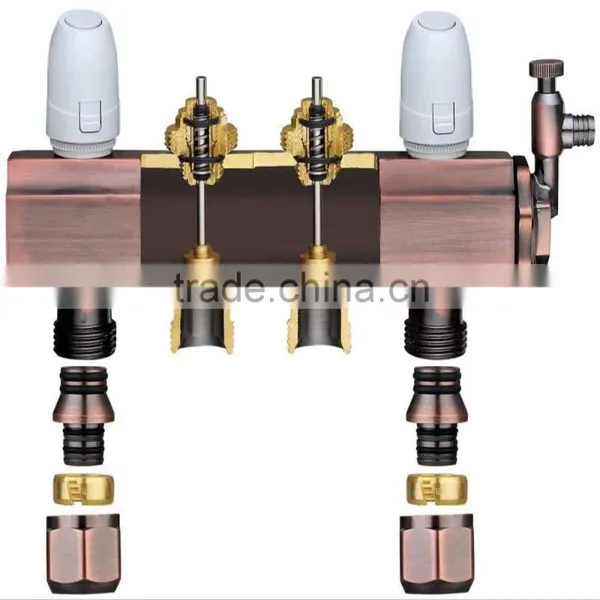

Character of the Brass Union Manifold for heating,with Red-bronze color |
| <1>main bars. |
|
<2> o-rings. |
<3>Seal seat.
PTFE shut off seat can shut tight. |
| <4>Branches. |
| <5>Handle wheel |
| <6 > Connections The connections of floor heating pipe are union structure .All types of pipes are interchangeable for style 1216,1620,20*2.3 ,which increase the versatility character of the pipes. |
|

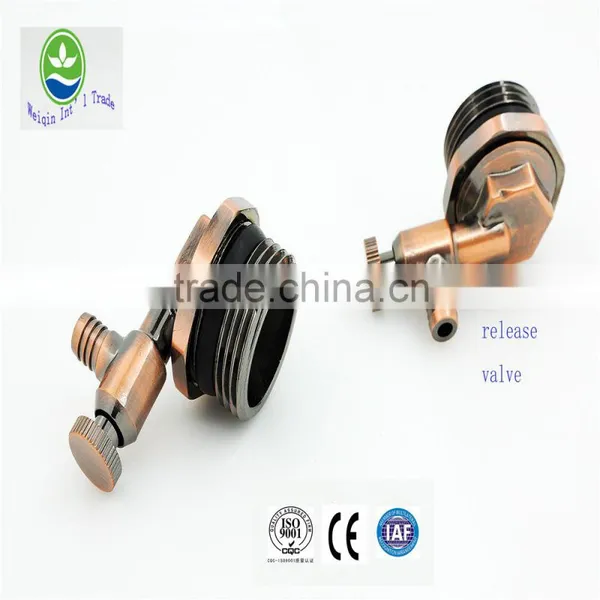

<7> Exhaust valves Union structure for vent and body . Less leakage , safe use . Precise positioning with lock- cap structure. |

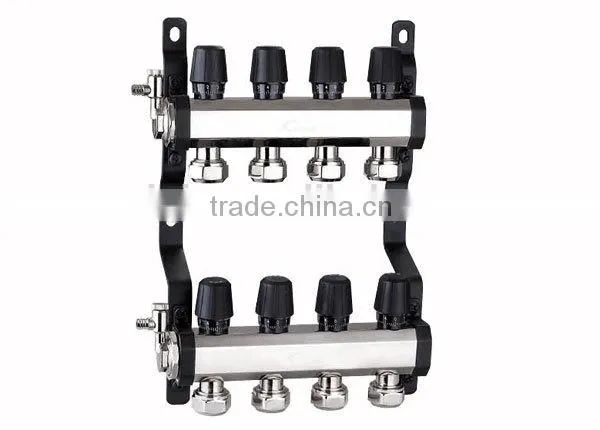

2.1 Heating circuit manifold
Material:
- Made of Brass pipe Hpb 59-1, Copper and copper alloys - Plate, sheet, strip and circles for general purposes]
- All valve inserts and connecting fitting completely nickel-plated or brass nature color
Description and dimension:
- Supply (above) and return (below) bars 1”.
- Distance between heating circuits 48mm
- Distance between supply- and return bars 200mm
- Quantity of connection ports /circles : 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
In the manufacturing process of the manifold incl. all components a pressure as well as a function test have to be performed.
Technical data:
- Max. operating temperature: 100 °C(212℉)
- Min. operating temperature: -20 °C(-4℉)
- Max. operating pressure: 6 bar
- Max. test pressure (24 h, < 30 °C): 10 bar
- Flow ranges of the flow meter: 0 - 5 l/min
Our Strengths:
1.Fast Material Supply—our factory has copper bar company.
2.Supplier of national projects—Bird’s Nest, Shanghai World Financial Center
3.Automated and robotized machines –increase efficiency reduce cost
4.OEM & ODM projects are welcome
5.ISO9001 & ISO14001 approved
6.Rich experienced engineers and customized after service.
7.Annual R&D projects reach the number of 100
8.Toyota Production System and ERP Management System
9.Seven Step QC Process
1) Material Control
2) Machining Quality Control
3) In-coming Material Inspection
4) Assembly line Quality Control
5) 100% leakage testing
6) Final Inspection before delivery
7) American Standard air&water pressure testing
Your inquiry is welcome and please do not hesitate to contact us if your have any question or need .OEM /ODM is acceptable.
