Specifications
Laser engraving & cutting machine K16901.serve controlling motor
oling recycle system
3.CE&FDA
4.DSP offline working
Easy operating CO2 Laser machine Hanniu for sale

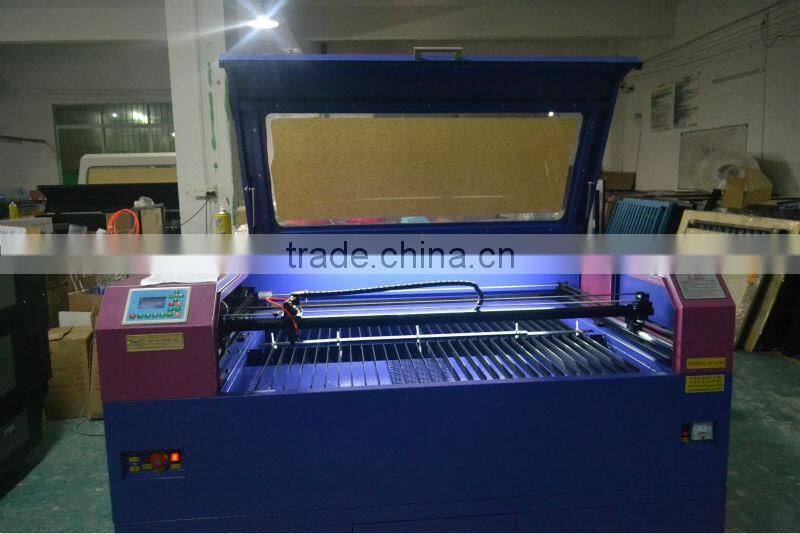

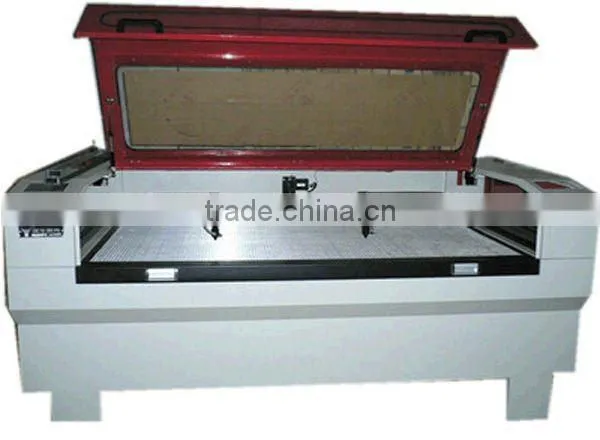

Details of the machine
Parameter:
| Model | H-1690 laser cutting &engraving machine |
| Engraving Area | 1600×900mm |
| Engraving Speed | 0-64000mm/min |
| Laser power | 120w |
| Natural life of laser | 3000hours |
| Laser wave length | 10.6um |
| Resolution ratio | 0.025mm |
| Minimum shaping character | Chinese character 2mm/ letter 1mm |
| Resetting positioning accuracy | ±0.01mm |
| Power Supply | Ac220v±10%,50HZ |
| Gross Power | 2200w |
| Operating Temperature | 0-45 |
| Operating humidity | 5%-95% |
| Graphic Format Supported | BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
| Driver Type | Stepper Motor |
| Cooling | air and water cooling |
| Opearate System | Win98/Win2000/WinXP |
| Max Cutting thickness | 10-25mm(acrylic) |
| Net Weight | 250KG |
| Dimension | 2100×1600×13000mm |
Applicable Matericals
Wood,paper,leather,cloth,organic glass,resin,acrylic,wollens,plastic,rubber,ceramic,tile,crystal,bowlder,bamboo,non-metal etc
Applicable Industry
Cloth embroide fabric toy,fabricture,glove,bag,leather,advertising,decoration,electric product,rubber,acrylic product,middle density,board etc non-metal sheet precision cutting &engraving.
Feature Description
(1)The software can support AutoCAD/CorelDRAW/CAD/CDR and other graphical software
(2)The USB interface can support heat play & pluy
(3)Quick data transitting
(4)Chinese&English edition liquid display can make it easy for user to operate
Standard accessories:
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Industrial chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including software, guiding videos etc)
6) 2×Power cables
Optional accessories:
1) High resolution(for engraving extremely high quality photos, even 3D photos).
2) Rotary (for engraving round items).
3) New red dot design(make the laser beam visible).
4) Motorized up and down worktable.
About us:
GUANGZHOU HANNIU LASER MACHINERY CO.,LTD comes to the development of the industry for many years, with advanced technology and talents. we sell our products to all over the world, we enjoy the high repulation in this area.
We work hard to provide customers with the most satisfactory product quality and thoughtful service.
We hope to develop together with you hand in hand. Your satisfaction is our greatest pursuit.
We sincerely welcome you come to visit our factory.
5.Certificates
6. Samples of the macine
7.Features:
1,USB offline control system and interface.
2,small noise, home making with anhydrous alarm and automatic protection features.
3,dust, pollution prevention design.

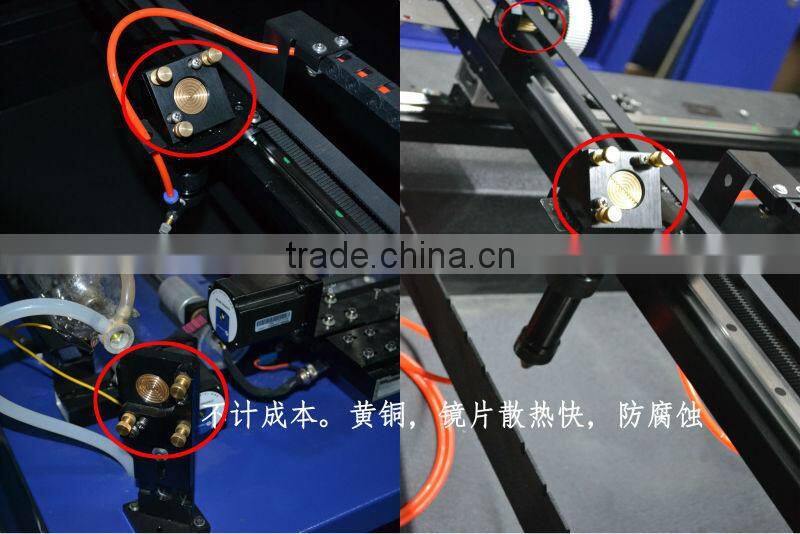

4,high-precision die casting and flying optics design.
5,adopts high quality aluminum, professional model.
8.welcome to our factory
10. The exhibition of canton fair
We will take part in the canton fair and shanghai fair every year, we have the high repulation in this area, we sell our products to all over the world
The celebrating of 2013
welcome to visit our other machines
FIBER and YAG laser cutting machine for metal and stainless steel and other non-metal products cutting
Laser marking machine for metal and non-metal products marking
laser cutting machine for acrylic and leather and other
11. Package:
Address: Buiding 2 WangGang Changshui Industrial Baiyun District Guangzhou China
TEL:+ 86 13922247841
Web: http://hanniulaser.en.china.cn/
we pack it in strong wooden case
Thank you for your visting our website.
Any interested, Please contact us!
