Specifications
laser cutting & engravingStepless speed regulating
digital control technology,for non-metal
USB interface
latest software

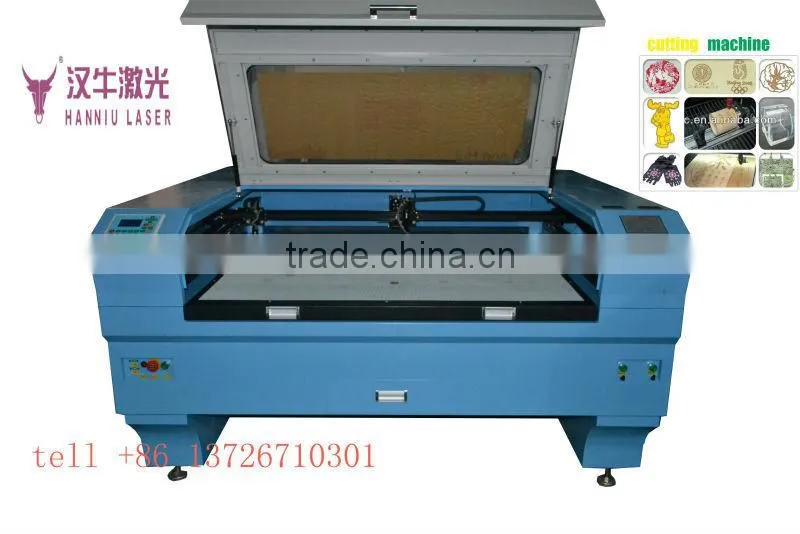

glass tube strong power CO2 laser machine from Hanniu K1390
Details of the machine
Specifications:
Control system: |
DSP control system |
Laser type: |
Sealed CO2 glass laser tube |
Working area: |
900*600mm(35.44*23.62inch) |
Laser power: |
80w/100w/120W/130w/150w/180w |
Pass-thru doors: |
Allow to cut extremely long materials(max thickness 35mm) |
Interface: |
USB connection ( Work in Windows XP, 2000,Vista,7) |
Memory: |
1Gb Buffer Memory |
Driver system: |
Stepper motor |
Auxiliary equipments: |
Exhaust-fan, air-exhaust pipe |
Laser Tube life hours: |
3000 Hours |
Repeating precision: |
±0.05mm |
Moving system: |
CNC controlling units |
Cooling mode: |
Water-cooling and protection system |
Max speed: |
600mm/s for engraving, 300mm/s for cutting |
Working voltage: |
AC110/220±10% 50/60Hz |
Whole power: |
<1250W |
Operating temperature: |
0-45°C(32° - 113° F) |
Operating humidity: |
5%-95% |
Controlling software: |
Original sunylaser software |
Graphic format supported: |
BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2, JPC,PGX,RAS,PNM,SKA,RAW etc |
Compatible software: |
Auto CAD, CoreIDraw 12 |
Resolution: |
User controlled 100-500DPI(standard model), up to 1000DPI(high resolution attachment) |
Machine dimension: |
1800*1400*1000mm |
Packing dimension: |
1900*1600*1250mm |
Net weight: |
280kg |
Gross weight: |
320kg |
Packing: |
stronger wooden case |
Standard accessories:
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Industrial chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including software, guiding videos etc)
6) 2×Power cables
Optional accessories:
1) High resolution(for engraving extremely high quality photos, even 3D photos).
2) Rotary (for engraving round items).
3) New red dot design(make the laser beam visible).
4) Motorized up and down worktable.
Applicable Matericals
Wood,paper,leather,cloth,organic glass,resin,acrylic,wollens,plastic,rubber,ceramic,tile,crystal,bowlder,bamboo,non-metal etc.
Applicable Industry
Cloth embroide fabric toy,fabricture,glove,bag,leather,advertising,decoration,electric product,rubber,acrylic product,middle density,board etc non-metal sheet precision cutting &engraving.
Feature Description:
(1)The software can support AutoCAD/CorelDRAW/CAD/CDR and other graphical software
(2)The USB interface can support heat play & pluy
(3)Quick data transitting
(4)Chinese&English edition liquid display can make it easy for user to operate
1. Guarantee : The laser machine guarantee for 1year except laser tube
60w laser tube guarantee for 3months
120w laser tube guarantee for 6months
80w( RECI) laser tube &150w/180w laser tube guarantee for 9months
2.Delivery: 7days after confirm received payment
3.package: stronger wooden case
4.Nessary Accessories: water cooling, exhaust fans, air pump, software , english operation manual , data cable.
5.Optional parts: rotary attachment, honycomb table, red dot positioning u, up and down table, singapor mirror and lens
About us:
GUANGZHOU HANNIU LASER MACHINERY CO.,LTD comes to the development of the industry for many years, with advanced technology and talents. we sell our products to all over the world, we enjoy the high repulation in this area.
We work hard to provide customers with the most satisfactory product quality and thoughtful service.
We hope to develop together with you hand in hand. Your satisfaction is our greatest pursuit.
We sincerely welcome you come to visit our factory.
5.Certificates
6. Samples of the macine
7.Features:
1,USB offline control system and interface.
2,small noise, home making with anhydrous alarm and automatic protection features.
3,dust, pollution prevention design.
4,high-precision die casting and flying optics design.
5,adopts high quality aluminum, professional model.
8.welcome to our factory
10. The exhibition of canton fair
We will take part in the canton fair and shanghai fair every year, we have the high repulation in this area, we sell our products to all over the world
The celebrating of 2013
welcome to visit our other machines
FIBER and YAG laser cutting machine for metal and stainless steel and other non-metal products cutting
Laser marking machine for metal and non-metal products marking
laser cutting machine for acrylic and leather and other
11. Package:
Address: Buiding 2 WangGang Changshui Industrial Baiyun District Guangzhou China
TEL:+ 86 13922247841
Web: https://img13.fr-trading.com/
we pack it in strong wooden case
Thank you for your visting our website.
Any interested, Please contact us!
