12v Mini Wind Turbine Wind Generator Blades
Specifications
12v mini wind turbine wind generator blades1,Bearing from "SKF"
2,Easy installation,
3,Free of maintentanence
12v mini wind turbine wind generator blades
Features 12v mini wind turbine wind generator blades
1.Bearing from “SKF” Sweden.
2.Stainless steel screw bolt from “THE”.
3.Primary aluminum housing, not secondary aluminum.
4. Low start-up wind speed.
5.High-efficient Generator
6.Innovative Noise Reduction Technology
7.Perfect Wind Wheel System
8.Unique Design Of The Rudder
9. Damp-proof, sand-proof, Anti-rust, Anticorrosion
10 .Easy installation, Free of maintenance, Long lifespan over 15years.
Specifications 12v mini wind turbine wind generator blades
Model |
Mini400W-3 |
Mini400W-5 |
Rated power |
400 watts at 12 m/s |
|
Max Capacity |
450watts |
|
Voltage |
12, 24 VDC |
|
Blades |
3 Pcs Nylon Fiber |
5 Pcs Nylon Fiber |
Start-Up Wind Speed |
2.0 ( m/s) |
1.5 ( m/s) |
Cut-In Wind Speed |
2.5(m/s) |
2.0(m.s) |
Rotor Diameter |
1.16 m |
1.21m |
Weight |
6.2 kg |
7.1 kg |
Shipping Dimensions |
770x 410x 200 mm (8.3 kg) |
770x 410x 200 mm ( 9 kg) |
KWH per Month |
30KWh at 3.2 m/s |
42KWh at 3.2 m/s |
Mount |
1.9 inch (48 mm) OD pipe |
|
Turbine Controller |
Microprocessor-based smart internal regulator with Maximum Power Point Tracking |
|
Body |
Cast aluminum |
|
Overspeed Protection |
Electronic torque control |
|
Working temperature |
—40°C~ 150°C |
|
Certificate |
ISO9001:2008 ,CE, Rohs |
|
Survival Wind Speed |
50 m/s |
|
Warranty |
3 year limited warranty |
|
Dimmensions 12v mini wind turbine wind generator blades
Power Curve

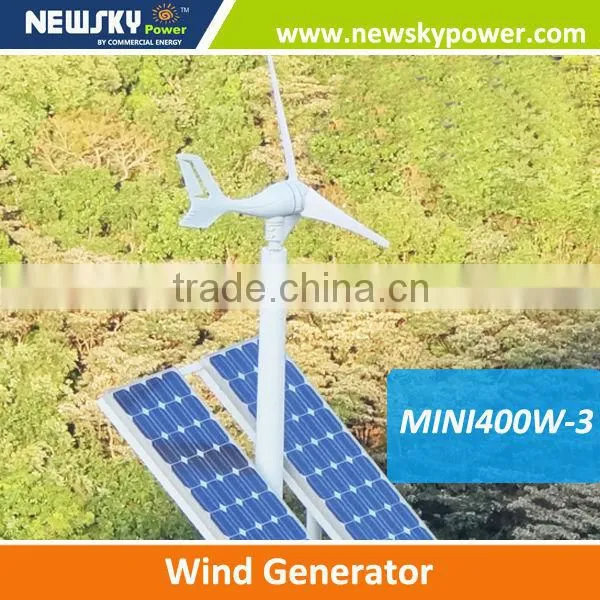

Pictures Show in Detail 12v mini wind turbine wind generator blades
Applications in Our Life 12v mini wind turbine wind generator blades

Work Shop
