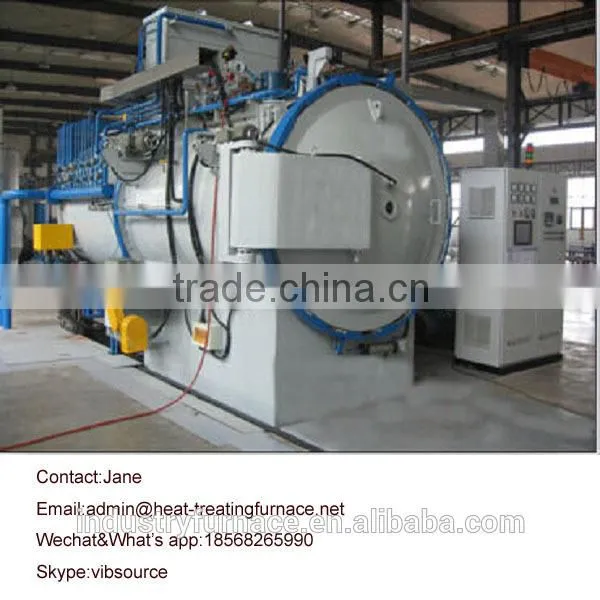

Screw bolts and dies vacuum gas quenching furnace,vacuum quench furnace
Brief
The screw bolts and dies vacuum gas quenching furnace,vacuum quench furnace is mainly used for quenching of tool steel, die steel, high speed steel and stainless steel and other material, solid solution treatment of stainless steel pipe fittings, annealing process of multiple magnetic materials, can also be used for vacuum brazing and vacuum sintering of stainless steel material products.
Advantages
1.The heat exchanger uses copper fin tube, fast cooling speed.
2.The wind Tsuis are regularly arranged in the cooling chamber, with good quenching uniformity, little deformation.
3.The heating elements are regularly installed in the heating chamber, with high furnace temperature uniformity.
4.This equipment has heating chamber and cooling chamber, high production efficiency, energy (electricity) can be saved.
Technical parameters
| Effective dimensions (mm) | Loading capacity(Kg) | Power(kw) | Max. temp | Furnace temperature uniformity | Final vacuum(Pa) |
| 450*300*300 | 100 | 50 | 1350℃ | ±5℃ |
4×10-1 6.7×10-3
|
| 600*400*400 | 200 | 80 | 1350℃ | ±5℃ |
4×10-1 6.7×10-3
|
| 750*500*500 | 300 | 120 | 1350℃ | ±5℃ |
4×10-1 6.7×10-3
|
| 900*600*600 | 500 | 150 | 1350℃ | ±5℃ |
4×10-1 6.7×10-3
|
| 1200*800*800 | 1000 | 240 | 1350℃ | ±5℃ |
4×10-1 6.7×10-3
|
