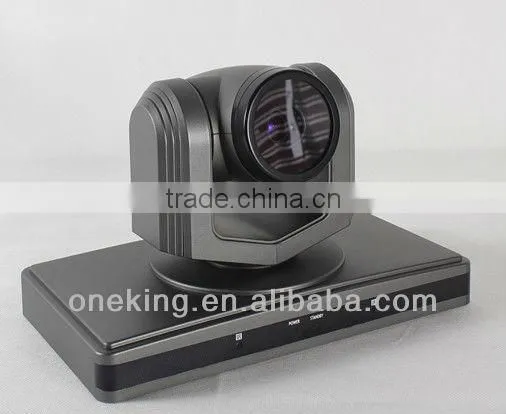

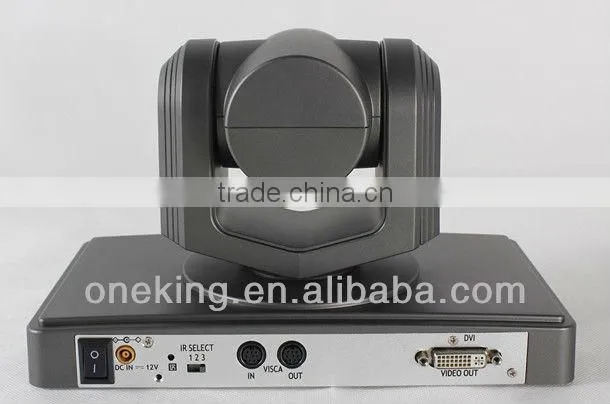

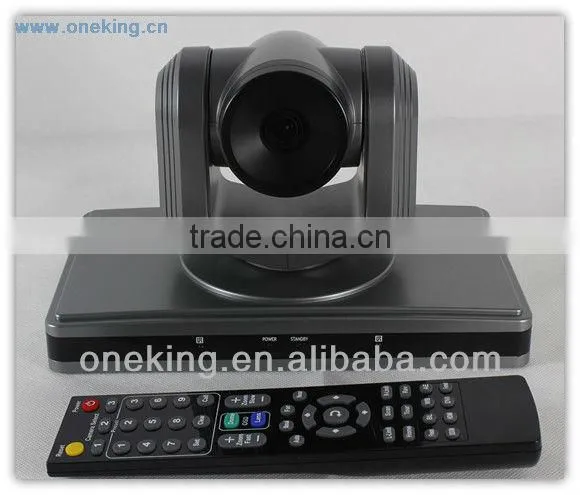

1080p HD PTZ speed dome video audio conferencing for conference room

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port SHENZHEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Video Conference System	Function	Other, video
Simultaneous Interpretation	Yes	Place of Origin	Guangdong, China
Brand Name	1king/OEM	Model Number	HD-610

Product Description

Specifications

video audio conferencing camera
SONY 1/2.8" Exmor CMOS 3270K Pix;
3x zoom
HOV: 1080i 90 degree /720p 60degree

1080p HD PTZ speed dome video audio conferencing for conference room

1. SONY 1/2.8" Exmor CMOS 3270K Pix;
    3x Varifocal f=3.00(wide) to 9mm(tele)
   Auto/Manual/Indoor/Outdoor
   Auto Gain Control
   S/N Ratio: auto/manual -3dB~+28dB
2. 1/1~1/10,000S, 22 steps
3. HOV: 1080i 90 degree /720p 60degree;
4. DVI Video Out;
5. Video Format: 1080p/30, 1080p/25, 1080i/60(30PsF), 1080i/50(30PsF),720p/60, 720p/50,720p/30,720p/25
6. EIA/RS232C/VISCA Protocol
7. Power on/off button
8. Pan/Tilt Movement
355 degree Pan 90 degree Tilt movement
Pan Speed: 0~16 degree/Second
Tilt Speed: 0~16 degree/Second
9. Tripod/Desktop installation

Model No.		HD610
Image Sensor	Sensor	1/2.8" CMOS 2.0 Mega Pixel
	Effective Pixels	2.0 Megapixel
	Illumination	0.25Lux at F1.2
	White Balance	Auto/Manual
	Gain Control	Auto
	Back-light compensation	On / Off
	E-Shutter	1/50~1/10,000S
	S/N Ratio	> 50db
Lens	Focus	f=3-9mm F1.2-F2.2
	Iris	Auto/Manual
	Zoom	3 Optical x 12 digital zoom
Lens HOV		70°
Video Output		HDMI, DVI
Video Output Model		1080P/30/25,1080i/60/50,720P/60/50
Communication Interface		EIA/RS232C,EIA/RS485C (Bidirectional)
Communication Control Protocol		VISCA,PELCO-D
Baud Rate		4800/9600bps
Tour		4 Line
Preset		64
Speed Matching		Pan/Tlit movement speed depends on camera module zoom in/out
OSD Menu		Access to OSD Menu and adjust camear module para meters
Image Auto Flip		Support Horizontal/Vertical image flip
Pan Speed		1-200 degree per second
Tilt Speed		1-150 degree per second
Pan Rotation Angle		0~355 degree
Tilt Rotation Angle		±45 degree
Auto Pan Scan		Support auto pan scan
Boundary Scan		0-355 degree (programmable)

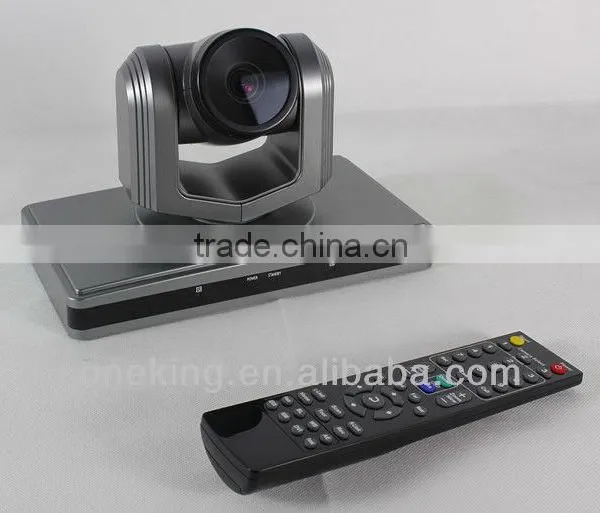

Remote Controller		IR wireless control P/T/Z
Power Supply		DC12V±10%, 2A
Working Temperature		0-50°C
Environment Humidity		0-95%RH
Size(LxWxH)		250X140X154mm
Weight		1380g
