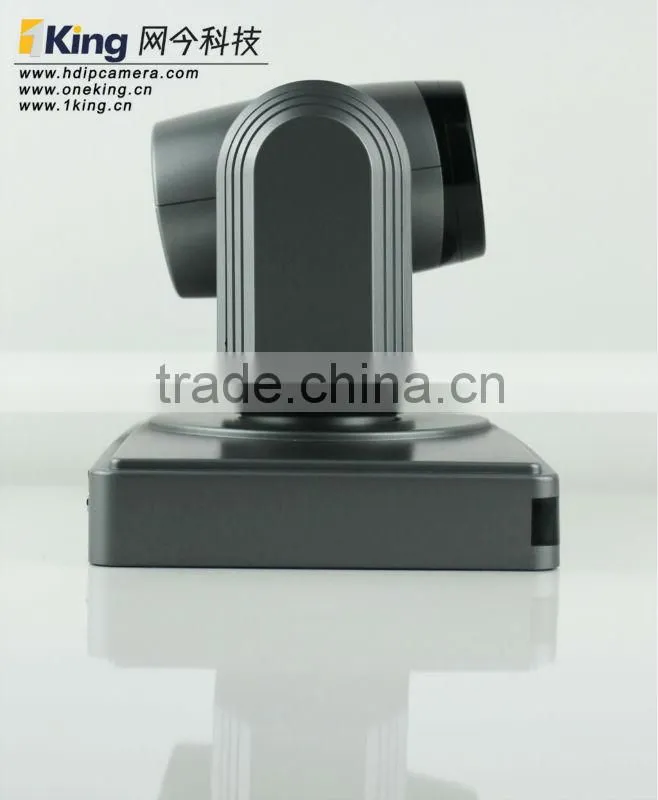

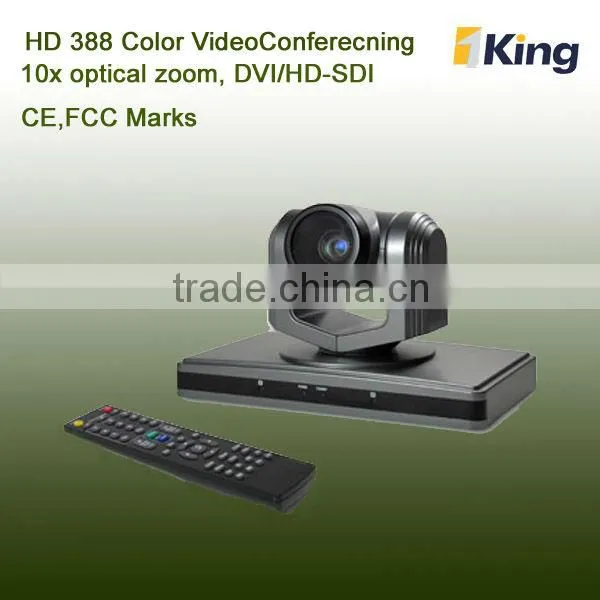

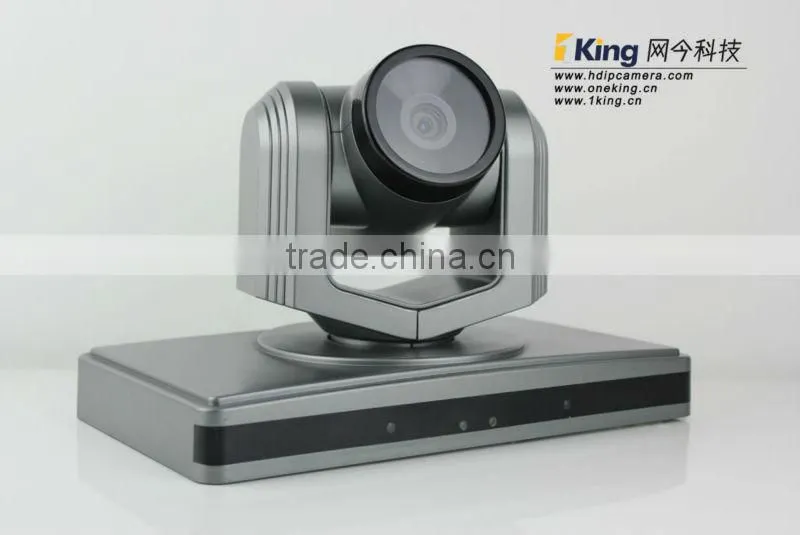

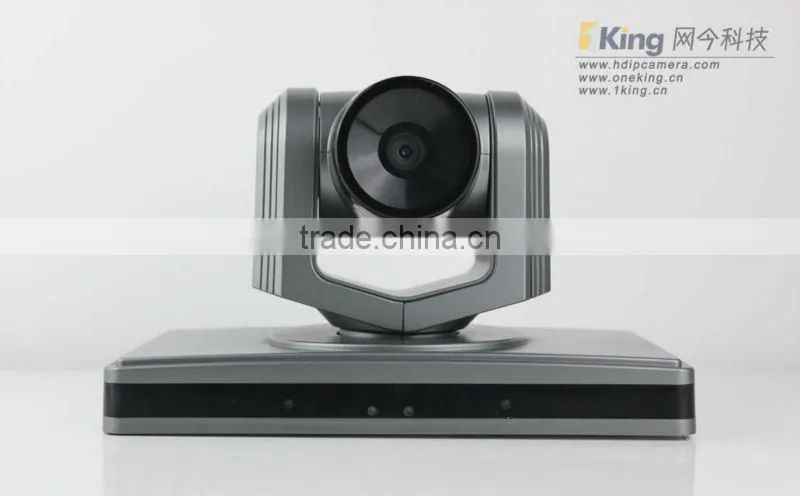

Full HD 1080p High Speed Dome Group Video Conferencing Ptz Camera

Full HD 1080p High Speed Dome Group Video Conferencing Ptz Camera thumbnail-1
Full HD 1080p High Speed Dome Group Video Conferencing Ptz Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System
Function:
Other, video
Simultaneous Interpretation:
Yes
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System
Function Other, video
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name 1king/OEM
Model Number HD-388

Specifications

group video conferencing ptz camera
10X Optical Zoom, 1080P
HOV. 48.4 degree
DVI/DVI to HDMI
top/Tripod Installation

Full HD 1080p high speed dome group video conferencing ptz camera



01) Full HD (1920x1080 30p)
Video conference camera multiple video conference

02) 10X Optical Zoom
1/2.5 model, primary color CMOS, 2.1 M compatible
1/3.6 model f = 4.5 – 45.0 mm F1.8 – 2.2
03) 359° Pan,+45~-30° Tilt
04) DVI/DVI TO HDMI Cable
05) VISCA IN/Out
06) RS-485/RS-232
07) IR Remote
08) -10 degree C to +60 degree C
09) Desktop/Tripod installation



<

Model No.
HD388



Image Sensor
Sensor
1/2.5" CMOS
2.0 Mega Pixel


Effective Pixels
2.1 Megapixel
Illumination
1.0 Lux at F1.8
White Balance
Auto/Manual
Gain Control
Auto
Back-light
compensation
On / Off
E-Shutter
1/50~1/4000S
S/N Ratio
> 50db
Lens
Focus
f=4.5-45mm F1.8-2.2
Iris
Auto/Manual


Zoom
10x Optical Zoom


Lens Hov
48.4°

Video Output
HDMI, DVI,

Video Output Model
1080P@30, 1080P@25, 1080P@24,
1080i@60, 1080i@50, 720P@60, 720P@50
Communication Interface
EIA/RS232C,EIA/RS485C (Bidirectional)
Communication
Control Protocol
VISCA,PELCO-D
Baud Rate
4800/9600bps
Tour
4 Line
Preset
64
Speed Matching
    Pan/Tlit movement speed depends on camera module zoom in/out
OSD Menu
  Access to OSD Menu and adjust camear module para meters
Image Auto Flip
Support Horizontal/Vertical image flip
Pan Speed
1-200 degree per second
Tilt Speed
1-150 degree per second
Pan Rotation Angle
0~355 degree
Tilt Rotation Angle
±45 degree
Auto Pan Scan
Support auto pan scan
Boundary Scan
0-355 degree (programmable)
Remote Controller
IR wireless control P/T/Z
Power Supply
DC12V±10%, 2A
Working Temperature
0-50°C
Environment Humidity
0-95%RH
Size(LxWxH)
250X140X154mm
Weight
1380g



Full HD 1080p high speed dome group video conferencing ptz cameraFull HD 1080p high speed dome group video conferencing ptz cameraFull HD 1080p high speed dome group video conferencing ptz camera

Full HD 1080p high speed dome group video conferencing ptz camera

Full HD 1080p high speed dome group video conferencing ptz camera
