20x Zoom 1080p hd Video Conference Camera for Video Conference Terminal

20x Zoom 1080p hd Video Conference Camera for Video Conference Terminal thumbnail-1
20x Zoom 1080p hd Video Conference Camera for Video Conference Terminal photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System
Function:
Other, video
Simultaneous Interpretation:
Yes
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System
Function Other, video
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name 1king/OEM
Model Number HD-820

Specifications

1080p hd video conference camera
DVI/DVI to HDMI output
HOV 55.4degree
IR Remote Control
Desktop/Tripod

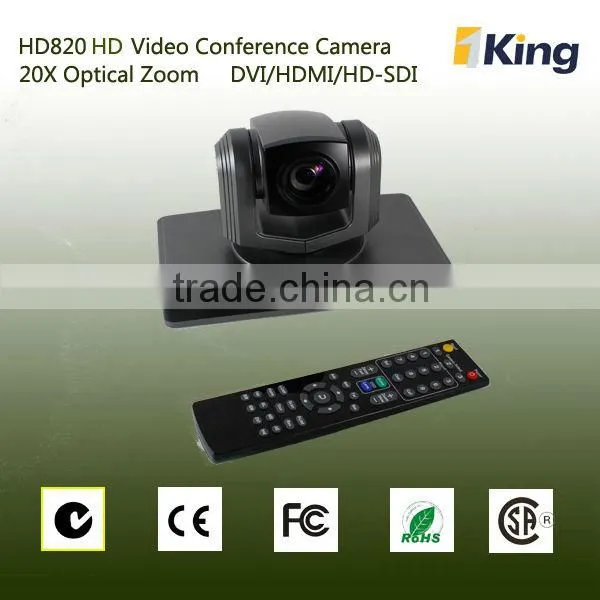

20x zoom 1080p hd video conference camera for video conference Terminal

01) Full HD (1920x1080 30p)
      HD video conference equipment Camera
02) 20 Optical x 12digital zoom
      1/2.8" Exmor CMOS, 3.27 Megapixel
0.5Lux at F1.6 f=4.7-90mm,F1.6-F3.5
      HOV 55.4 degree
03) 355° Pan, 90° Tilt
04) HDMI/HD-SDI output
05) VISCA IN/Out
06) RS-485/RS-232
07) IR Remote Controller
08) -10 degree C to +60 degree C
09) Desktop/Tripod installation


Model:HD820

<
Model No.
HD820



Image Sensor
Sensor
1/2." Type Exmor CMOS


Effective Pixels
3.27 Megapixel
Illumination
0.5Lux at F1.6
White Balance
Auto/Manual
Gain Control
Auto
Back-light
compensation
On / Off
E-Shutter
1/1~1/10,000S
S/N Ratio
> 50db
Lens
Focus
f=4.7-90mm F1.6-F3.5
Iris
Auto/Manual


Zoom x
20 Optical x 12 digital Zoom


Lens HOV
55.4°

Video Output
HDMI,DVI

Video Output Model
1080P@30/25,1080i@60/50,720P@60/50

Communication Interface
EIA/RS232C,EIA/RS485C (Bidirectional)
Communication
Control Protocol
VISCA,PELCO-D
Baud Rate
9600/38400bps
Cruise Sequence
4 cruise sequence
Preset Position
64 preset positions
Speed Matching
    Pan/Tlit movement speed depends on camera module zoom in/out
OSD Menu
  Access to OSD Menu and adjust camear module para meters
Image Auto Flip
Support Horizontal/Vertical image flip
Pan Speed
1-200 degree per second
Tilt Speed
1-150 degree per second
Pan Rotation Angle
0~359 degree
Tilt Rotation Angle
±45 degree
Pan Scanning automatically
Support pan scanning automatically
Boundary Scan
0-355 degree (programmable)
Remote Controller
IR wireless control P/T/Z
Power Supply
DC12V±10%, 1.2A
Working Temperature
0-50°C
Environment Humidity
0-95%RH
Size(LxWxH)
250X140X154mm
Weight
1380g
20x zoom 1080p hd video conference camera for video conference Terminal
20x zoom 1080p hd video conference camera for video conference Terminal
20x zoom 1080p hd video conference camera for video conference Terminal
