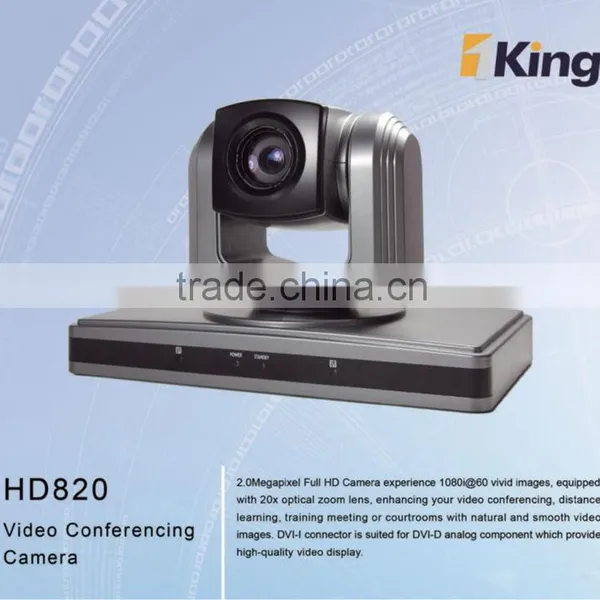

HD Video Conference Camera With Infrared Remote Control

HD Video Conference Camera With Infrared Remote Control thumbnail-1
HD Video Conference Camera With Infrared Remote Control photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System
Function:
Other
Simultaneous Interpretation:
No
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System
Function Other
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name Oneking
Model Number HD820-DSY-K3

Specifications

1. 355 degrees pan 1080p HD video conference camera.
2. Natural and smooth video images.
3. high-quality video display.

HD video conference camera with infrared remote control



Product Description



Features:

  •  Private Tooling  design High Definition PTZ camera
  • Fast and smooth video handling
  • Power ON-OFF switch
  • Work & Standby LED indicator
  • Speed Match
  • Auto/Manual focus/brightness/WB
  • RS-232C/VISCA Protocol
  • Lens/Dome OSD
  • Boundary scanning
  • Standby & wakeup status
  • Swap video format
  • DVI/HDMI Video output

Performance:

  • 1920x1080pixels progressive @30fps
  • 20x optical zoom
  • F=4.7-94mm F1.6-2.8
  • HOV 59 degree
  • 1/2.9” CMOS 2.1 Mega Pixel Sensor
  • Pan ±177.5 degree
  • Tilt +90 degree, -45degree
  • 64 preset positions
  • 4 cruise lines
  • DC 12V, 2A

Dimension:

  • L 250mm x W 140mm x H154mm
  • N. Weight: 2.6kgs
  • G. Weight: 4.8kgs

Installation:

  • Desktop
  • Ceiling mount
  • Standard Tripod accessory
Our Services



Model No.

HD820-DSY-K3

Sensor

Image Sensor

1/2.9" CMOS

Effective Pix

2.1 Megapixel

Min. Illumination

0.5Lux at F1.6

White balance

Auto/Manual

Gain control

Auto/Manual

Backlight compensation

On/Off

Shutter speed

1/1 - 1/10,000S

S/N ratio

>50db

Lens

Focus

f=4.7-94mmF1.6-2.8

Iris

Auto/Manual

Lens

20 Optical zoom

Horizontal view angle

59

Video output

HDMI, HD-SDI, DVI , YPbPr, CVBS

Signal system

1080P@30,1080P@25,
1080i@60,1080i@50,
720P@60,720P@50 ,720P@30, 720P@25 ,PAL ,NTSC

Control terminal

EIA/RS232C,EIA/RS485(Bidirectional)

Control Protocol

VISCA,PELCO-D

baud rate

9600/38400bps

patrol line

4 cruise sequence

preset position

64 preset positions

Speed Match

Pan/Tilt movement speed depends on camera module zoom in/out

OSD Menu

Access to OSD Menu and adjust camera module parameters

Image auto flip

Support Horizontal/Vertical image flip

Pan movement speed

1-200 degree/Second

Tilt movement speed

1-150 degree/Second

Pan movement range

Pan: 0-355 degree

Tilt movement range

Up: 45 degree, Down: 45 degree

Pan scanning automatically

Support Pan scanning automatically

Boundary scanning

0-355 degree (programmable)

Remote controller

IR Wireless Remote controller P/T/Z

Power supply

DC12V,2A

Work Temperature

0-50 degree

Humidity

0-95%RH

LxWxH

250mm x 140mm x 154mm

Weight

1380g



Accessories kits in package:

  • 1x HD 820-DSY Video Camera
  • 1x DC 12V/2A Power Adaptor
  • 1x User’s manual
  • 1x Installation brackets & screws
  • 1xIR Remote Controller
