Home > Products > New Products > The new conference camera with1080P Color PTZ (HD388-DSY-K2)

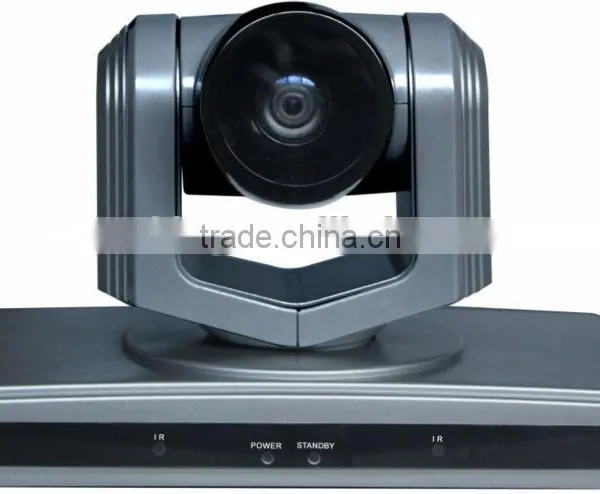

The new conference camera with1080P Color PTZ (HD388-DSY-K2)
- 1000 Piece / Pieces per Month
- ShenZhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | 1king | Model Number: | HD388-DSY-K2 |
Product Description
Specifications
1.It can auto tracking video conference camera.2.10x Optical Zoom Acute logic.
3.DVI and HDMI interface.
The new conference camera with1080P Color PTZ
Video conference type high speed camera HD388 products is the industry dedicated camera video conference system, the Japanese original full hd 1080 p movement (the original image, absolutely no compression).
Good appearance, Chic modelling, Structure is compact;
Smooth operation, No noise;
Precise positioning, Stops without deviation jitter, High reliability;
Can be long-term stable operation, Easy to use, Do not need to maintain.
With multipoint target preset, memory, scanning area, auxiliary switch control,infrared remote control, etc.
355 ° unlimited scanning range, compatible with a variety of control protocol, using standard RS485 / RS232 control mode.
Image Sensor | Sensor | 1/2.5 model, primary color CMOS, 2.1 M compatible |
Signal System | PAL/NTSC | |
Minimum Scene illumination | 1Lux at F1.8 | |
White Balance | AUTO/Manual | |
Gain Control | AUTO | |
Back-light compensation | ON/OFF | |
Electronic shutter | 1/5~1/4000S | |
S/N Ratio | >50db | |
Lens | Focus | AUTO |
Iris | AUTO/Manual | |
Zoom | 10X Optical ZOOM | |
1/3.6model f=4.5-45mmF1.8-2.2 | ||
Video output | HDMI/DVI/HD-SDI/CVBS/YPbPr | |
Video format | 1080P@30,1080P@25,1080P@24,1080I@60,1080I@50,720P@60,720P@50 | |
Control Decoder | EIA/RS-485 | |
Communication | EIA/RS-232(Bidirectional) | |
PTZ Control Protocol | VISCA,PELCO-P,PELCO-D | |
Baud Rate | 4800/9600 bps | |
Patrol tours | 4 | |
Preset | 64 | |
Save status after Power off | Support | |
Speed Matching Function | Support | |
OSD Menu | Support | |
Image Auto Flip | Support | |
Pan Speed | 0-100 degrees/s | |
Tilt Speed | 0-80 degrees/s | |
Pan Rotation Angle | 359degrees | |
Tilt Rotation Angle | +45, -45 degrees | |
Auto Pan Scan | Support | |
Boundary Scan | 0-359degrees(Programmable) | |
Remoter Control | IR Wireless remote control P/T/Z | |
Power | DC12V ±10% 1.2A | |
Operation Temperature | -10 degrees~60 degrees | |
Environmental humidity | 0-95%RH(non-condensation) | |
Length X width X high | 250mm x 140mm x 145mm | |
Weight | 900g/2600g(NET/PACKAGE) |
Accessories Including
1x HD 388 Video Camera
1x DC 12V/2A Power Adaptor
1x User’s manual
1x Installation brackets & screws
1x IR Remote Controller
