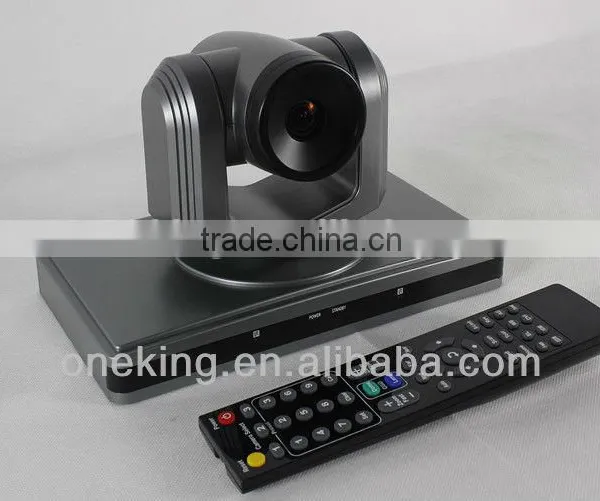

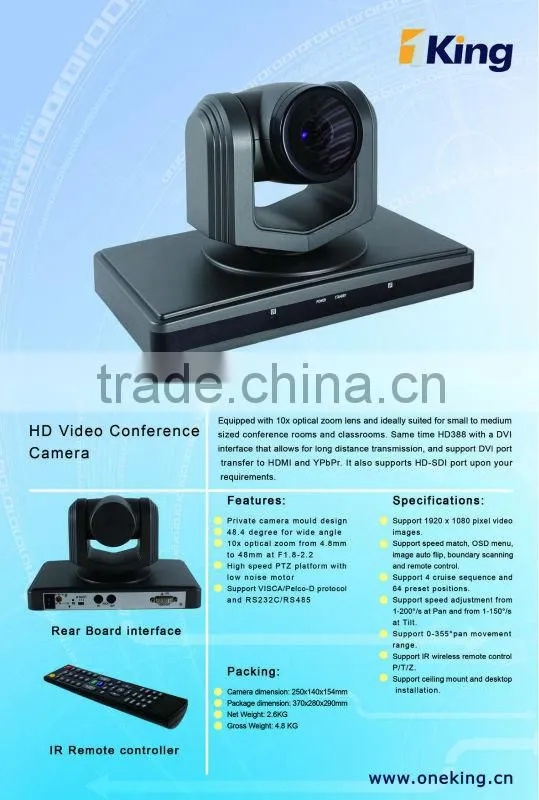

Help Center1080p hd Video Conference Camera(HD388-DSY-K1)
Related Products
-
Full High Definition Video Conference CameraNegotiableMOQ: 1 Piece -
The Best Track Video Conference Cameras With 10x Optical Zoom 2.1 Megapixel PtzNegotiableMOQ: 1 Piece
-
1080p HD PTZ Speed Dome Video Audio Conferencing for Conference RoomNegotiableMOQ: 1 Piece
-
1080P HD High Speed Dome PTZ HDMI Zoom Video Conference Camera for Education Video ConferenceNegotiableMOQ: 1 Piece
-
1080p HD PTZ Speed Dome Camera for Conference RoomNegotiableMOQ: 1 Piece
Specifications
1.2.10x Optical Zoom Acutelogic .
HD388-HDMI-K2 can support the 1080p camera system.
Video conference type high speed camera HDHD388 - HDMI - K2 products is the industry dedicated camera video conference system, the Japanese original full high definition 1080 p movement (the original image, absolutely no compression).
- Good appearance, Chic modeling, Structure is compact;
- Smooth operation, No noise;
- Precise positioning, Stops without deviation jitter, High reliability;
- Can be long-term stable operation, Easy to use, Do not need to maintain.
With multipoint target preset, memory, scanning area, auxiliary switch control, infrared remote control, etc.
359 ° scan range, compatible with a variety of control protocol, using standard RS485 / RS232 control mode.
|
Image Sensor |
Sensor |
1/2.5 model, primary color CMOS, 2.1 M compatible |
Signal System |
PAL/NTSC |
|
Minimum Scene illumination |
1Lux at F1.8 |
|
White Balance |
AUTO/Manual |
|
Gain Control |
AUTO |
|
Back-light compensation |
ON/OFF |
|
Electronic shutter |
1/5~1/4000S |
|
S/N Ratio |
>50db |
|
Lens |
Focus |
AUTO |
Iris |
AUTO/Manual |
|
Zoom |
10X Optical ZOOM |
|
1/3.6model f=4.5-45mmF1.8-2.2 | ||
Video Output |
HD-SDI/YUV/CVBS |
|
HDMI/DVI | ||
Video format |
1080P@30,1080P@25,1080P@24,1080I@60,1080I@50,720P@60,720P@50 |
|
Control Decoder |
EIA/RS-485 |
|
Communication |
EIA/RS-232(Bidirectional) |
|
PTZ Control Protocol |
VISCA,PELCO-P,PELCO-D |
|
Baud Rate |
4800/9600 bps |
|
Patrol tours |
4 |
|
Preset |
64 |
|
Save status after Power off |
Support |
|
Speed Matching Function |
Support |
|
OSD Menu |
Support |
|
Image Auto Flip |
Support |
|
Pan Speed |
0-100 degrees/s |
|
Tilt Speed |
0-80 degrees/s |
|
Pan Rotation Angle |
359degrees |
|
Tilt Rotation Angle |
+45, -45 degrees |
|
Auto Pan Scan |
Support |
|
Boundary Scan |
0-359degrees(Programmable) |
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
Power |
DC12V ±10% 1.2A |
|
Operation Temperature |
-10 degrees~60 degrees |
|
Environmental humidity |
0-95%RH(non-condensation) |
|
Length X width X high |
250mm x 140mm x 145mm |
|
Weight |
900g/2600g(NET/PACKAGE) |
|
