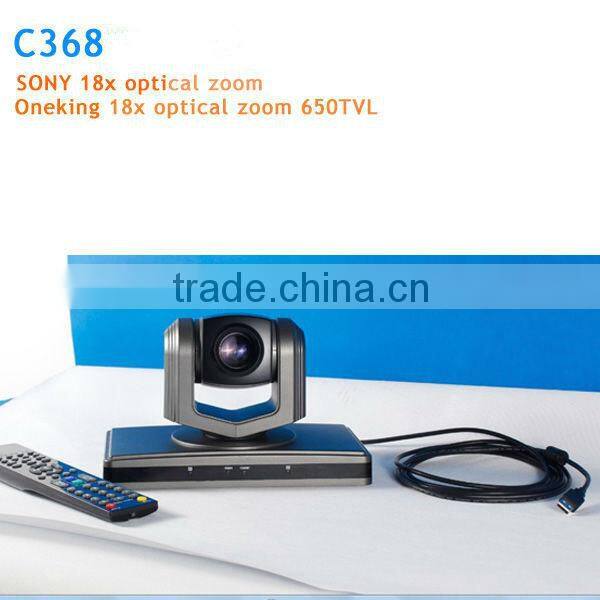

2014 OneKing Standard Definition Video Conference Camera
Specifications
1. Video conference camera.2. Ideally suited for Web video conferencing system, remote education system.
2014 OneKing Standard Definition Video Conference Camera
Detailed parameters:
|
Camera module |
C368 / Sony 18X |
|
Image Sensor |
Sensor |
1/4" Exview CCD |
|
Signal System |
PAL/NTSC |
||
Illumination |
1.0Lux/F1.4 |
||
White Balance |
Auto/Manual |
||
Gain Control |
Auto |
||
Back-light |
On /Off |
||
E-Shutter |
1 - 1/100,000s |
||
Horizontal |
650TVL |
||
S/N Ratio |
>50db |
||
Lens |
Focus |
f=4.1-73.8 F1.4 -3.0 |
|
Iris |
Auto/Manual |
||
Zoom |
18 Optical Zoom |
||
Video Output |
SD:VBS,S-Video(Sony lens), USB(optional) |
||
Control Decoder |
Built-in decoder |
||
Communication |
EIA/RS422, EIA/RS232(Bidirectional) |
||
PTZ Control Protocol |
VISCA, PELCO-P, PELCO-D (optional) |
||
Baud Rate |
9600/38400bps |
||
Patrol Lines |
4 Patrol Lines |
||
Preset Position |
64 Preset Position |
||
Power-off Protection |
Saved scanning or patrol line settings Automatically Before power off |
||
Speed Matching |
Slow down camera Pan/Tilt movement speed while camera zooming in |
||
OSD Menu |
To change parameters of camera or camera module from OSD Menu |
||
Image Auto Flip |
Image Auto Flip |
||
Pan Speed |
1-200° /S |
||
Tilt Speed |
1-150°/S |
||
Pan Rotation Angle |
360° continuously |
||
Tilt Rotation Angle |
Up: 90°, Down: 45° |
||
Auto Pan Scan |
Support auto pan scanning |
||
Boundary Scan |
0-359° (programmable) |
||
Remoter Control |
IR wireless remote controller P/T/Z |
||
Power Supply |
DC12V±10%, 1.2A |
||
Working Temperature |
0-50°C |
||
Environment Humidity |
0-95%RH |
||
Size(LxWxH) |
250X140X145mm |
||
Weight |
1380g |
||
