ASAHI NANTAI Automatic Die Cutting Machine

Name: ASAHI NANTAI Automatic Die Cutting Machine
Brand: Nantai / Asahi
SKU: 110408047
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Packaging Type:

Other, set

Packaging Material:

Other, corrugated paper

Nantai Precise Machinery & Tech. Ltd. Foshan

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Packaging Type Other, set

Packaging Material Other, corrugated paper

Automatic Grade Automatic

Driven Type Electric

Power 19KW

Place of Origin Guangdong, China

Brand Name Nantai / Asahi

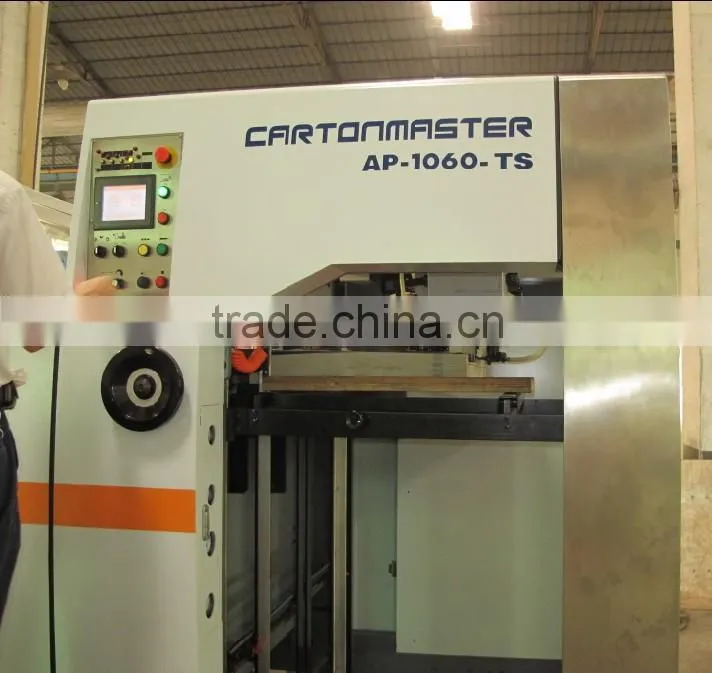

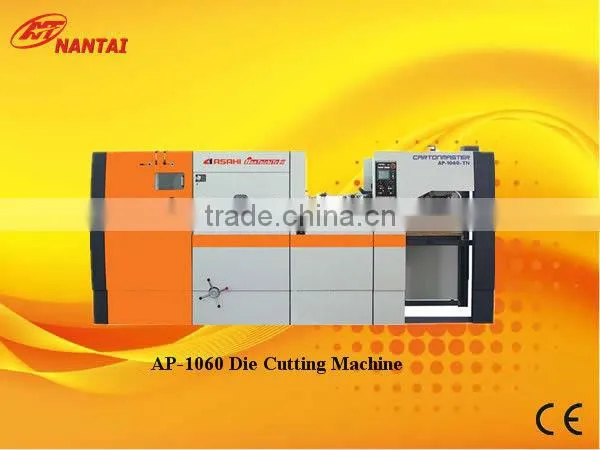

Model Number AP-1060TN Automatic Die-cutting Machine

Weight 19Tons

Certification CE

After-sales Service Provided Overseas service center available

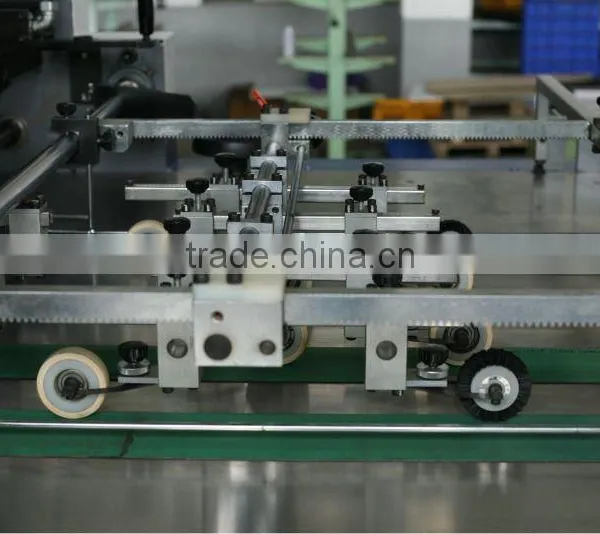

High-speed paper pressing and transferring device can effectively feed all sorts of paper in different sizes to die-cutting section.
The position of rubber conveyer belt; pressure roller and brush roller can be easily adjusted according to the size of sheets.
The height of press wheel and belt can be easily adjusted according to the thickness of sheets, and this can guarantee transfer speed precision.

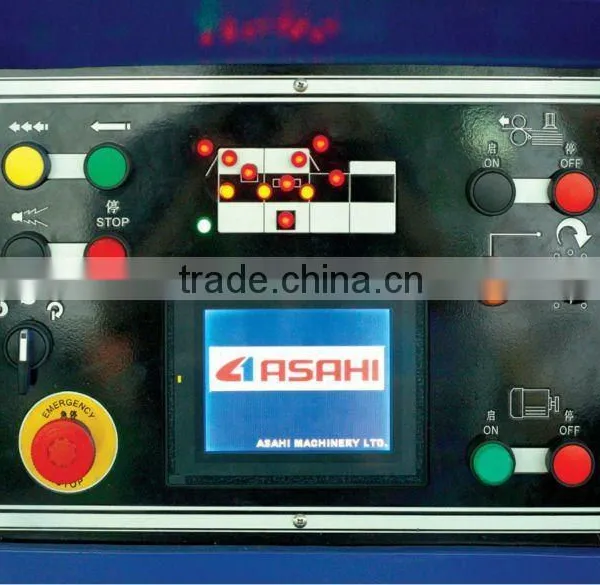

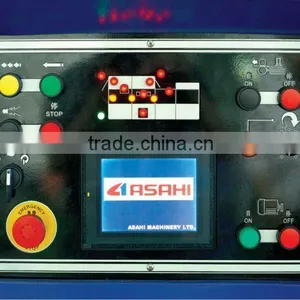

Centralized control for easy operation.
Constant monitoring of sensor conditions.
Feeder and delivery tables include incremental hoist control that operate in 5 different modes.
Visual fault finding diagnostic"help and Maintenance Menu".
Optional, communications with tailor made program for production planning links.
Motive force transmission device adopts Sankyo cam box(graduator)
from Japan, and safety clutch.
The safety feature for overload protection can protect gripper pin from striking, make paper transfer more stabely with higher precision.
The independent cam link mechanism moves with graduator, making receiving more tidy.

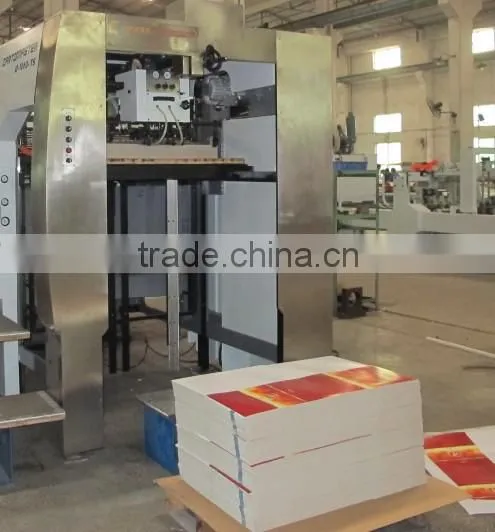

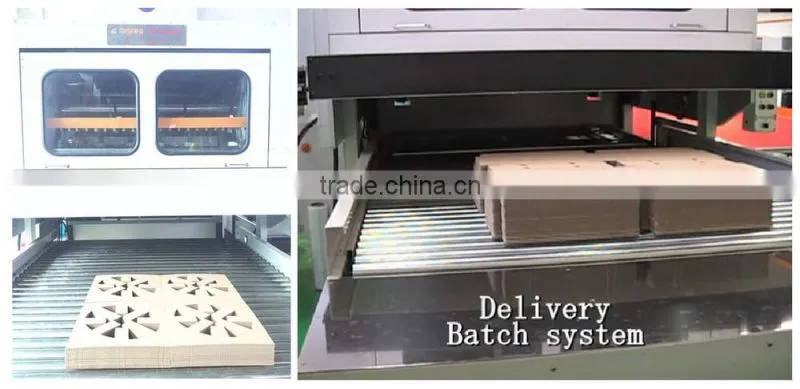

Delivery section is used for stacking finished paper. When gripping bar catches paper and stop at delivery section, discharged ram pushes the paper down.
A long brush makes finished paper fall smoothly, and eliminates static electricity.
After straightening, paper stacks tidily on the bracket.
The partial inserling and labeling counter and auxiliary receiving paper platform are fitted to realize non-stop receiving
