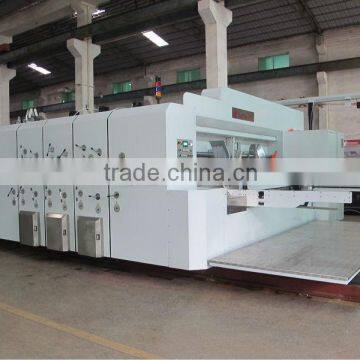

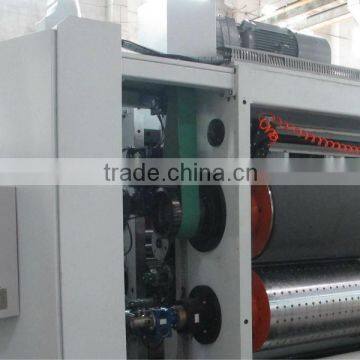

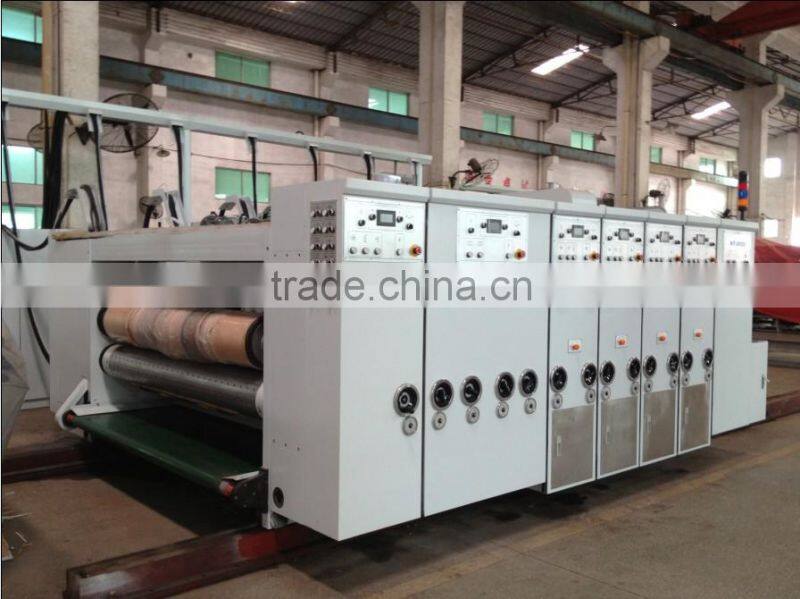

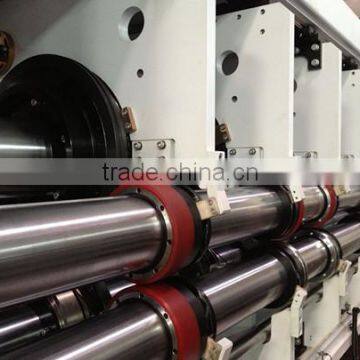

Carton Flexo Printing Slotting Diecutting Machine
- 3 Set / Sets per Month
- guang zhou/yan tian
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V/50HZ | Place of Origin: | Guangdong, China | Brand Name: | Nantai/Asahi |
Model Number: | NT0920 Flexo Printing Slotting Machine | Weight: | 40Ton | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
- The three-shaft front roller feeding system makes feeding more accurate. Feeding thin and bending sheets becomes easier.
- The sheet feeding stroke can be preset so as to reduce the feeding pressure of the sheet-pulling roller.
- Continuous feeding, skip feeding or single-sheet feeding is possible. The attached counter can accurately record the quantity of production.
- The front edge of the sheets is taken as the baseline so that mechanical errors are reduced and the printing and slotting can be more accurately positioned.
- The air flow and pressure are controlled by a frequency converter to satisfy the requirments for the thickness and size of the sheets.
- Double paper feeding system, more stability during feeding.
- The upper paper feeding roller adopts quick-change system. The roller and gudgeon block are separated. The whole roller can be changed when necessary. Easy maintenance.
- The lower paper feeding roller can be adjusted manually, and the adjusted data will be displayed on the dial.
- The highly effcient de-dusting device can substantially remove the dust and dirt from the printing surface of the sheets and enhance the printing quality.
- The rear sheet holder can move forward and backward, upward and downward through electric control. Adjustment can be made quickly.
- The powerful cylinder main lock for the whole machien makes the system more stable.
- A motor start protective device is adopted for the machine. When not properly secured, the machine will not start up.

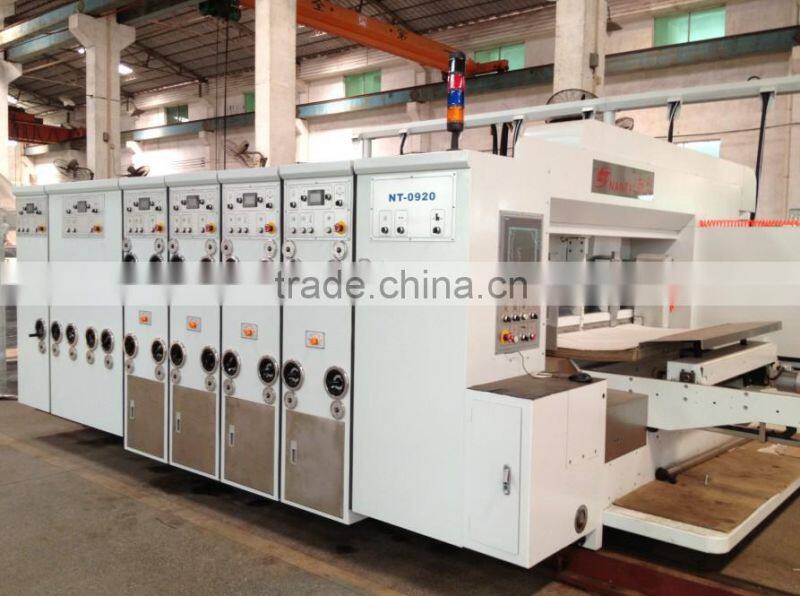

MODEL | NT0920 |
Printing Paper | A,B,C,A/B,corrugated cardboard (maximum clearance:7mm) |
Production Speed | 250 sheets/mainute(to be determined by size of carboard and material quality) |
Applicable Size | 2000mm*880mm |
Maximun Size of Paper at Interval Paper Feeding | 200Cmm*1200mm |
Minimum Paper Size | 700mm*260mm |
Maximum Printing Size | 1850mm*880mm |
Standard Printing Thickness | 7.2mm |
Maximum Width of Pasted Carton | 50mm |
Left-Right Transverse of Anvil Block | ±25mm |
Height of Die Cutting Blade Helight | 25.4mm |
Inner Diameter of Cutting Die | Φ250mm |
Maximum Die Cuting Area | 1850*880mm |
Diameter of Printing Roller | Φ298.8mm |

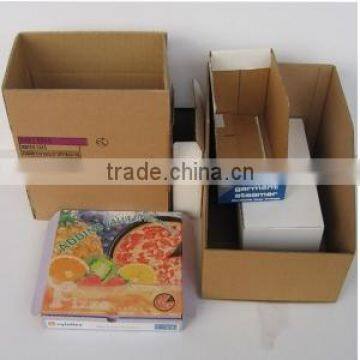

Carton Sample
Factory View
