Nantai-Bottom Vacuum Suction Flexo Printing Diecutting Machine

Name: Nantai-Bottom Vacuum Suction Flexo Printing Diecutting Machine
Brand: Nantai/Asahi
SKU: 110408115
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Other, Nude packaing

Nantai Precise Machinery & Tech. Ltd. Foshan

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Other, Nude packaing

Packaging Material Other

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 37KW

Place of Origin Guangdong, China

Brand Name Nantai/Asahi

Model Number NT-1225

Weight 64tons

Certification CE

After-sales Service Provided Overseas service center available

Feeding section

Controlled computerized, ordering system, fully automation. Gap, phase and position adjustment are computerized and electrical.
Printing section effective with vacuum suction(bottom suction) delivery. Cardboards smoothlyadsorbed on the transfer conveyor wheel, assure small and thin cardboard more accuate to convey.

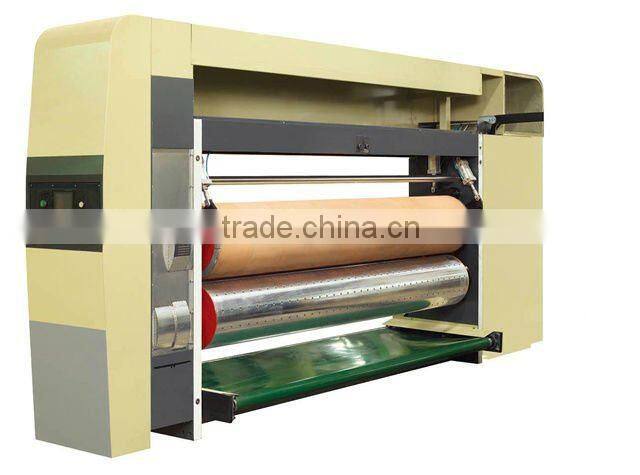

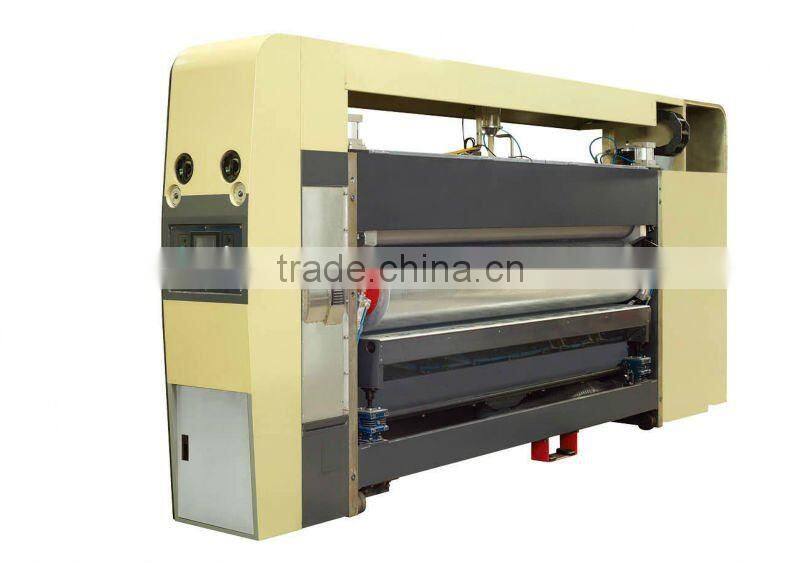

Printing section

Adopt imported control systems, touch screen display control, convenient and reliable.
High precision geards, accurate and durable, made from high quality alloy steel CrMnTi, carburized HRC60.
Best quality drawn steel roller, ensures a long-term accuracy.
Remote maintenance by computer, quickly solved equipment failures, improve maintenance efficiency and reduce maintenance costs

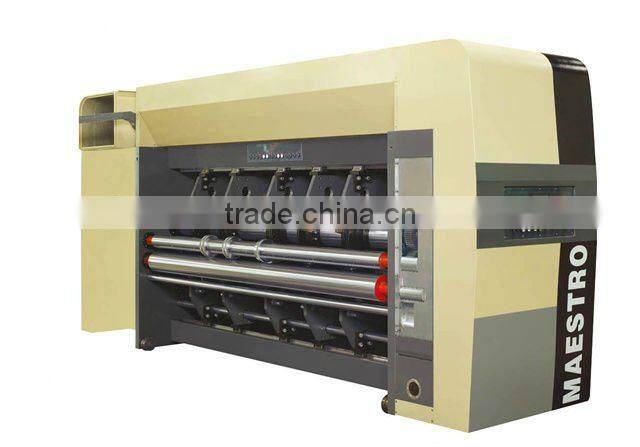

Slotting section
The axial adjustment of creasing whee, paper-feeding wheel and slotting knife head are set on touch screen, promptly and accurately. The next ordr can be predefined during prodcution. With central knife moving structure, beging able to produce large-size 2 piece cartons.

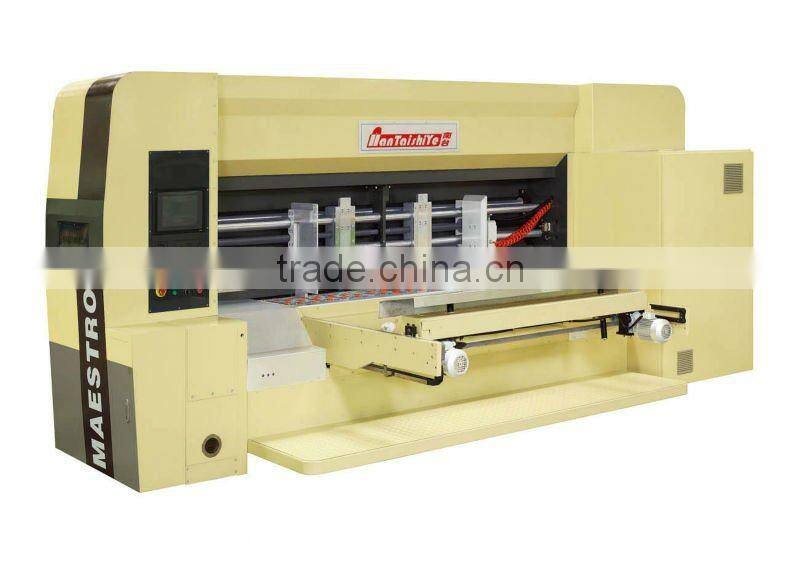

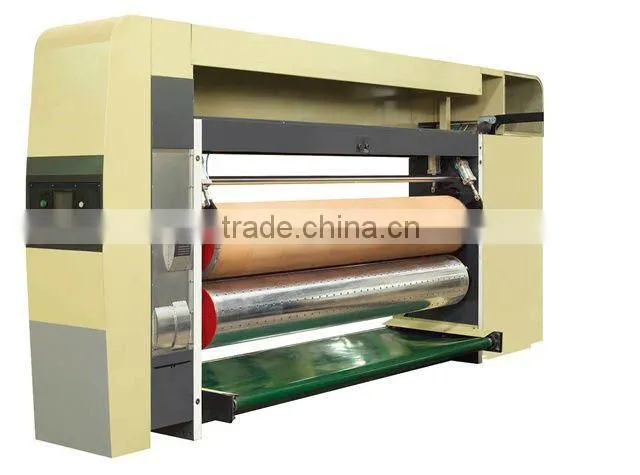

Die cutting section

A speed difference offsetting device is adopted, to make sure linear speed consistent.
The anvil rubber roller is designed as folded rubber cushion, providing convenience and ease for reoval, installation and replacement.
quick-wear part

Carton Simple

TECHNICAL DATA
MODEL	NT1225
Printing paper	a,b,c, a/c, c/c and a/b/c pit corrugated cardboard (maximum clearance: 9mm)
Applicable size	2470X1200mm
Maximum speed	220 sheets/mimute (depends on the size and the quality of the paperboard)
Economical speed	100 sheets/minute (depends on the size and the quality of the paperboard)
Maximum paper size	2470 X1200 mm
Maximum size of feeding paper at interval	2470 X 1500 mm
Minimum paper size	700 X 350 mm
Maximum printing size	2410 X 1150mm
Standard printing thickness	7.2mm
Maximum width of carton	50mm
Chromatically precision	chromatically precision (intermediate speed) slotting precision: ±1.5mm die-cutting precision: ±1mm
Diameter of printing roller	φ407.8mm
slotting width X Max. depth	7X270mm
Left-right transverse of anvil block	±25mm
Height of die-cutting blade	25.4mm
Inner diameter of cutting die	φ360mm
Maximum die cutting area	2410X1200mm
Size of anvil block( width x thickness)	257.4 x 8mm
