*Air blower helps the boards down,while front patting boards make the front and back flat and neat.
*Motorizd adjustment of left and right side of stacker so that corrugated cartons are piled in the middle.
*Mororized movement of front and back stop out.
*Piles of 10_40 cartons can be set and sent out.
*Board lift roller device for easy insertion of corrugated cartons at a latet time.
*Motorized adjustment of the height of sheet pressing frame.

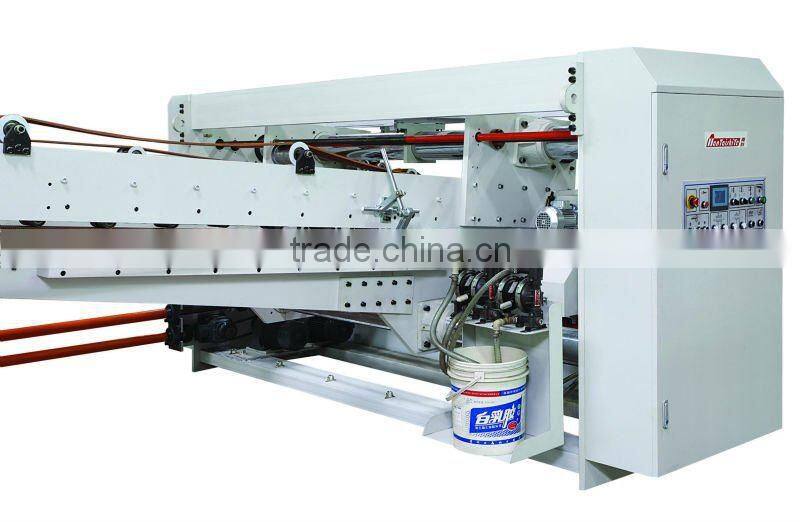

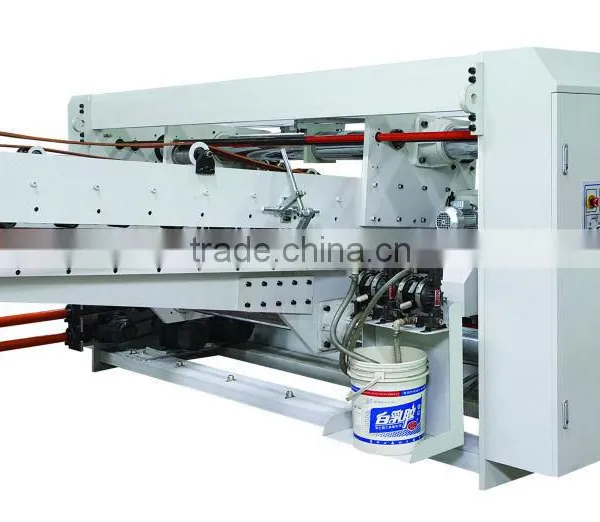

*Gluingpart:Gluing wheel adopt non-stop design(electric gluing device is optional),in order to avoid the glue solidified when machine stops running fir a short time.The gap between gluing wheels is easily adjusted.Yhe dial can handle the gluing fir paperboard with thickness from 1 to 12mm.The glue volume is simply controlled too.
*The belt speed for upper and down bridge is adjusted synchronously with the speed of production spe ed for floxo printer slotter.At the same time,the folding belt,conveyor belt and production speed or floxo printer slotter are almost same to aviod folding gluer part and flexo printer slotter part are not synchronous,which may lead to paperboard jammed and achieved precise delivery
*Upper and lower belt speed can be regulated respectively,namely if their speeds are different,they can be adjusted to the same.
Carton Sample
NO. |
PART /SYSTEM |
SPECIFICATION |
REMARK |
1 |
Air Blower assistant device |
Air blower helps the boards down, while front patting boards make the front and back flat and neat. |
|
2 |
Accumulating section |
Motorized adjustment of left and right side, Motorized movement of front and back stop board |
|
3 |
Electric gluing device |
Optional American brand “Valco” electric gluing device, when speeds change, gluing can be adjusted automatically. |
|
4 |
Stack enactment |
Piles of 10-40 cartons can be set and sent out. |
|
5 |
Board lift roller device |
For easy insertion of corrugated cartons at a later time. |
|
6 |
Sheet pressing frame |
Motorized adjustment of box height |
|

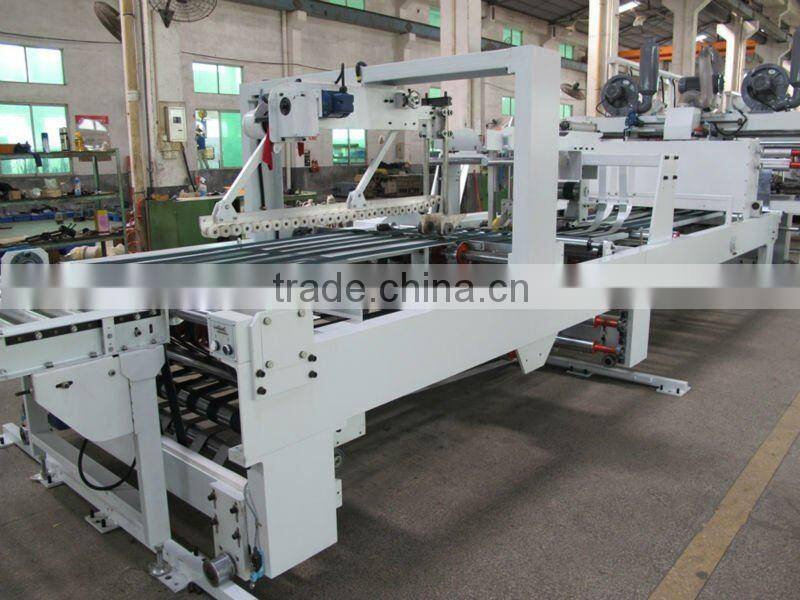

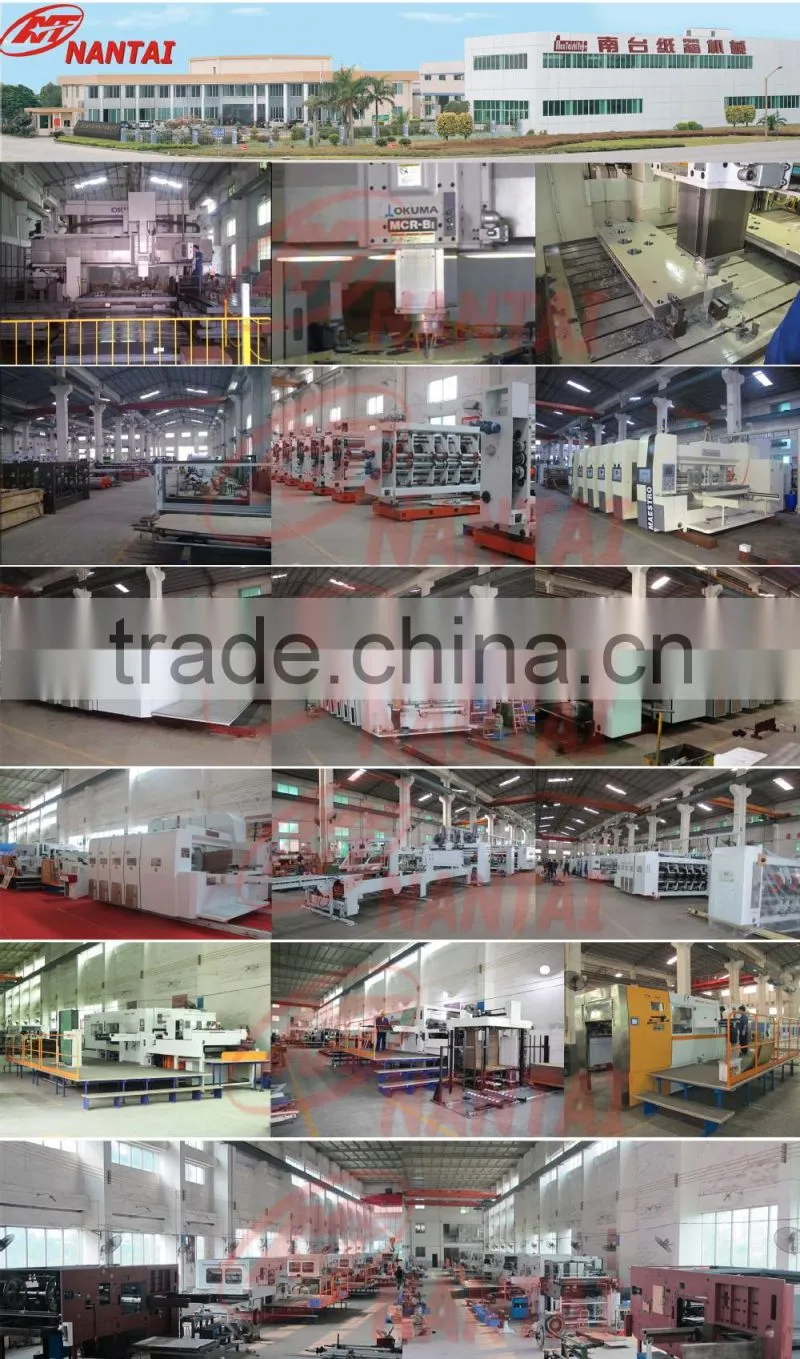

Factory View
