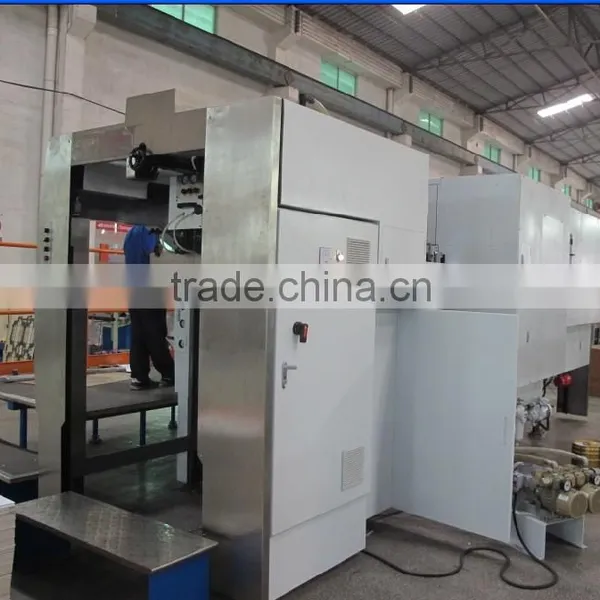

ASAHI NANTAI Automatic Diecutting and Creasing Machine

Name: ASAHI NANTAI Automatic Diecutting and Creasing Machine
Brand: Nantai / Asahi
SKU: 110407877
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Other, nude pack

Nantai Precise Machinery & Tech. Ltd. Foshan

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Other, nude pack

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 19kw

Place of Origin Guangdong, China

Brand Name Nantai / Asahi

Model Number AP-1060

Weight 18tons

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

The machine is mainly used for die cutting, creasing and cold pressing cartons, cardboard box and labels in packaing and decoration industry, especially for various exquisite printing, such as cigarette packs, wine boxes, gift boxes, home appliance boxes, cosmetic boxes, etc.
The machine can mark convex-concave impression, providing stereoscopic printing. Machine automatically run from feeding section, and die cutting section and delivery section, has many functions and advantages such as automatic checkout function, failure indication function, non-stop exampling function, heavy die-cutting pressure, high registration precision, etc.
The main driven system of this machine equips magnetic clutch and brake. The main sprocket shaft equips torsion limiter(safety clutch). There are many safety detective cameras and safety devices, utmost avoid the damages of operator due to emergency, providing safety for person and equipment.

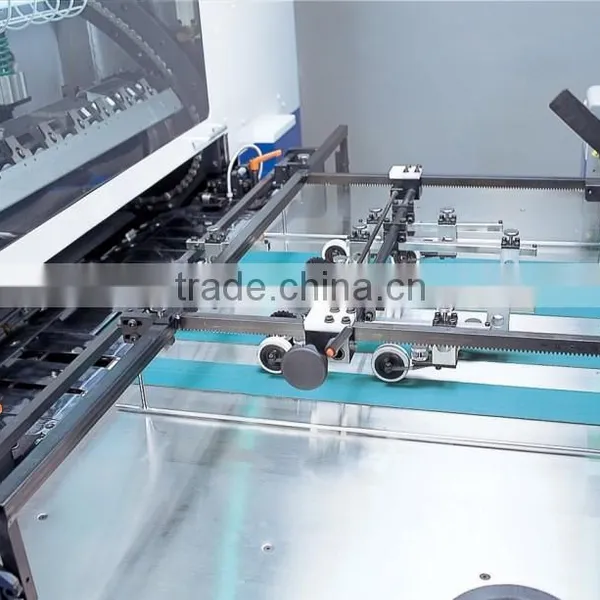

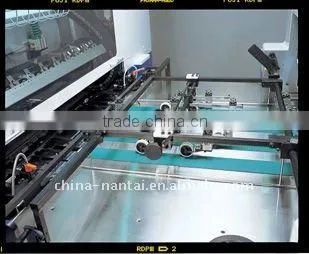

Feeding transfer system

High-speed paper pressing and transferring device can effectively feed all sorts of paper in different sizes to die-cutting section.
The position of rubber conveyer belt; pressure roller and brush roller can be easily adjusted according to the size of sheets.
The height of press wheel and belt can be easily adjusted according to the thickness of sheets, and this can guarantee transfer speed and precision.

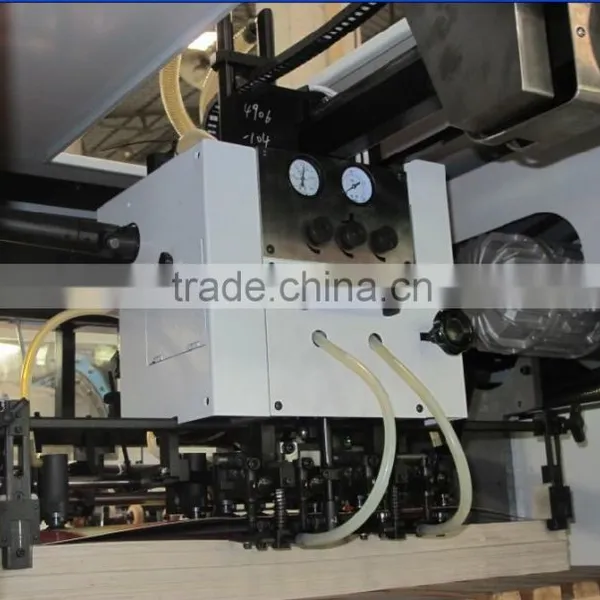

Feeder

High-speed feeder feeding system from Japan is adopted, with vac-sorb can send the board one by one to die-cutting section.
Pressure and inspiratory capacity of vac-sorb can be adjusted according to thickness; status and shape of the board.
The front part of feeder has micromatic setting, can move all around, and makes sure the precision of feeding.
Treble safety protection device prevents feeder head from bumping.

Cam box from Sankyo

Motive force transmission device adopts Sankyo cam box (graduator) from Japan, and safety clutch.
The safety feature for overload protection can protect gripper pin from striking, make paper transfer more stabely with higher precision

Delivery section

The partial inserting and labeling counter and auxiliary receiving paper platform are fitted to realize non-stop receiving.

The independent cam link mechanism moves with graduator, making receiving more tidy

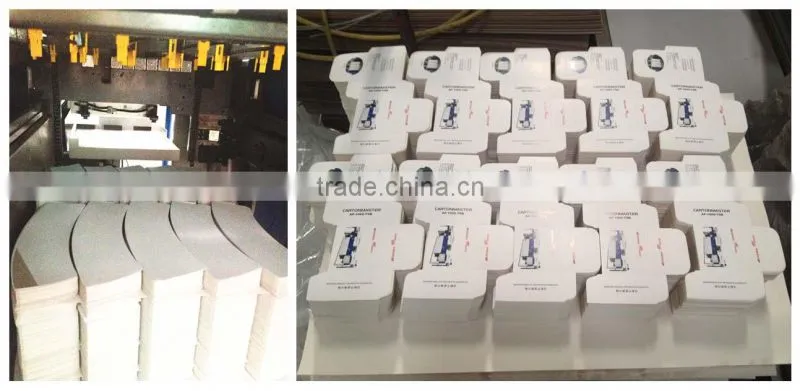

Carton Sample

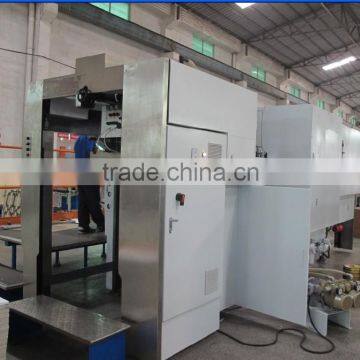

Factory View

MODEL	TECHNICAL DATA
Maximum sheet size	740X1060mm
Minimum sheet size	270X400mm
Maximum cutting size	730X1050mm
Minimum cutting size	270X400mm
Minimum gripper size	8mm
Maximum speed	7500i.p.h
Maximum operational pressure	250tons
Required power supply	19KW
Inside size	764X1120mm
Paper thickness	For cardboard: 0.1~1.5mm For corrugated cardboard: 4mm B flute
Die-cutting precision	±0.1mm
Net weight of machine	13tons
Exterior sizes	5708X3700X2040mm
