1.Description
Based on many years of research experience, Zonfa Trinity successfully made the new type extrusion with high output, which using the European highest level technology, can guarantee customers’ requirement on high quality.
This machine is using R&P’ s controlling system, which contains flexible architecture, more open operation system and better communication. ALL of these advantages guarantee the stability of this instrument, and makes the user more convenient on maintenance.
In collaboration with Nordson Xaloy, Trinity develops a new screw with 31D in the effective length. With molybdenum-plating treatment on the surface of all screw, they have the highest wear resistance. Adopting proven core temperature controlling way of the intracool self-adjusting and non-maintenance, it provides the best processing temperature control box with wide range for inspection. Under the high yield and negative pressure, we can get stable and qualified products. Trinity adopts ZAMBELLO TST series of ultrahigh torque gearbox, with the advantage of high torque, low noise, low malfunction and long service life. It will be the best choice of seeking for high level products.
According to customers’ specific requirements, we can provide systemic design plan that are easy to operate such as different extrusion height and electric cabinet installation direction.

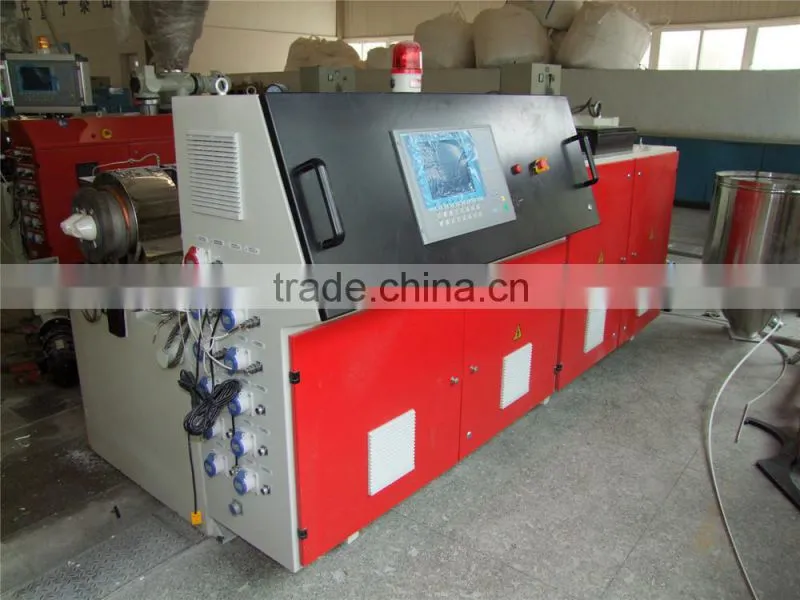

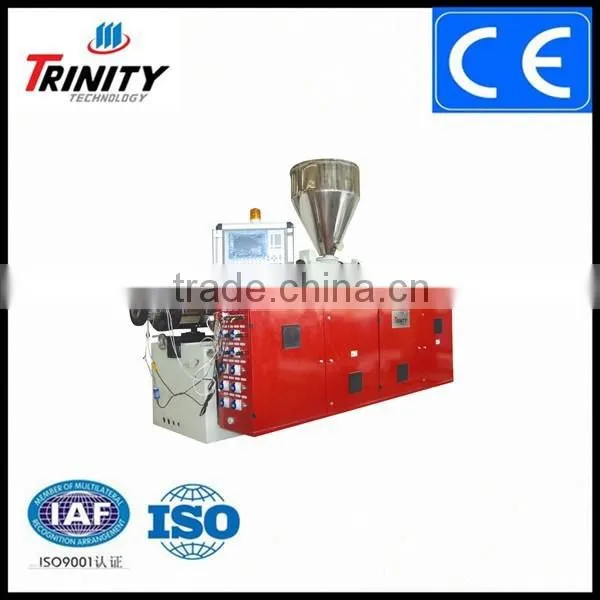

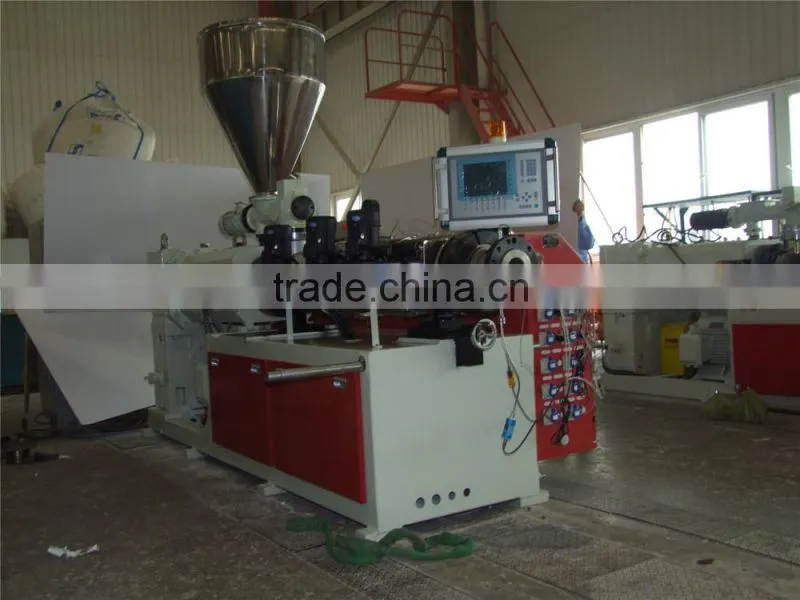

2.Product Show
3.Different Types
Type |
TRINITY 75-31/P |
TRINITY 92-31/P |
TRINITY 114-26/P |
Screw rotate speed (rpm) |
28 |
24 |
19 |
Screw L/D |
31 |
31 |
26 |
Motor Power(kw) |
30 |
45 |
65 |
Capacity(kg/h) |
80/240 |
130/150 |
230/460 |
Extrusion center height(mm) |
1100 |
1100 |
1100 |
L*W*H(mm) |
4400*1400*2500 |
5100*1400*2600 |
5500*1400*2600 |
Torque(Nm) |
9600 |
16100 |
35000 |
Net Weight(kg) |
3600 |
4500 |
6400 |
Type |
TRINITY 45/100 |
TRINITY 55/110 |
TRINITY 65/132 |
TRINITY 80/156 |
Screw Rotate Speed (rpm) |
35 |
35 |
35 |
35 |
Motor Power(kw) |
15 |
22 |
37 |
55 |
Capacity(kg/h) |
30/80 |
50/130 |
70/180 |
100/280 |
Extrusion center height(mm) |
1050 |
1050 |
1050 |
1050 |
Net Weight(kg) |
2500 |
3500 |
4000 |
5500 |
4. ZAMBELLO TST Gear Box
Zambello TST super high torque fear box, with the advantage of high torque, low noise, low malfunction and long service life. It will be the best choice of seeking for high level products. the life time of thrust bearing is more than800,000 hours.
5.Payment
40% of the total contract value: the downpayment |
55% is the value to be payed before the delivery |
5% is the money after your receptance of the toolings. |
6.More Choice

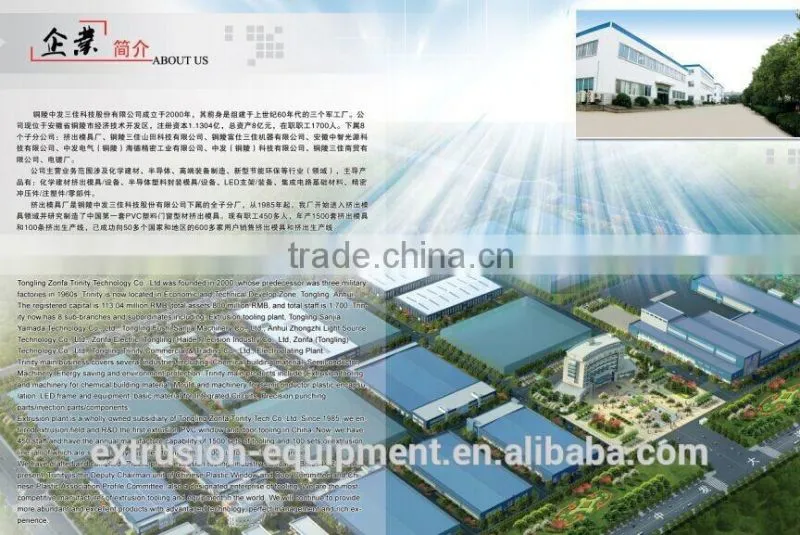

Company Show
Catch up with World first-class technology, Revitalize the national science and technology development, Create value to global customers.
Brand Name |
Trinity |
Year Established |
2000 |
Business Type |
Manufacturer, Trading Company |
Main Product |
Extrusion tooling, Extruder, Downstream equipment, Co-extruder, Cutting machine |
Operation Address |
Anhui, China (Mainland) |
Number of Employees |
301 - 500 People |
Management Certificate |
ISO9001 |
Main Markets |
North America, Eastern Asia, South Asia, Western Europe, Eastern Europe |

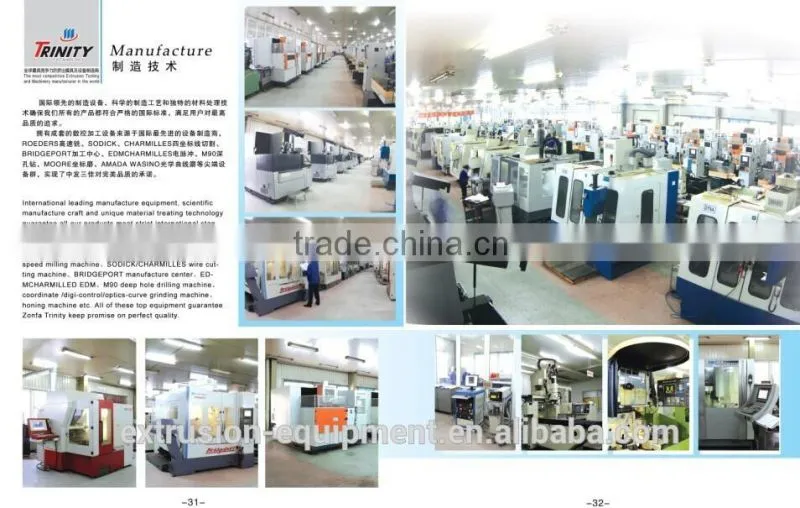

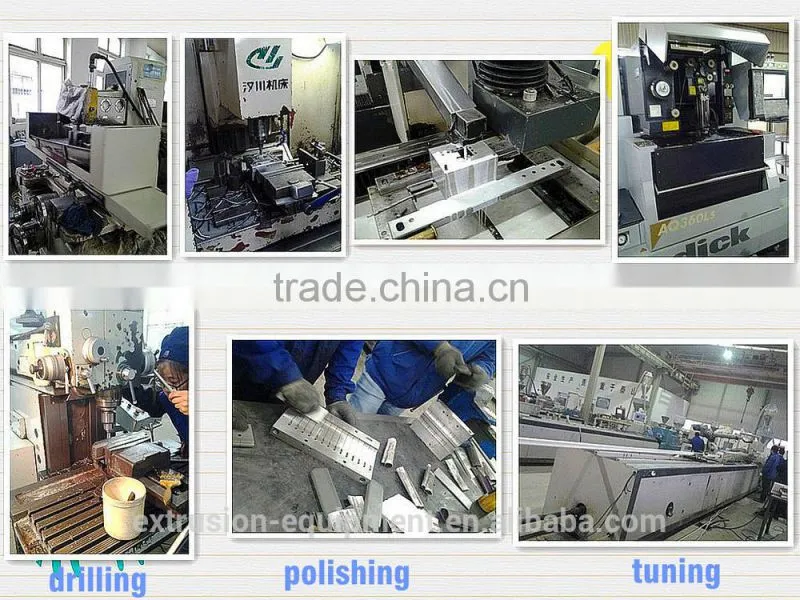

Production Line& Equipment
Certificates
Customers
If you are interested in our extruder,
pls just feel free to send us your inquiry.
We wil try our best to quote the competitive price for you.
Our company owns 80 qulified engineers. We can provide suitable solutions for you, guarantee smooth production and create value to you!
Welcome to visit our factory!
