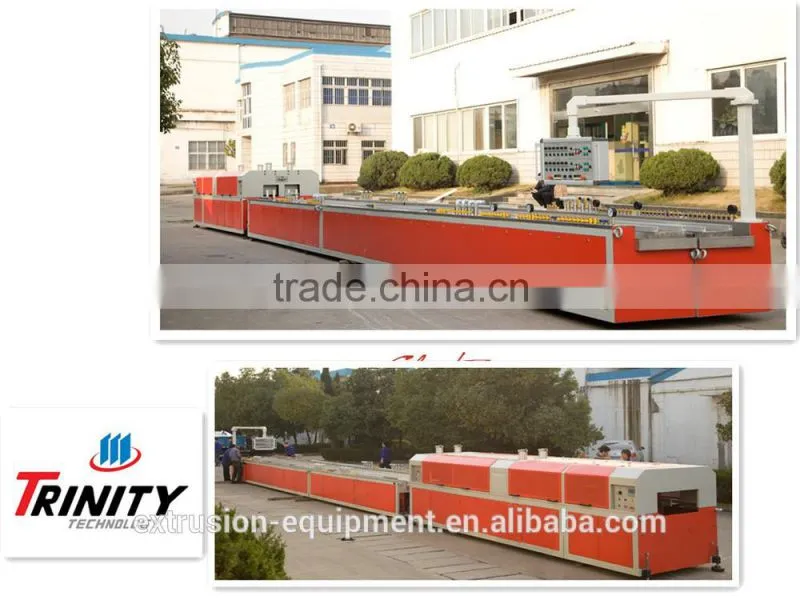

China made trinity-brand downstream equipment for extrusion line
1. Zonfa Trinity develops three kinds of downstream equipment, including single strand, double strands and panel downstream equipment.
2. With regard to the length of calibration table, there are 6m, 8m, 11m and 14m for your option.

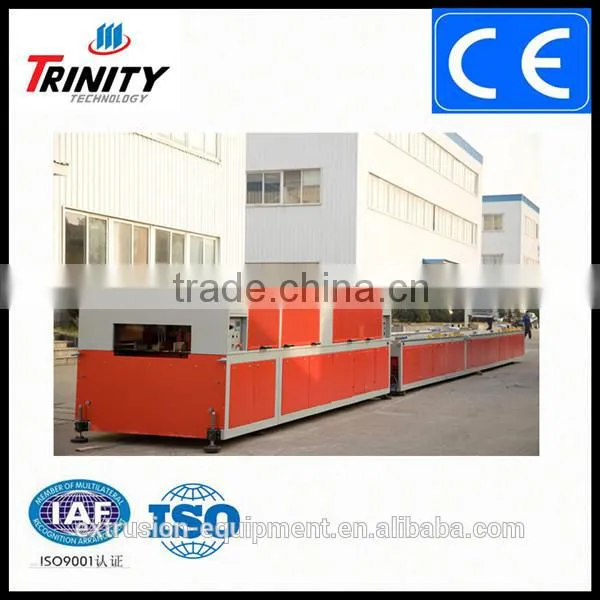

3. Advanced energy saving design, it can reduce energy consumption by 40%. Haul-off machine adopts Trinity unique lifting technology with the advantages of stable work and strong pulling force.
4. Cutting uint has two options, saw cutting and dust free guillotine cutting.
5. In accordance with customers' individual requirements, Trinity can provide energy saving and stable systemic design solution.
1. Established in 1965 and first invented the profile line in 1985.
2. Stock No.: SH600520
Our company Honors:
1. Before the delivery, we will pretest the machine in our site and once get good results, we will tell you to deliver.
2. After the machine arrive your factory, if you need, we can send techincians to your site to test and assemble the machine.
3. We guarantee the quality of the machine for one year. And if any problems with the machine, we will repair it for free.
Also, if the components of the machine are broken, we will help you replace them.
Main parameters of the machine:
| SS6 m Standard structure and parameters | ||||
| No. | Description | Specification | Qty | Remark |

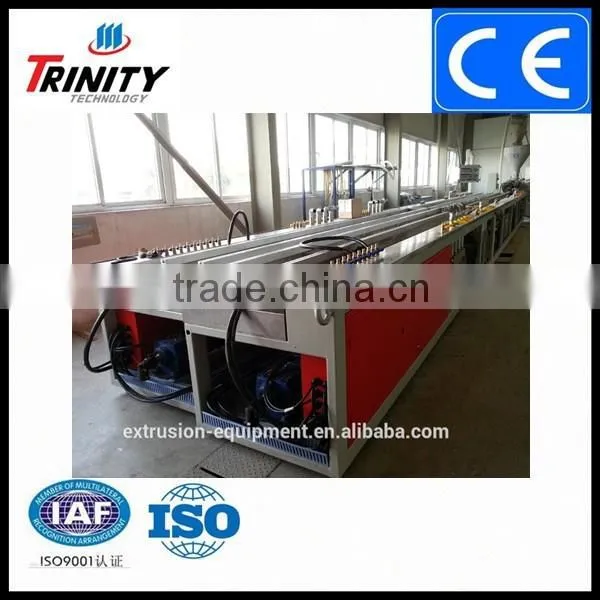

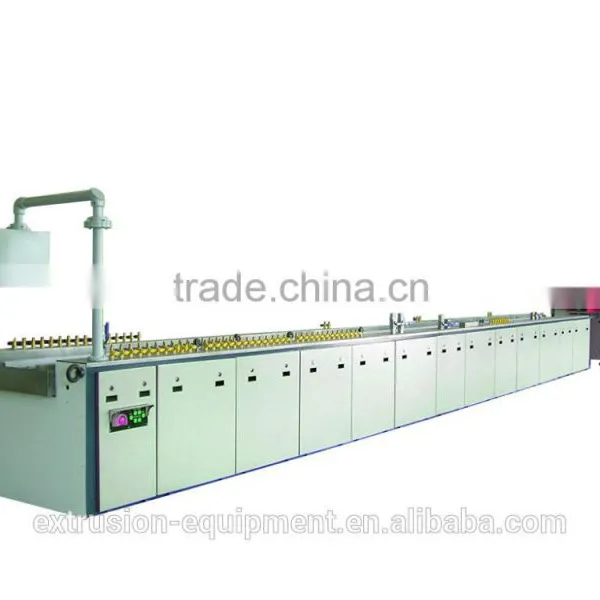

| Calibration Table | ||||
| 1 | Vacuum Pump ( SIHI) | 6kW | 1 | |
| 2 | Vacum Cyclone Pump ( SIHI) | 6kW | 1 | |
| 3 | Water Pump (Groundfos) | 7.5KW | 1 | |
| 4 | Vacuum connector | ABA1/2" | 10+8+8 | |
| 5 | Whirling vacuum connector | Ø50mm | 4 | |
| 6 | Water connector | ABA1/2" | 12+12+10 | |
| 7 | The diameter of general water inlet pipe | Ø50mm | 1 | |
| 8 | The structure type of calibratoin table | Whole type | ||
| 9 | Up-down movement structure type of calibration table | clamping frame up-down movement | ||
| 10 | Structure type of clamping frame | "Pallet" type | ||
| 11 | Horizontal adjusting scope of clamping frame | 10mm | ||

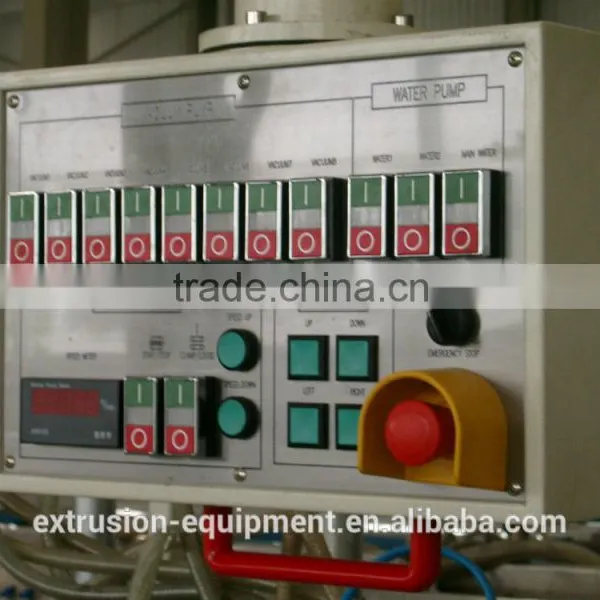

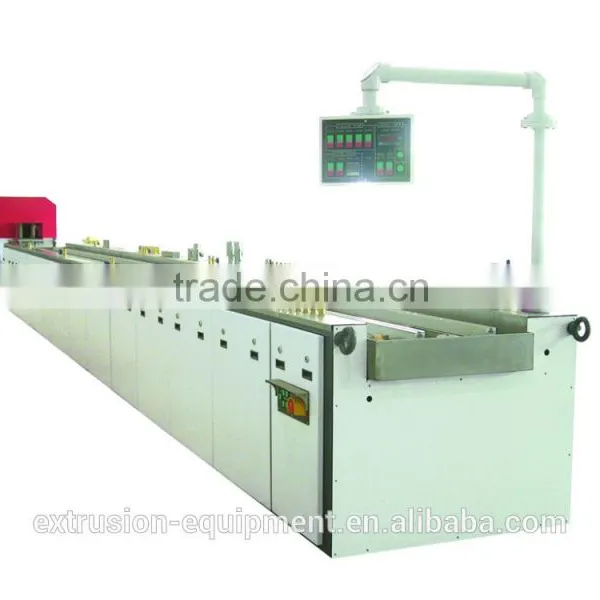

| 12 | Operation manner of control box | Cantilever type / Fold away | ||
| 13 | Structure type of water tank and water-air separation tank | Whole type | ||
| 14 | Extruder center height | 1100mm | ||
| 15 | Calibration table length × width | 6000 mm×1100 mm | ||
| 16 | Height adjusting scope | 135mm | ||
| 17 | Adjusting scope of axial movement | 0~800mm | ||
| 18 | Ajusting scope and requirement of lateral movement | 30mm | Manual | |
| 19 | Center distance between rails | 320mm | ||
| 20 | 2 Water filter to change | 1 set | ||
The package:
haul-off machine/calibration table/cutting device
Different types of downstream equipment:

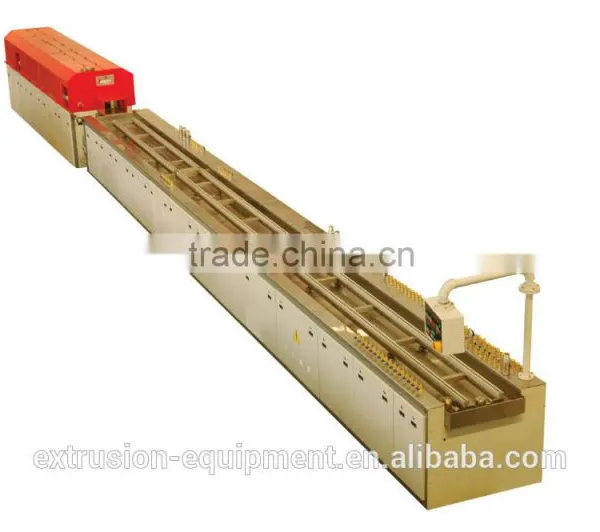

| calibration table | single downstream | double downstream | ||||||
| HQSS6M | HQSS8M | HQSS11M | HQSS14M | HQSS8M | HQSS11M | HQSS14M | ||
| Vacuum Pump | 1 | 2 | 3 | 4 | 4 | 6 | 8 | |
| Vacuum Cyclone System | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Frequency Converter | 2 | 3 | 4 | 5 | 6 | 8 | 10 | |
| Up-Down Adjustment Scope | 900-1000 | 900-1000 | ||||||
| Extrusion Center Height | 1050-1150 | 1050-1150 | ||||||
| Axial Adjustment Scope | 800 | 800 | ||||||
| Horizontal Adjustment Scope | ±5 | ±5 | ||||||
| Lateral Adjustment Scope | ±15 | ±15 | ||||||
| Length(mm) | 6000 | 8000 | 11000 | 14000 | 8000 | 11000 | 14000 | |
| Width(mm) | 1100 | 1400 | ||||||
| Distance Between Rails | 320 | 320+500 | ||||||
Exhibitions attended:
Welcome to our company!
Best new design profiles haul-off 11m calibration table
