TQHB-3000 Hydrogenation nitrogen purification device 3000Nm3/h
- 1000 Unit / Units per Month
- SHENZHEN Or Guangzhou
- Credit Card PayPal
Product Details
| Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | TQYQ |
| Model Number: | TQHB-3000 | Usage: | Other, Purification system | Production Rate: | 100% |
| Voltage: | 220v/380v/50-60hz | Power(W): | 0.2KW | Weight: | based on model |
| Dimension(L*W*H): | 1200*920mm | Certification: | ISO CE | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
TQHA and TQHB Seris hydrogenation carried nitrogen purification device high quality and low price
professinal manufactory over 15 year experinces
low running coat ,low pressure drop and steady dew point.microprocessor control.,hmi touch screen easy operate.
carbon carried nitrogen purification device best price with high quality
Hydrogenation carried nitrogen purification device professinal manufacturer lowest price
Brief introduce:
Under the catalo’s working, the trance oxygen of nitrogen is react with the hydrogen 2H2+O2=2H2O then go though the dry system to got the deep dehydration ,at last , got the high purity nitrogen.
Our company TQHA types are not dehydrogenation that fit with which place can used the hydrogen.
Our company TGQHB types are dehydrogenation that fit with the heat finished,Chemical ,glass and metal industry.
Our company TQHA Configuration:Automation adding hydrogen,Catalytic deoxygenating olers.dryers.adsorption dryers.ultra filter.finished nitrogen gas tank.
Our company GQHB Configuration:Subjoin a dehydrogenation.
Features
1.Automatic is control the mete of hydrogen safety and high automatic.
2.Efficient catalyst is so advanced technology and good stability
3.It’s not necessary to heat because deoxidation in normal temperature that the reason of low energy consumption.
4.High quality control element is used to lengthen the life of machine.
5.Automatic line locked to emission air reach to fault alarm.
Technical parameters
Our company TQHA Type hydrogenation purification device
N2 output capacity:10-3000Nm3/h
N2 purity: ≥99.9995%
H2 content: 800ppm-5%(adjustable)
Pressure Reduce :0.1Mpa
O2 content:≤2PPm
Dew point: ≤-60ºC
Our company TQHB Type hydrogenation purification device
N2 output capacity:10-3000Nm3/h
N2 purity: ≥99.9995%
H2 content: ≤3PPm
Pressure Reduce :0.1Mpa
O2 content:≤2PPm
Dew point: ≤-60ºC
| TQHA Hydrogenation carried nitrogen purification device | ||||||
| Model No. | Raw material nitrogen(Nm³/H) | After purification N2(Nm³/H) | Hydrogenation consumption(Nm³/h) | Cooling water consumption(T/h) | Installed power(KW) | Dimension L*W |
| TQHA-10 | 11 | 10 | 0.11 | 1.0 | 0.2 | 1200*920 |
| TQHA-20 | 22 | 20 | 0.22 | 1.0 | 0.3 | 1250*980 |
| TQHA-30 | 33 | 30 | 0.33 | 2.0 | 0.4 | 1280*1100 |
| TQHA-50 | 55 | 50 | 0.55 | 2.0 | 0.5 | 1350*1150 |
| TQHA-80 | 88 | 80 | 0.88 | 3.0 | 1.2 | 1450*1200 |
| TQHA-100 | 110 | 100 | 1.10 | 4.0 | 1.5 | 1480*1250 |
| TQHA-150 | 165 | 150 | 1.65 | 4.5 | 1.8 | 1550*1300 |
| TQHA-200 | 220 | 200 | 2.2 | 5.0 | 2.2 | 1650*1350 |
| TQHA-400 | 440 | 400 | 4.4 | 7.0 | 4.5 | 1800*1500 |
| TQHA-500 | 550 | 500 | 5.5 | 8.0 | 5.5 | 1900*1550 |
| TQHA-800 | 880 | 800 | 8.8 | 10.0 | 7.5 | 2100*1600 |
| TQHA-1000 | 1100 | 1000 | 11.0 | 13.0 | 8.5 | 2150*1650 |
| TQHA-2000 | 2200 | 2000 | 22.0 | 16.0 | 12 | 2300*1850 |
| TQHA-3000 | 3300 | 3000 | 33.0 | 22.0 | 15 | 2900*2450 |
| TQHB Hydrogenation carried nitrogen purification device | ||||||
| Model No. | Raw material nitrogen(Nm³/H) | After purification N2(Nm³/H) | Hydrogenation consumption(Nm³/h) | Cooling water consumption(T/h) | Installed power(KW) | Dimension L*W |
| TQHB-10 | 11 | 10 | 0.11 | 2.0 | 0.5 | 1200*950 |
| TQHB-20 | 22 | 20 | 0.22 | 3.0 | 1.0 | 1300*1000 |
| TQHB-30 | 33 | 30 | 0.33 | 4.0 | 1.5 | 1350*1150 |
| TQHB-50 | 55 | 50 | 0.55 | 5.0 | 2.0 | 1400*1200 |
| TQHB-80 | 88 | 80 | 0.88 | 8.0 | 4.0 | 1550*1300 |
| TQHB-100 | 110 | 100 | 1.10 | 9.0 | 5.0 | 1580*1350 |
| TQHB-150 | 165 | 150 | 1.65 | 12.0 | 6.0 | 1650*1400 |
| TQHB-200 | 220 | 200 | 2.2 | 16.0 | 8.0 | 1750*1450 |
| TQHB-400 | 440 | 400 | 4.4 | 30.0 | 10.0 | 1950*1600 |
| TQHB-500 | 550 | 500 | 5.5 | 40.0 | 12.0 | 2100*1650 |
| TQHB-800 | 880 | 800 | 8.8 | 60.0 | 16.0 | 2300*1700 |
| TQHB-1000 | 1100 | 1000 | 11.0 | 80.0 | 20.0 | 2450*1850 |
| TQHB-2000 | 2200 | 2000 | 22.0 | 120.0 | 35.0 | 2600*1950 |
| TQHB-3000 | 3300 | 3000 | 33.0 | 150.0 | 45.0 | 3100*2650 |

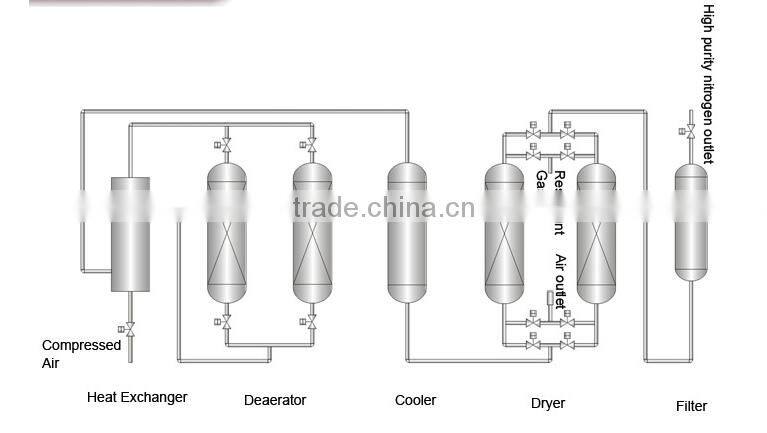

Drawing

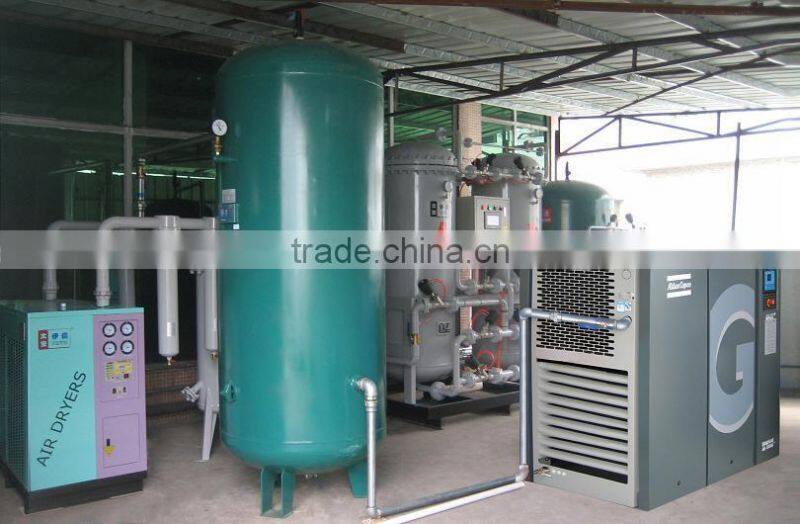

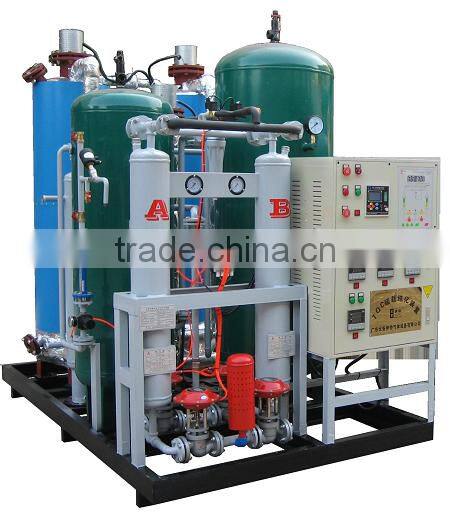

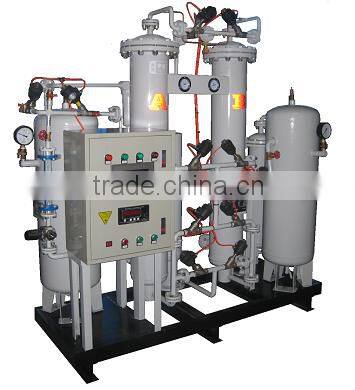

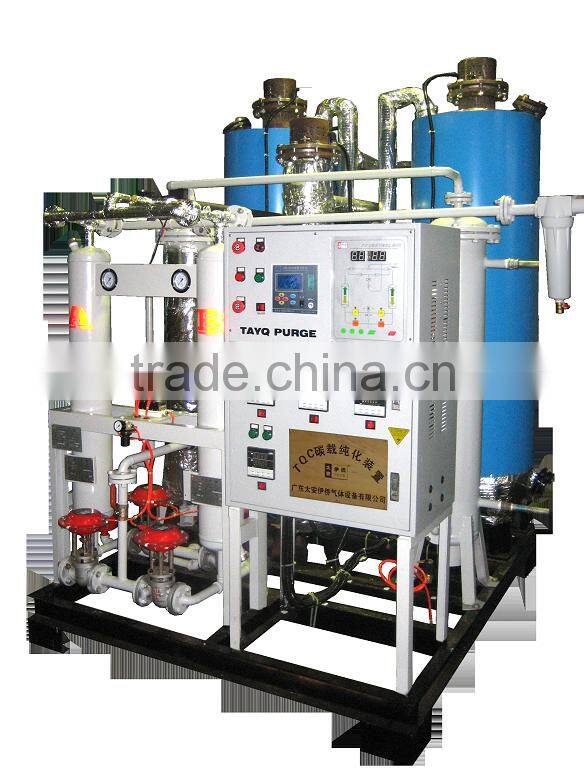

Pictures
