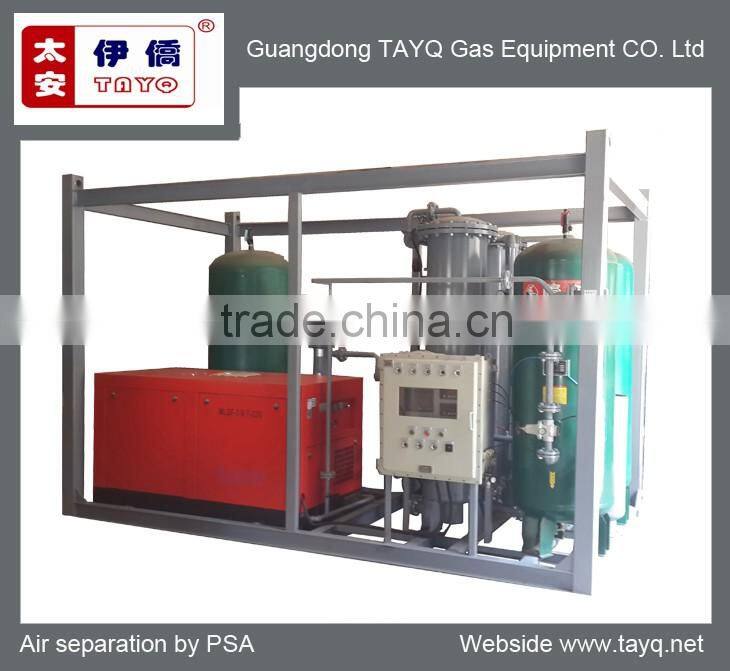

CE Approved Nitrogen Gas Generator for Tire Inflation

FOB Price

US$ 100 - 1,000 / Unit

1 Unit(Min. Order)

Port Shenzhen or Guangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	TAYQ	Model Number	TQN400-99
Usage	Nitrogen	Production Rate	100%
Voltage	220V/380V	Power(W)	0.1KW
Weight	500kg	Dimension(LWH)	3750*2350mm
Certification	ISO CE	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

TQN Seris psa nitrogen generator high quality and low price

professinal manufactory over 15 year experinces
low running coat ,low pressure drop and steady dew point.microprocessor control.,hmi touch screen easy operate.

Psa nitrogen generator professinal manufacturer lowest price

PSA Principle:

PSA technical(Pressure Swing Adsorption,PSA for short) :it’s a kind of afvanced gas separation technology,based on physical adsorption of gas molecule on the internal surface of adsorbent(porous solid substances),using adsorbents in the same pressure easy to absorb the high boiling point gas,difficult to absorb low boiling point gas.amd under high pressure adsorption amount of absorbed gas increases,under low pressure adsorption of absorbed gas to reduce the features to achieve gas separation.This process under pressure adsorption of impurities,under reduced pressure desorption of impurities,make the adsorbent regeneration,is the PSA cycle .

Features

1. Specific pressure protection measure of molecular sieve,molecular sieve is difficult of pulverization,long sieve life.

2. Low energy consumption,the product of high nitrogen purity.

3..Reasonable internal componets,air distribution uniformity,reduce air high-speed impact.

4.The whole equipment of high degree of automation

5.Multifunctional monitoring system,realize gas,purity,pressure LCD online display,equipment failure warning,maintenance tips,full;y grasp,equipment running states,

6.can ben fully integrated skid mounted design,easy installation and rapid debugging,

7.Optional oxgen flow,remote monitoring system etc,

Technical parameters

1.Nitrogen yield:3-3000Nm3/h

2.Nitrogen purity:95%-99.999%(national standard non-oxygen ontent)

3.Nitrogen outlet pressure:0.1-0.7Mpa(adjustable)

4.Nitrogen outlet dew point:<-45°C

TQN-97 netrogen generator purity 97%
model	capacity(Nm3/h)	Air consumption(Nm3/min)	Inlet connection(mm)	Outle tconnction(mm)	Buffer tank(m3)	Dimension(L*W)mm
TQN10-97	10	0.33	15	15	0.1	1330×750
TQN20-97	20	0.67	25	15	0.2	1500×800
TQN30-97	30	1.00	25	15	0.2	1650×850
TQN40-97	40	1.32	25	25	0.2	1800×1000
TQN50-97	50	1.65	32	25	0.3	2000×1050
TQN60-97	60	1.98	32	25	0.3	2100×1100
TQN80-97	80	2.64	40	25	0.6	2250×1200
TQN100-97	100	3.30	40	32	0.6	2400×1300
TQN150-97	150	4.95	50	32	1.0	2900×1650
TQN200-97	200	6.60	50	32	1.0	3050×1800
TQN300-97	300	10.0	65	40	1.5	3300×2050
TQN400-97	400	13.2	65	40	2.0	3450×2150
TQN500-97	500	16.5	80	50	2.0	3800×2300
TQN600-97	600	19.8	80	50	2.0	4000×2400
TQN800-97	800	26.4	100	65	3.0	4250×2450
TQN1000-97	1000	33.0	100	65	4.0	4450×2600
TQN1500-97	1500	49.5	125	80	5.0	4700×2800
TQN2000-97	2000	66.0	150	100	6.0	5000×3000
TQN2500-97	2500	82.5	200	100	8.0	5250×3250
Note: listed in the above table data to 0.8 mpa pressure (table) raw material of compressed air, the environment temperature below 40 ℃. A pressure and 80% relative humidity for design reference.

TQN-99 netrogen generator purity 99%
model	capacity(Nm3/h)	Air consumption(Nm3/min)	Inlet connection(mm)	Outle tconnction(mm)	Buffer tank(m3)	Dimension(L*W)mm
TQN10-99	10	0.38	15	15	0.1	1430×800
TQN20-99	20	0.75	25	15	0.2	1650×850
TQN30-99	30	1.14	25	15	0.2	1750×900
TQN40-99	40	1.52	25	25	0.3	1900×1050
TQN50-99	50	1.90	32	25	0.3	2150×1100
TQN60-99	60	2.28	32	25	0.6	2200×1160
TQN80-99	80	3.04	40	25	0.6	2350×1300
TQN100-99	100	3.80	40	32	0.6	2600×1350
TQN150-99	150	5.70	50	32	1.0	3200×1450
TQN200-99	200	7.60	50	32	1.0	3360×1600
TQN300-99	300	11.4	65	40	1.5	3600×2250
TQN400-99	400	15.2	65	40	2.0	3750×2350
TQN500-99	500	19.0	80	50	2.0	4100×2380
TQN600-99	600	22.0	80	50	2.0	4250×2450
TQN800-99	800	30.4	100	65	3.0	4450×2550
TQN1000-99	1000	38.0	100	65	4.0	5000×2750
TQN1500-99	1500	57.0	125	80	5.0	5100×3000
TQN2000-99	2000	76.0	150	100	6.0	5300×3250
TQN2500-99	2500	95	200	100	8.0	5650×3500
Note: listed in the above table data to 0.8 mpa pressure (table) raw material of compressed air, the environment temperature below 40 ℃. A pressure and 80% relative humidity for design reference.

TQN-295 netrogen generator purity 99.5%
model	capacity(Nm3/h)	Air consumption(Nm3/min)	Inlet connection(mm)	Outle tconnction(mm)	Buffer tank(m3)	Dimension(L*W)mm
TQN10-295	10	0.43	15	15	0.1	1450×830
TQN20-295	20	0.85	25	15	0.2	1680×860
TQN30-295	30	1.28	25	15	0.2	1800×920
TQN40-295	40	1.72	25	25	0.3	1950×1100
TQN50-295	50	2.15	32	25	0.3	2200×1200
TQN60-295	60	2.58	32	25	0.6	2300×1200
TQN80-295	80	3.44	40	25	0.6	2380×1300
TQN100-295	100	4.28	40	32	0.6	2700×1450
TQN150-295	150	6.45	50	32	1.0	3050×1550
TQN200-295	200	8.56	50	32	1.5	3450×1800
TQN300-295	300	12.9	65	40	2.0	3700×2050
TQN400-295	400	17.5	65	40	2.5	3850×2450
TQN500-295	500	21.8	80	50	3.0	4180×2550
TQN600-295	600	26.0	80	50	3.0	4350×2650
TQN800-295	800	34.6	100	65	4.0	4650×2750
TQN1000-295	1000	43.5	100	65	6.0	5150×2850
TQN1500-295	1500	64.8	125	80	8.0	5200×3200
TQN2000-295	2000	86.0	150	100	8.0	5500×3500
TQN2500-295	2500	108.0	200	100	10.0	5800×3800
Note: listed in the above table data to 0.8 mpa pressure (table) raw material of compressed air, the environment temperature below 40 ℃. A pressure and 80% relative humidity for design reference.

Drawing

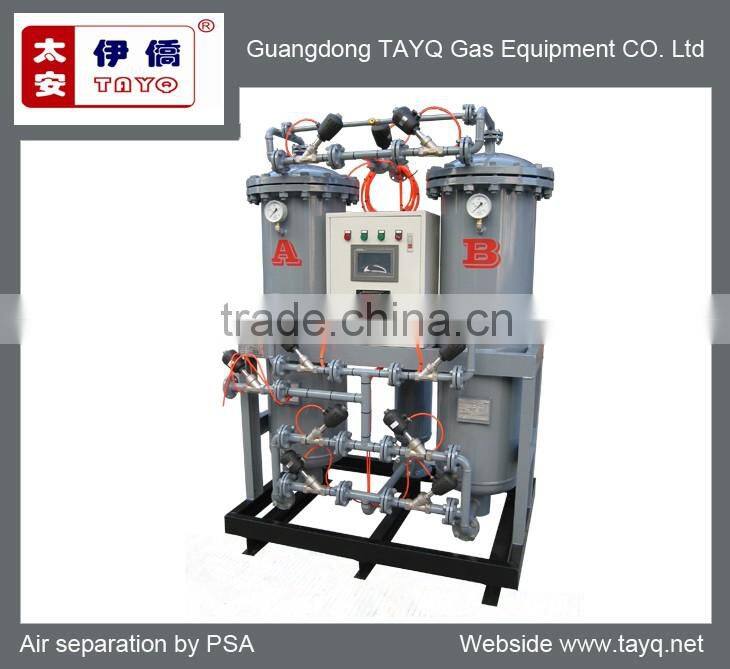

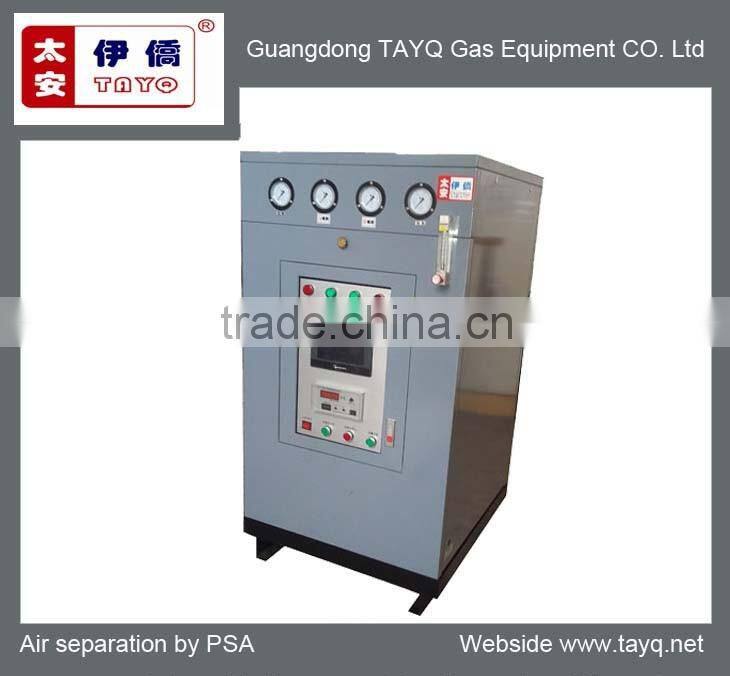

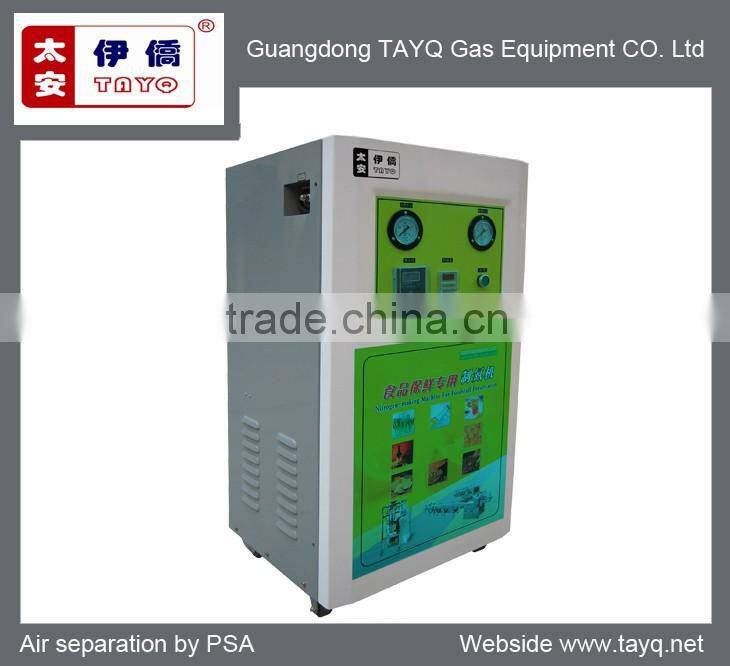

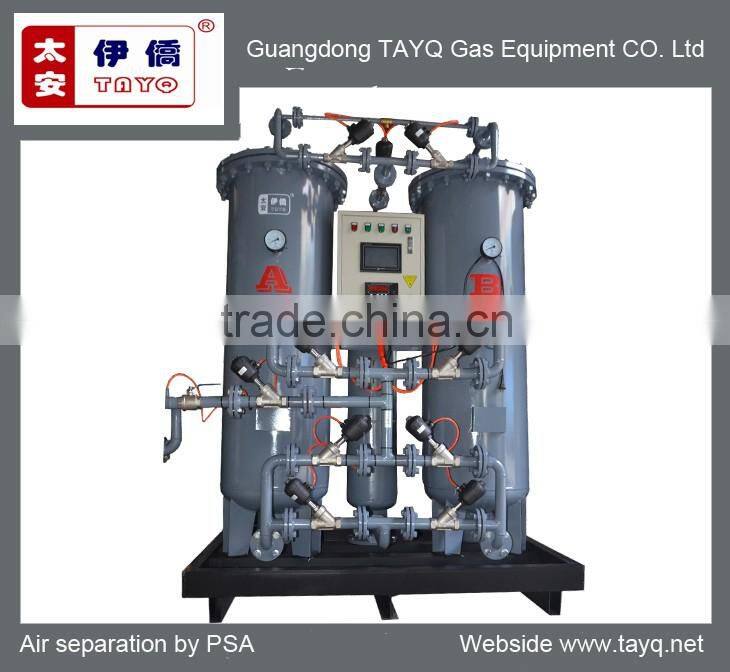

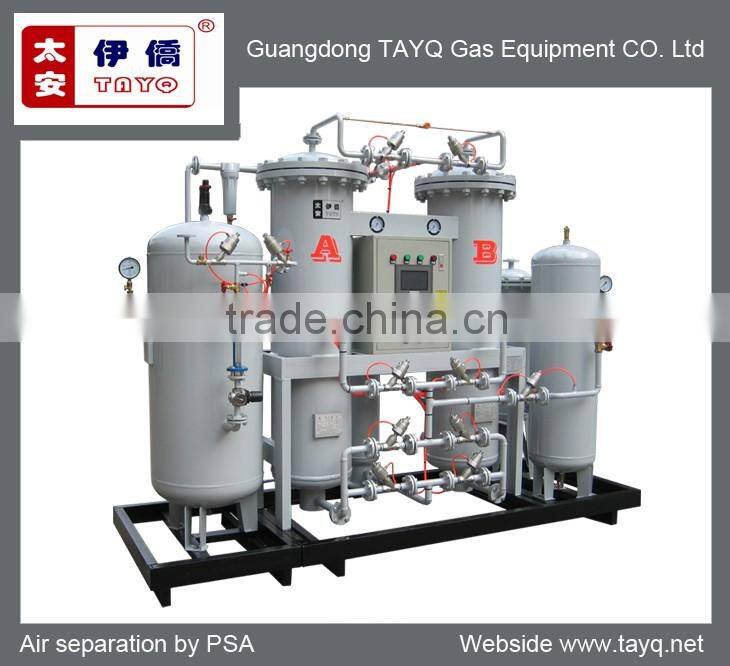

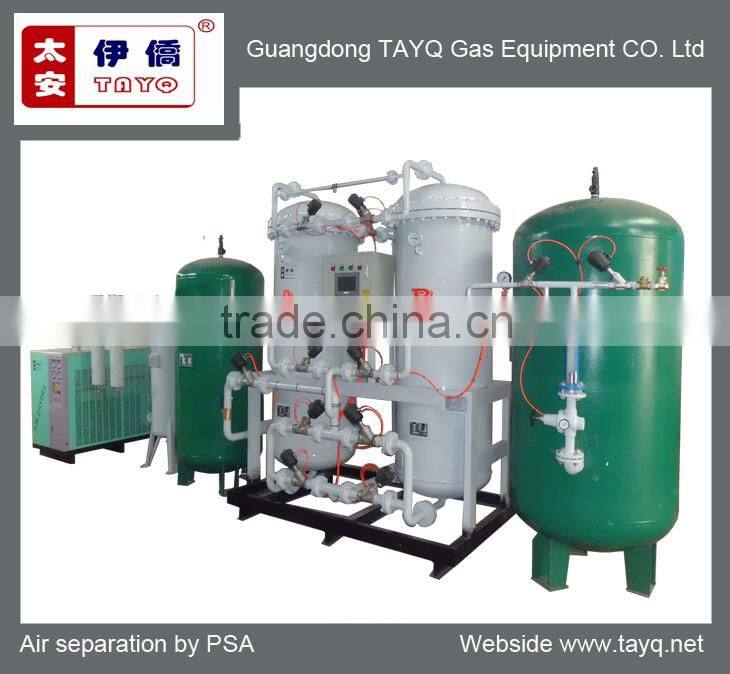

Pictures
