Help CenterTungsten/tin Separation Machine Dry Magnetic Separator With 14000 Gauss
Related Products
-
3pc Altenate Dry Magnetic Separator for Coltan/tungsten/tin/tatatile OreUS$ 12,000 - 16,000MOQ: 1 Set -
Tanb Separation Equipment High Intensity Dry Magnetic SeparatorUS$ 12,000 - 16,000MOQ: 1 Set
-
High Intensity Dry Magnetic Separator 3pc Disc Belt Type Magnetic Separation MachineUS$ 12,000 - 16,000MOQ: 1 Set
-
3pcs Disc Dry Magnetic Separation Equipment for Alluvial Coltan MiningUS$ 12,000 - 16,000MOQ: 1 Set
-
Coltan Ore Separation Machine Belt Type Dry Magnetic Separator With 3pcs DiscUS$ 12,000 - 16,000MOQ: 1 Set
Jiangxi Walker Machinery Company is Sub-company of Jiangxi Shicheng Mine Machinery factory (JXSC), with more than 29 years history , we are one of the leading professional manufactrurer of mining equipments in China. We have got CE/SGS/ISO certificate for our main product to guarantee equipments quality.
Our advantages are providing professional minerals process solution, complete set equipments and after-sale engineer installation service for Alluvial Gold washing plant/alluvial tin ore/tungsten ore/iron sand ore/ hematite ore/chrome ore/tantalum-niobium ore/coltan ore, as well as many rock ores.
Our Main product includes: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, magnetic separator, flotation machine, jaw crusher, ball mill, laboratory mining equipments, as well as many accessories machine: belt conveyor, sand pump, slurry pump, mixing tank, ect.
main market is in Africa, South America, Southeast Asia, Asia, ect. Our cooperated customers cover Ghana, Sudan, Uganda, Nigeria, Cameroon, Madagascan, Malaysia, Indonesia, Philippines, Russia, Mongolia, Mexico, Brazil, Chile, Canada, Australia, Iran, ect.
Application Area of tungsten/tin separation machine dry magnetic separator :
The three disc dry magnetic separator is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.
4 varieties of products can be obtained by separation of this device.
Main Parts of tungsten/tin separation machine dry magnetic separator :
Mainly include two parts: The main device and Electric controller carbinet.
1.Magnetic separator-feeding hopper
2.Magnetic separator-feeding cylinder
3.Magnetic separator-receiving hopper
4.Magnetic Magnetic Separator-sieve trough
5.Magnetic separator-vibrating trough
6.Excitation control cabinet
7.Magnetic separator-Disc
8.Magnetic separator-Reed disk
The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance
Features of tungsten/tin separation machine dry magnetic separator :
1. Small capacity (100-800kg/h depend on the disk diameter)
2. With 3 pcs disk
3. Each disk is with Adjustable magnetic intensity from 1000-20000 Guass, can adjust according to minerals magetic intensity.
4. 4 different minerals can be obtained at the same time by useing this magnetic divice.
5. High intensity with dry processing
6. Low power consuption.
7. The moisture of feeding material shall be under 1%.
Specifications of tungsten/tin separation machine dry magnetic separator :

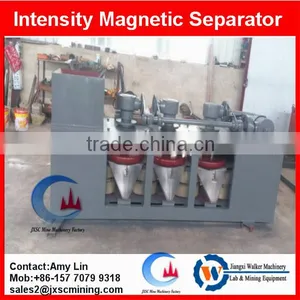

Detail pictures of tungsten/tin separation machine dry magnetic separator :
The belt type three disc dry magnetic separator/ high intensity dry magnetic separator is applied in the alluvial coltan processing plant:
We sincerely provide below services:
-Mining project processing consulting.
-Design and draw flowchart.
-Do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory.
- Providing whole processing plant equipments.
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training worker.
Welcome to visit us, we are located in Ganzhou city, Jiangxi Province, Very near from Guangzhou, Shenzhen,Shanghai, only takes about ONE HOUR by air, also can by train very conveniently! We will pick you up at air port or train station
If you are interested in our products, please feel freely to contact us:
